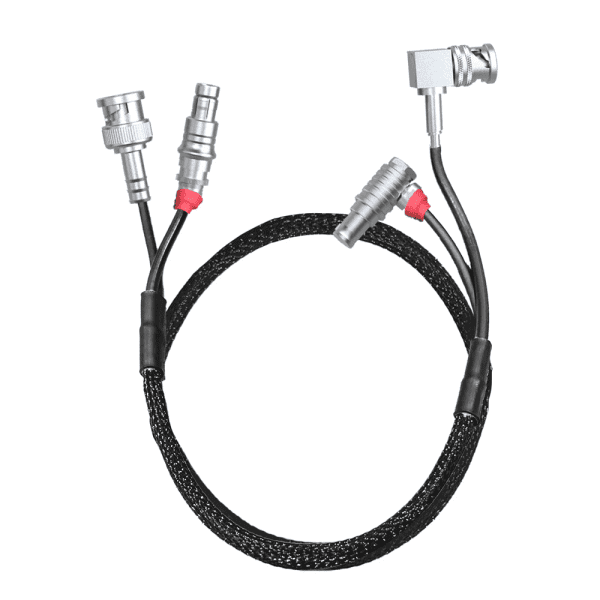

Kinefinity SDI e-Viewfinder Cord (RS, 70cm)

Properties:

The Kinefinity SDI e-Viewfinder Cord (RS, 70cm) is specifically designed for the Kinefinity EAGLE SDI e-Viewfinder and offers a reliable and space-saving solution for signal transmission and power supply. With a length of 70 cm, this high-quality cable is ideal for use with medium to large-sized camera systems. The robust 5-pin power and video cable transmits the SDI signal via a standard BNC connector while simultaneously powering the EAGLE e-viewfinder via an ARRI 3-pin Fischer R/S port. It also enables run/stop recording directly through the viewfinder, significantly streamlining the camera workflow.

• Specifically designed for the Kinefinity EAGLE SDI e-Viewfinder
• SDI video transmission via BNC and power via ARRI 3-pin R/S
• Enables run/stop function for recording control
• Length: 70 cm – ideal for professional setups
• Compatible with cameras such as ARRI Alexa, SONY Venice, and RED V-Raptor XL

Technical Specifications:

• Product Name: Kinefinity SDI e-Viewfinder Cord (RS, 70cm)
• SKU: K611-002-02
• Cable Length: 70 cm
• Cable Type: Combined Power & SDI Video Cable
• Connectors: SDI Video – BNC (standard SDI transmission); Power & Trigger – 5-pin (viewfinder side); Power & Run/Stop – ARRI 3-pin Fischer R/S (camera side)
• Signal Transmission: SDI video signal, power supply (12V via R/S port), run/stop trigger signal
• Compatibility: Kinefinity EAGLE SDI e-Viewfinder, cameras with ARRI 3-pin R/S port, e.g. SONY Venice
• Function: Video and power through one cable; enables start/stop control via viewfinder

Scope of Delivery:

• 1x Kinefinity SDI e-Viewfinder Cord (RS, 70cm)
