Properties:

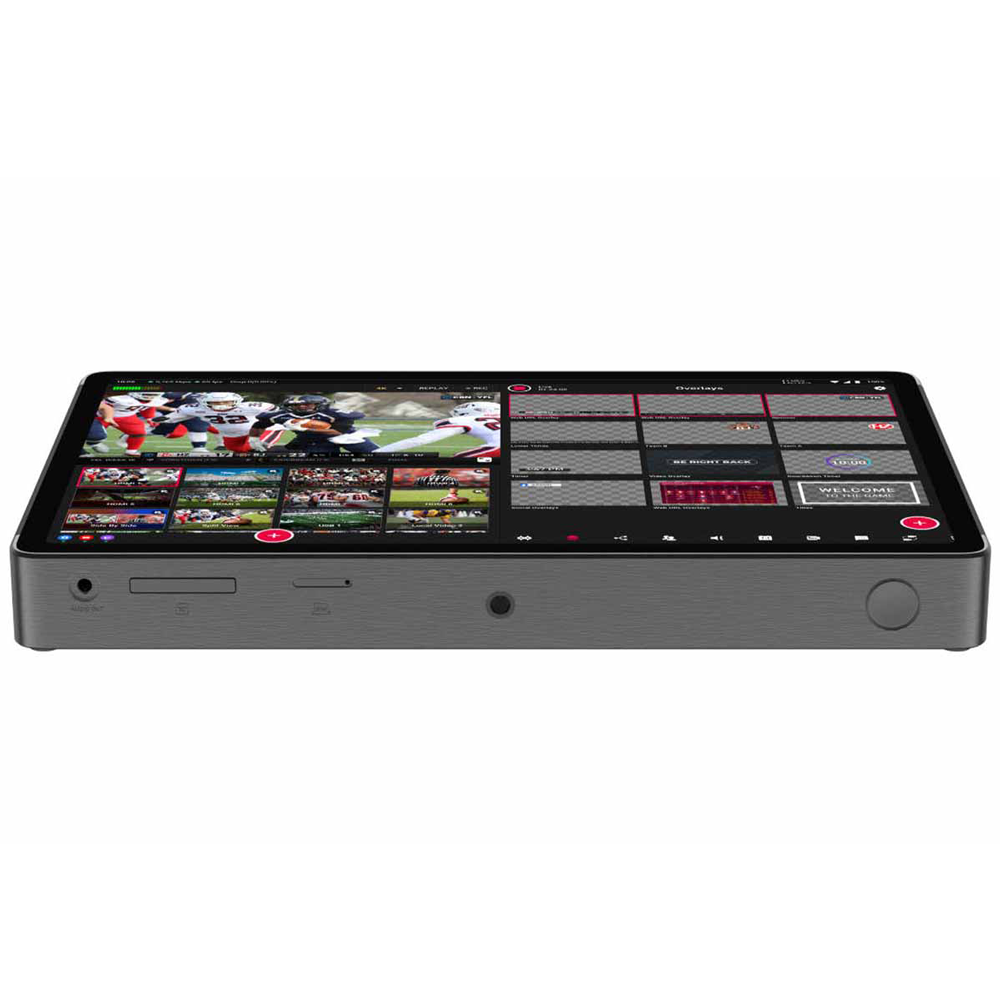

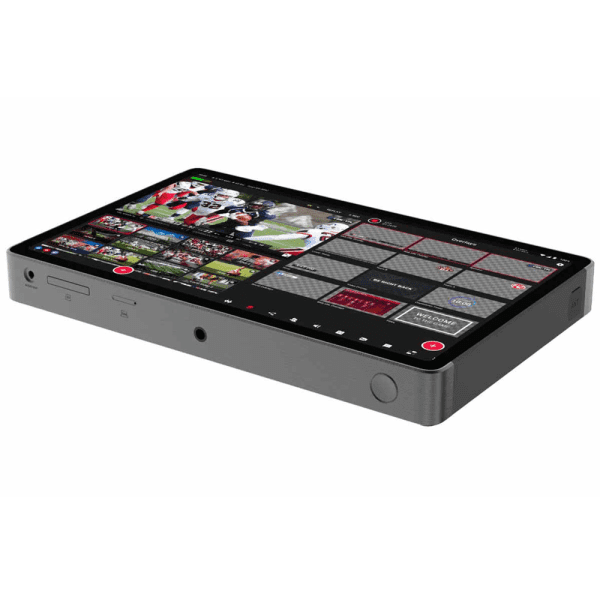

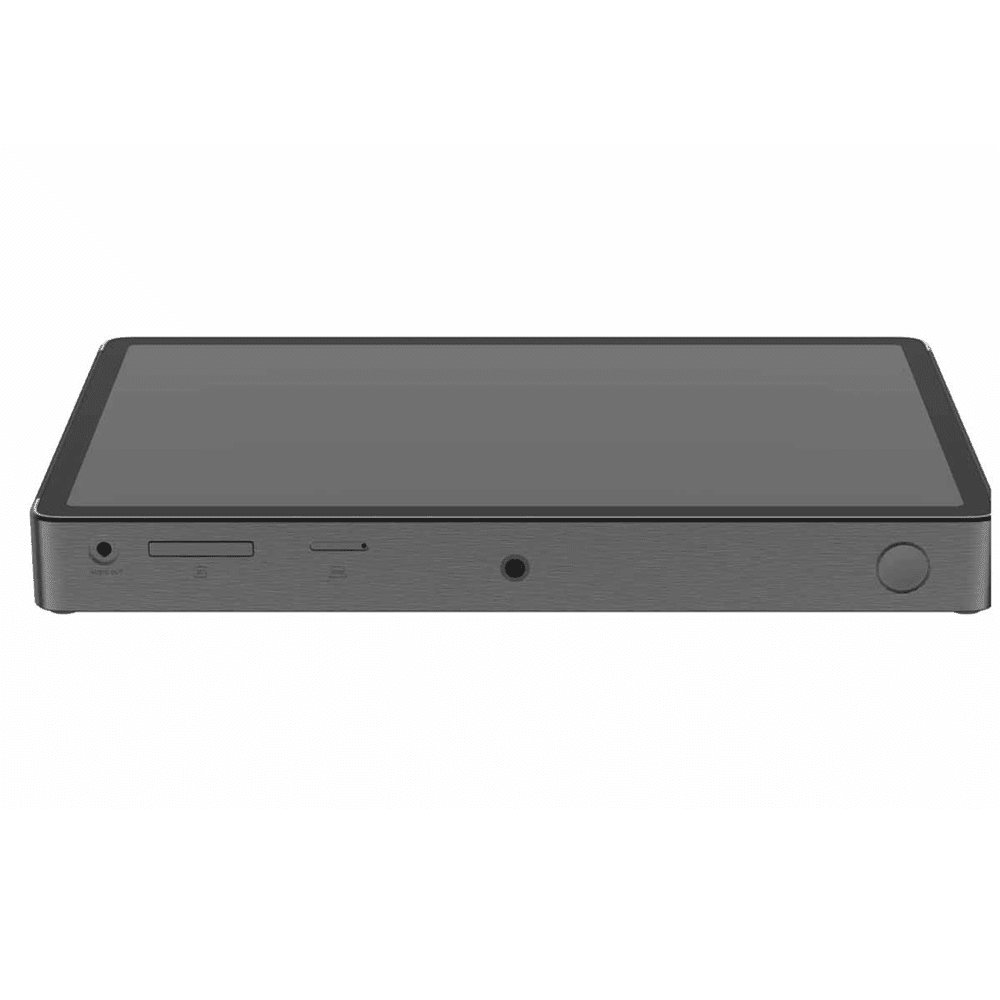

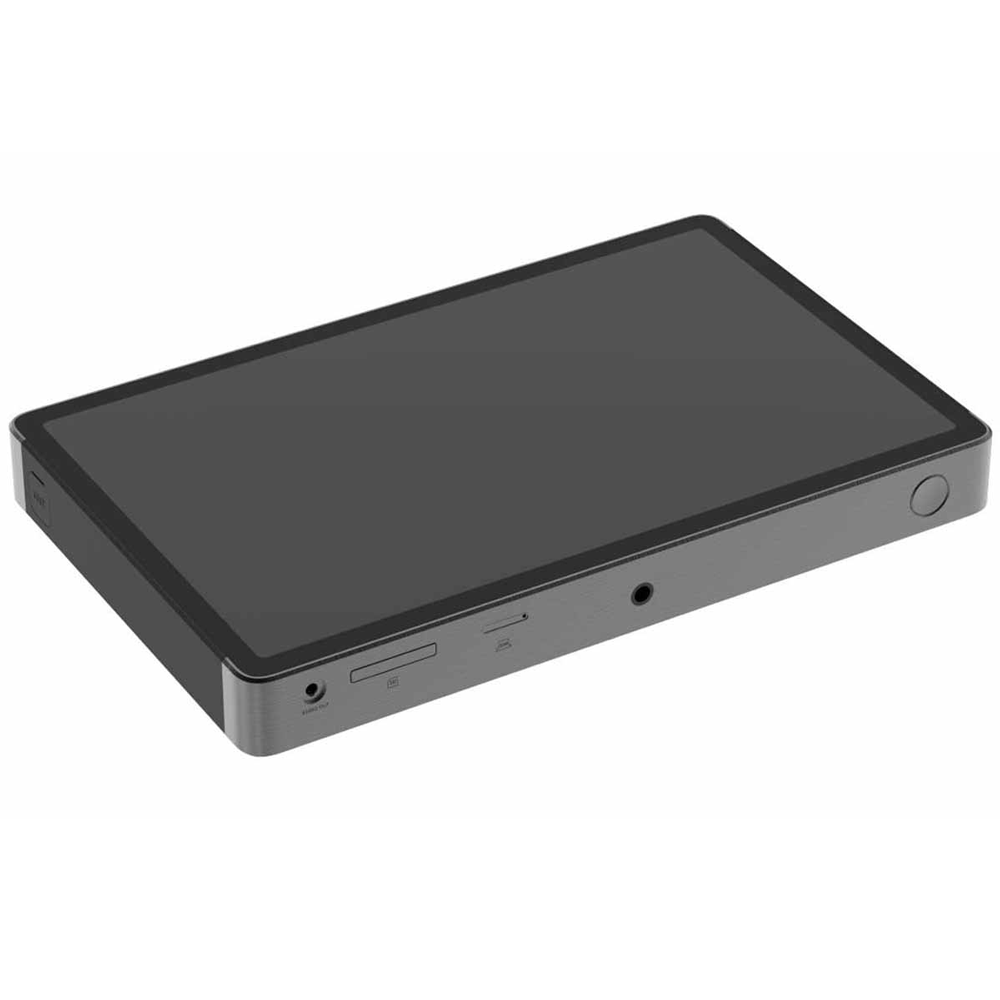

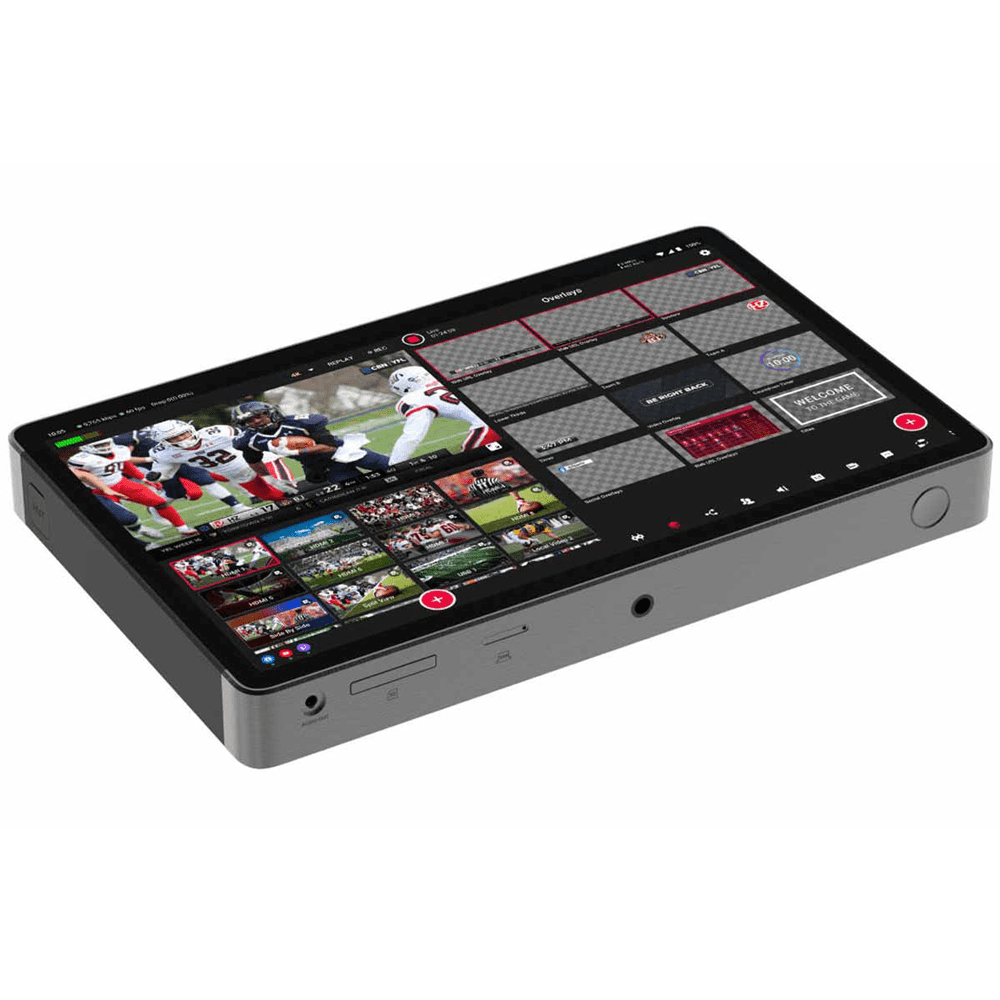

The YoloLiv YoloBox Extreme is an advanced all-in-one solution for professional livestreams and video productions. It combines encoder, recorder, monitor, and video switcher into one compact, portable device – perfectly suited for mobile use at live events, conferences, sports broadcasts, worship services, or content creation. With up to eight HDMI inputs, two freely assignable HDMI outputs, and built-in ISO recording, the YoloBox Extreme offers maximum flexibility for multi-camera productions. It supports true 4K livestreaming and allows simultaneous streaming via Ethernet, Wi-Fi, 4G LTE, or USB dongles. Thanks to integrated network bonding, a stable internet connection can be maintained by combining multiple networks – ideal for reliable broadcasting at changing locations. The large 11.2-inch touchscreen with 2.5K resolution and 120 Hz refresh rate ensures clear and smooth preview. Additional professional features such as MultiCam Instant Replay, NDI support (for up to 8 sources), and integration of H.264/H.265 formats make the YoloBox Extreme a powerful control center for modern livestreaming workflows.

8 HDMI inputs with integrated scaler, supports up to 4K60
2 HDMI outputs, freely configurable for program output or multiview in 4K
ISO recording: Simultaneous recording of up to 4x 4K30 or 6x 1080P60 sources
True 4K streaming for high-quality, crisp broadcasts
Flexible network options: Ethernet, Wi-Fi, 4G LTE, and USB dongles (SIM cards/dongles not included)
Network bonding: Combines up to 3 SIM cards (via USB) + Wi-Fi + Ethernet for stable bandwidth (cloud service available separately from YoloLiv)
NDI support: License included, up to 8 sources possible

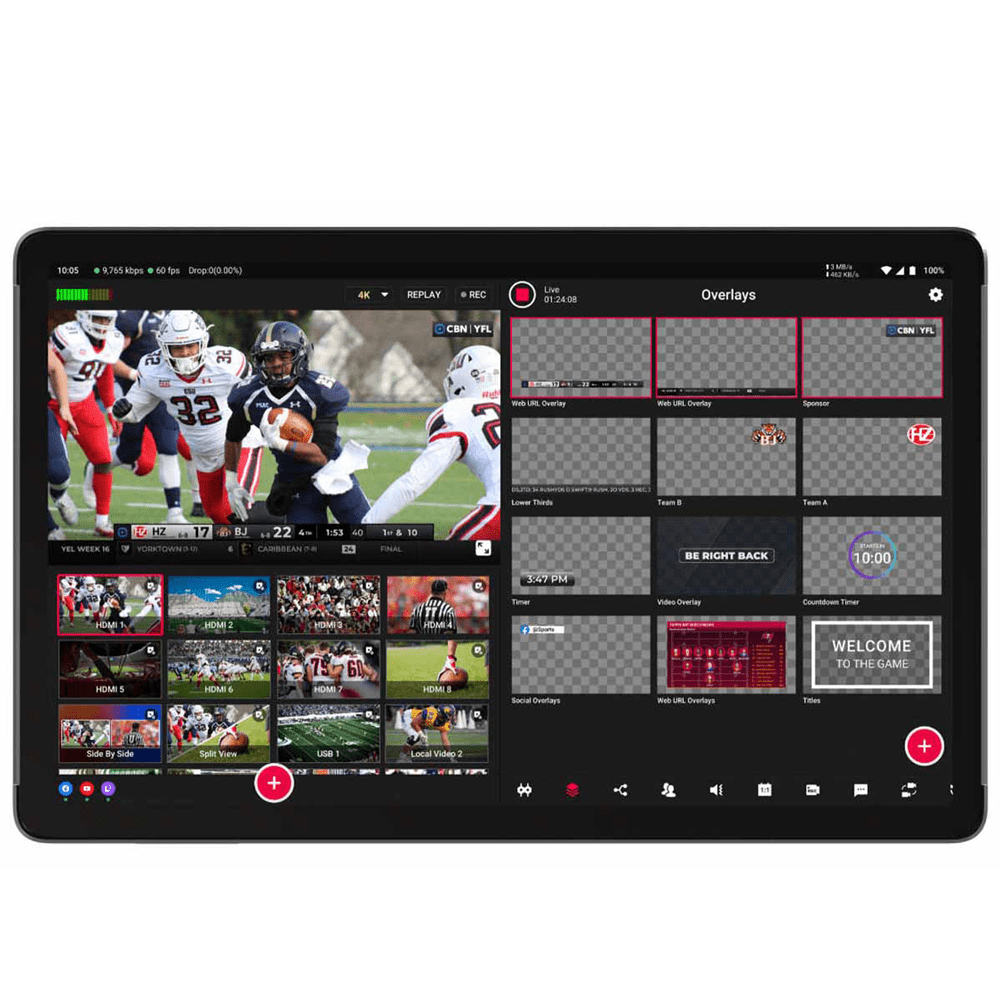

Large 11.2-inch touchscreen with 2.5K resolution and 120Hz refresh rate
MultiCam Instant Replay: Supports up to 6 cameras at 1080P60 or 4 cameras at 4K30
External antenna: Range up to 90 meters for stable wireless connection
Up to 10 hours battery life for extended live productions

Scope of Delivery:

1× YoloBox Extreme includes:
- 2x Antennas
- 1x Power Adapter
- 1x USB-C to USB-C Cable (for power supply)
- 1x USB-C to USB-A Cable (for laptop)
- 1x Hotshoe Adapter with Joint
- 1x Screen Protector

Technical Specifications:

Inputs and Outputs

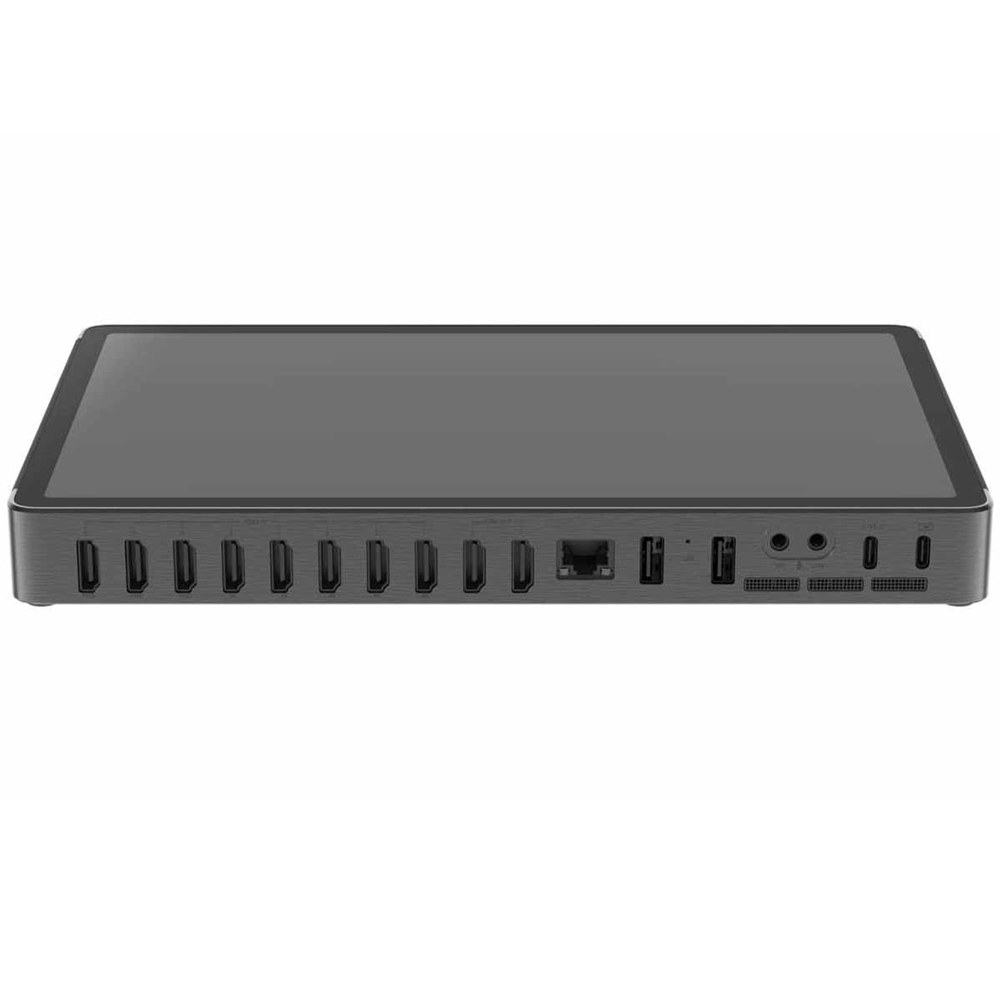

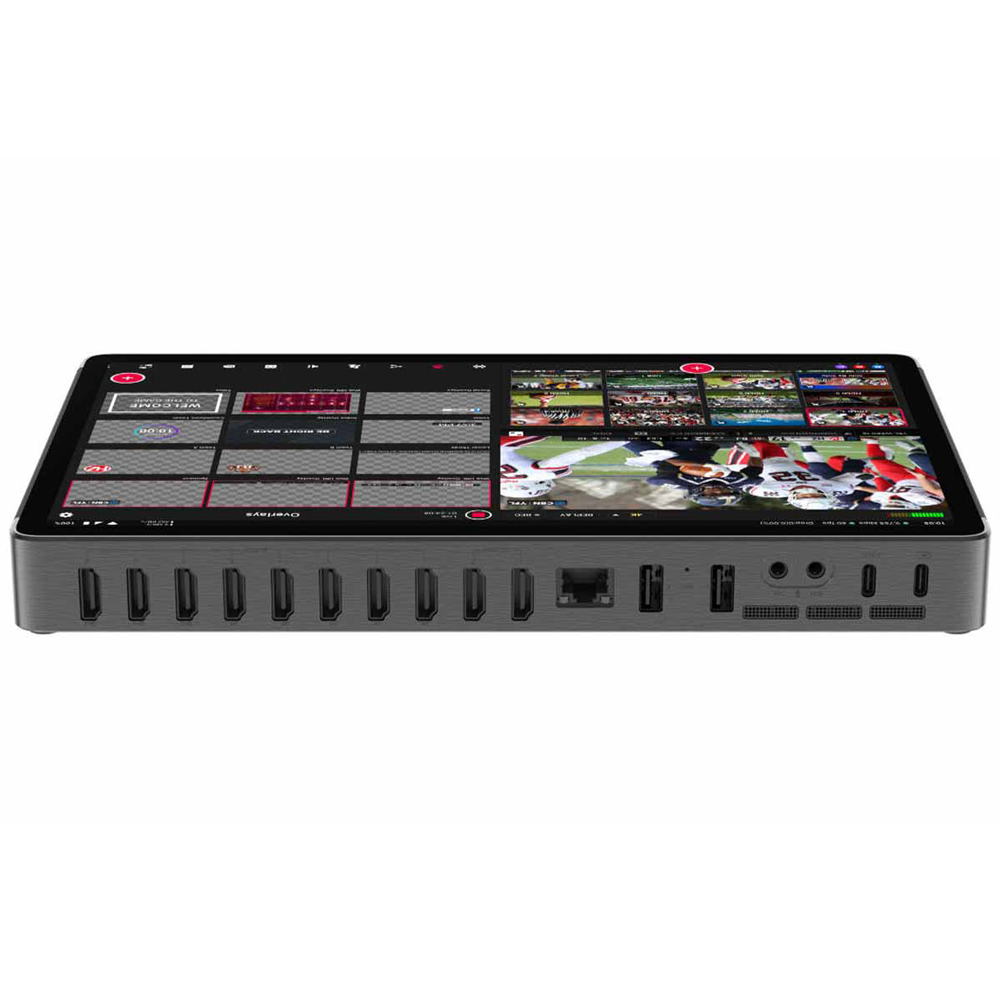

Inputs	HDMI Inputs (8x): Supports resolutions up to 4K60, with built-in video scaler for flexible source input USB Input: Compatible with USB cameras or additional video sources SD Card Slot: Allows playback of pre-recorded videos or overlays Audio Input (3.5mm jack): For external microphones or audio sources Network Input (RJ45): For wired internet connections, ideal for stable streams SIM Card Slot: Enables mobile streaming via LTE networks Wi-Fi Support: For wireless network connections and NDI streams NDI Input: Wireless video transmission with low latency for up to 8 NDI sources
Outputs	HDMI Outputs (2x): Program Output: Sends the final, switched video feed to external displays or projectors Multiview Output: Shows an overview of all video sources for better control and monitoring USB-C Output: Connects to computers for additional functionality or streaming Audio Output (3.5mm jack): For external speakers or audio monitoring NDI Output: Wireless output over IP networks for compatible devices and workflows
General
Processor	Qualcomm 8Gen2
Operating System	Android
Inputs	8x HDMI (up to 4K60)
Outputs	2 HDMI outputs, freely assignable
Display	11.2-inch with 2.5K resolution and 120Hz refresh rate
Network	Supports wired and wireless connections with external antenna for extended range
Battery Life	Up to 10 hours for extended live productions
