Properties:

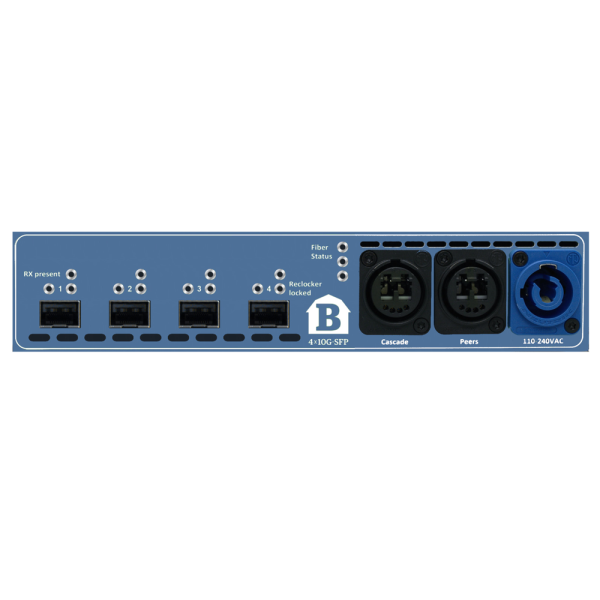

The BarnColor – 4x10GSFP-Flex SFP-determined Unit is a highly modular and powerful extension of BarnFind's proven BarnColor system. Designed for professional AV and broadcast environments, this device offers flexible, SFP-based signal processing with up to four SFP transceiver slots per unit. Thanks to freely configurable SFPs, each unit can be precisely tailored to the application – whether SDI, HDMI, Ethernet, or analog signals. This makes the BarnColor-Flex a custom-fit solution for a wide range of signal transport scenarios.
- 4x SFP slots per unit – compatible with MSA and non-MSA SFP modules

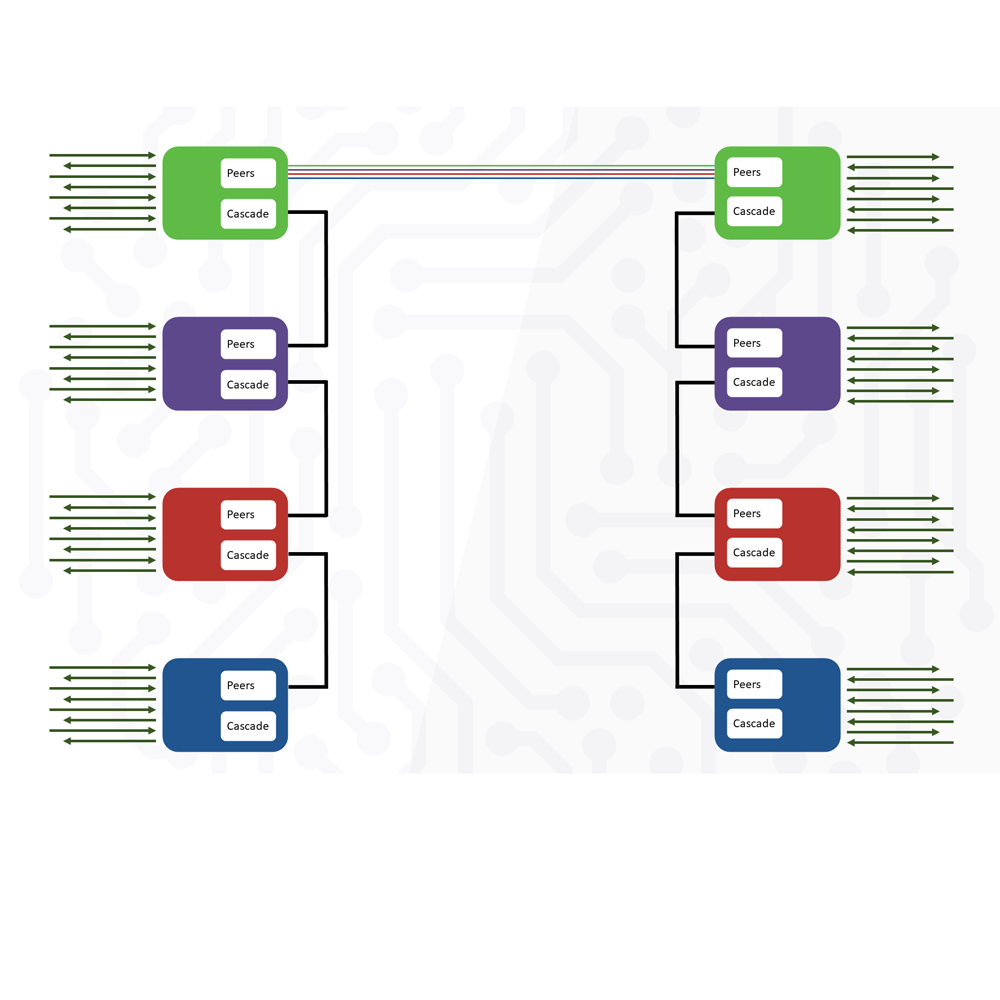

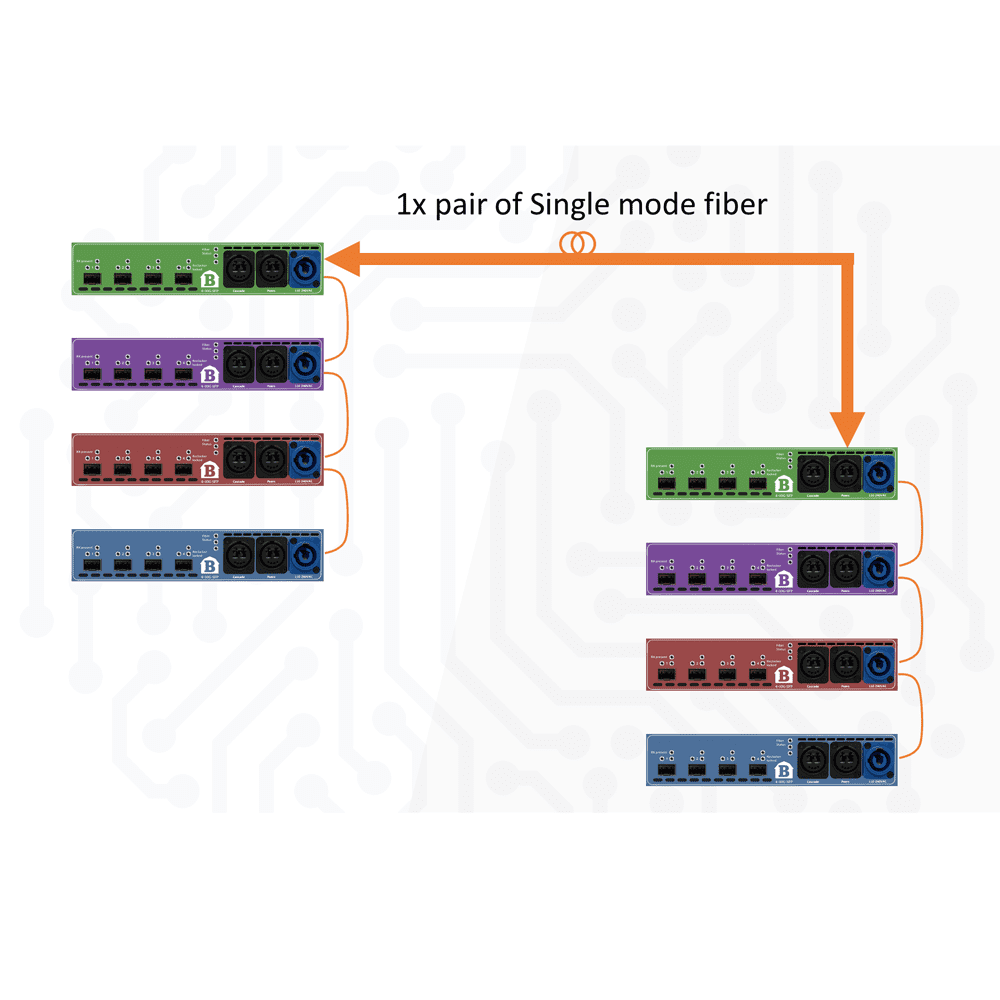

- Cascadable – up to four color units per side, 16 SFP slots per side
- Up to 32 signals simultaneously – 16 forward, 16 return
- 10G version supports up to 10Gbit/s Ethernet
- Supports various SFP modules, e.g.: PtP (any wavelength), Multimode, BNC, HDMI, HDBNC, Analog Video, IP encap/decap, and RJ45 SFPs
- Recommended connection: Single Mode fiber

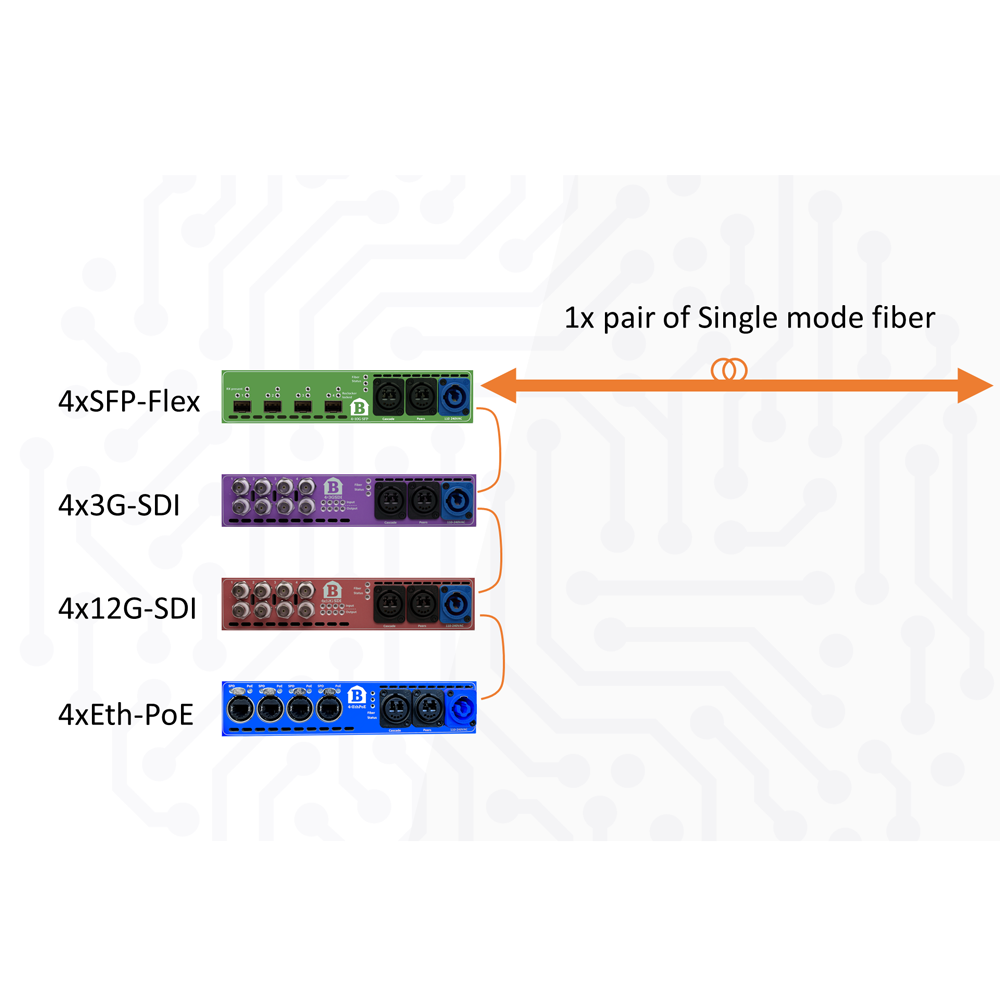

- Freely combinable with other BarnColor models of different colors
- Color-coded system – different colors allow easy system expansion
- Usable as a standalone pair or as a satellite in a BarnOne system
Technical Specifications:
- Supported Formats:
- SMPTE 258M, 292M, 372M, 424M
- DVB-ASI
- SMPTE ST-2081 (optional: ST-2082 for 12G version)
- 1 Gbit/s Ethernet, 10 Gbit/s Ethernet
- Multirate Reclocking:
- Supports output signals from 270 Mbps to 10 Gbps
- Up to 12 Gbps with optional 12G version
- Fiber Port (Cascade & Peer Connections):
- Connector: Neutrik opticalCON DUO
- Compatibility: Duplex Single Mode LC-LC fiber
- Standard: SMPTE 297M
- Power Supply:
- Connector: Neutrik powerCON
- Input Voltage: 100–240 VAC
- Power Consumption: 15 Watts
- Physical Properties:
- Dimensions: 223 × 277 × 44 mm (W × D × H) (8.8” × 10.9” × 1.7”)
- Weight: 1.4 kg
Scope of Delivery:
- 1x Barnfind BarnColor SFP-determined 4x10G SFP color Green / Purple / Red / Blue
