Sennheiser EW-DP ME2 SET (S4-7)

Properties:

The Sennheiser EW-DP ME2 SET (S4-7) is the perfect solution for professional audio recordings on the go – compact, powerful, and intuitively operable. This digital UHF wireless system is specifically designed for video and broadcast production, offering maximum flexibility along with premium sound quality. At the heart is the digital receiver EW-DP EK, which can be quickly and securely integrated into any camera setup thanks to its magnetic mounting plate – stackable, compact, and robust. Paired with the SK bodypack transmitter and the proven ME 2 lavalier microphone with omnidirectional pickup pattern, this set ensures clear speech transmission with a natural sound – even in challenging environments with wind or background noise. Thanks to Bluetooth functionality, transmitters and receivers can be easily synchronized and controlled via smartphone using the Smart Assist App. The system also supports users with intelligent notifications and practical troubleshooting suggestions to quickly resolve any issues. With an ultra-low latency of just 1.9 ms, an impressive 134 dB input dynamic range, and up to 56 MHz switching bandwidth, the system impresses with its technical capabilities. The battery life of up to 12 hours (transmitter) and 7 hours (receiver) allows for extended operation – with the receiver conveniently charged via USB-C.

• Portable digital UHF wireless system (Frequency range S4-7: 630 – 662 MHz)
• Includes EW-DP EK receiver, SK bodypack transmitter & ME 2 lavalier microphone with omnidirectional pattern
• Intuitive Bluetooth synchronization & control via Smart Assist App
• Intelligent error diagnosis with notifications and troubleshooting tips
• Magnetic, stackable design for easy camera mounting
• Long battery life & precise remaining time display
• Ultra-low latency (1.9 ms) for lip-sync audio transmission
• Distortion-free transmission thanks to 134 dB input dynamic range
• USB-C power supply and charging for maximum mobility

Technical Specifications:

• System Type: Digital UHF wireless system
• Frequency Range: S4-7 (630 – 662 MHz)
• Max. Number of Simultaneous Channels: Up to 90 channels (depending on region & environment)
• Switching Bandwidth: Up to 56 MHz
• Audio Transmission: Digital (24-bit / 48 kHz)
• Latency: 1.9 ms
• Dynamic Range: 134 dB (input)
• Range: Up to 100 m (under ideal conditions)
• Receiver – EW-DP EK:
  • Type: Compact camera receiver
  • Power Supply: Integrated Li-Ion battery or USB-C (5 V)
  • Battery Life: Up to 7 hours
  • Mounting: Magnetic mounting plate, stackable
  • Bluetooth: Yes (for app control and synchronization)
  • Connections: 3.5 mm TRS output, USB-C (charging & power)
  • Display: OLED display with intuitive menu
  • Dimensions: approx. 63 x 67 x 26 mm
  • Weight: approx. 110 g

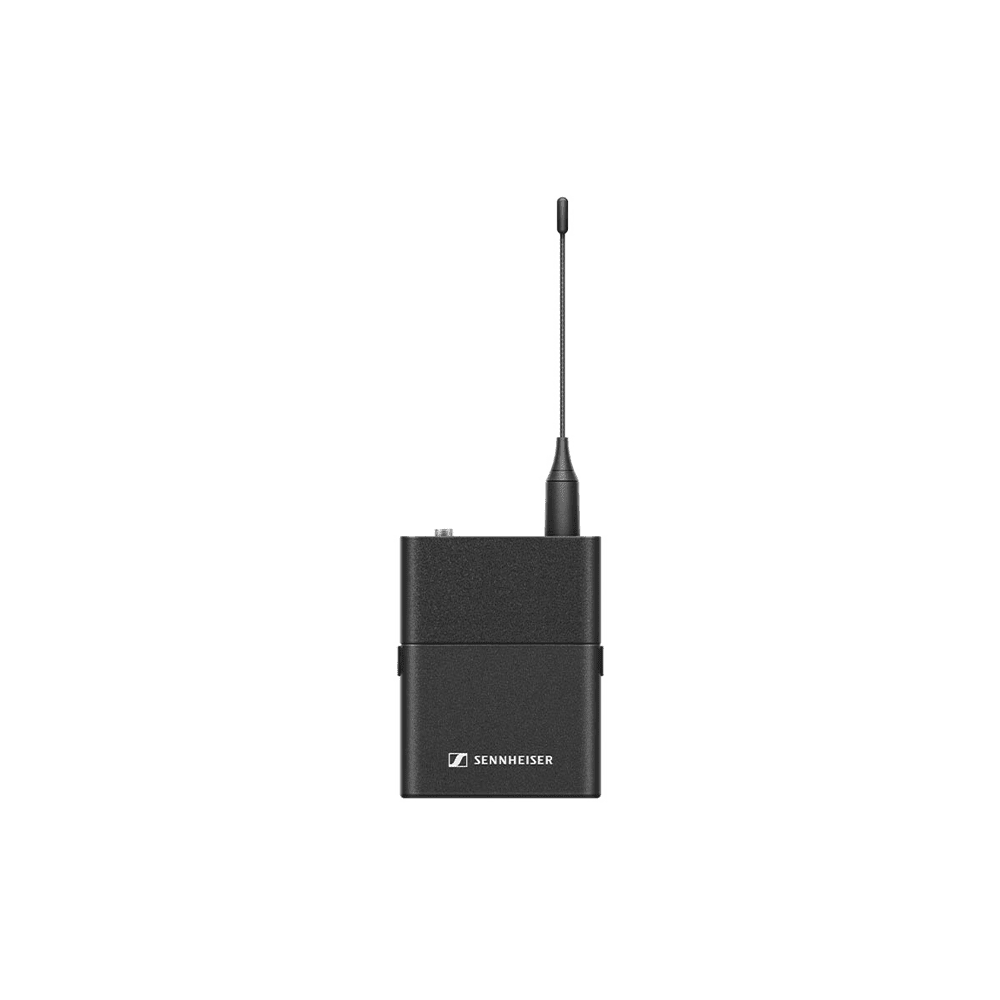

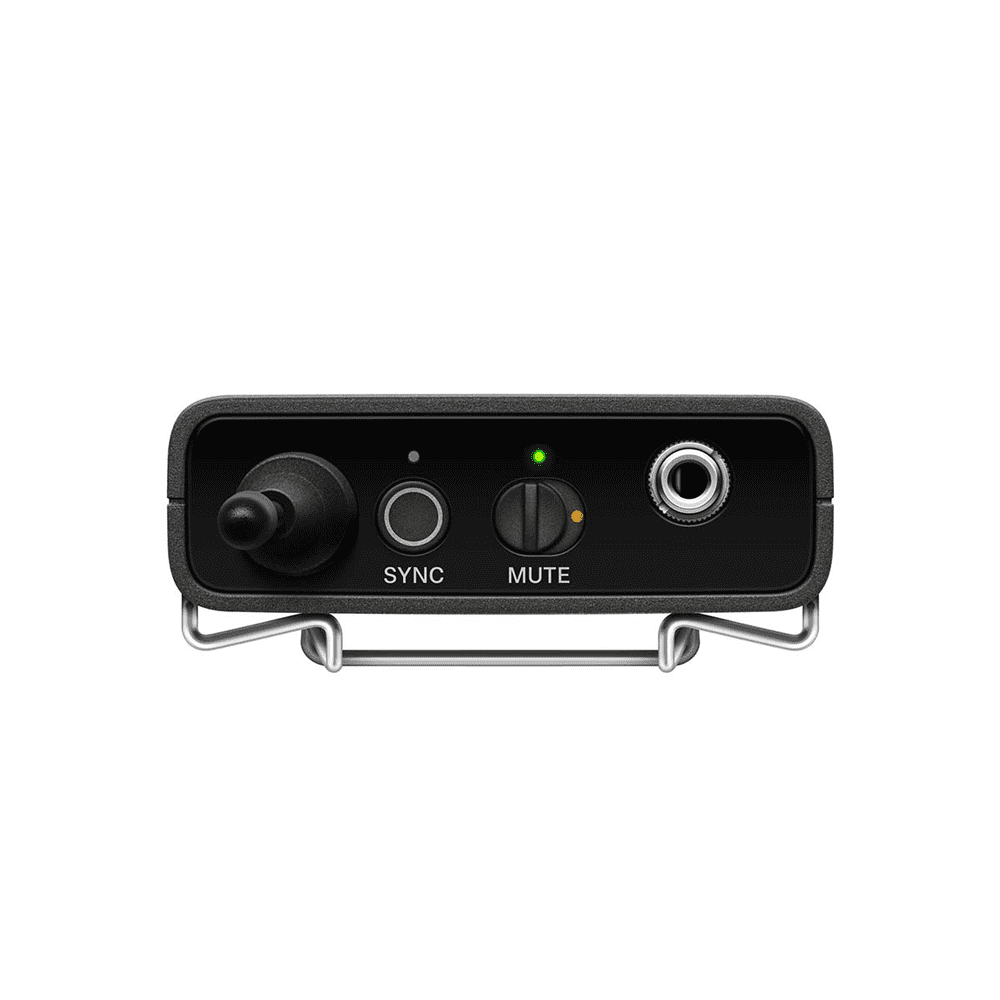

• Bodypack Transmitter – SK:
  • Type: Bodypack transmitter with 3.5 mm locking jack input
  • Power Supply: 2x AA batteries or BA 70 battery (optional)
  • Battery Life: Up to 12 hours (with BA 70 battery)
  • Input Impedance: 3.5 kΩ
  • Input Dynamic Range: Up to 134 dB
  • Transmission Power: 10 mW (typical)
  • Dimensions: approx. 63 x 80 x 20 mm
  • Weight: approx. 115 g (without batteries)
• Lavalier Microphone – ME 2:
  • Type: Lavalier microphone with omnidirectional pattern
  • Frequency Response: 50 – 18,000 Hz
  • Pickup Pattern: Omnidirectional
  • Connector: 3.5 mm jack with screw lock
  • Cable Length: approx. 1.6 m
  • Color: Black
  • Special Feature: Low wind sensitivity, natural speech clarity

Scope of Delivery:

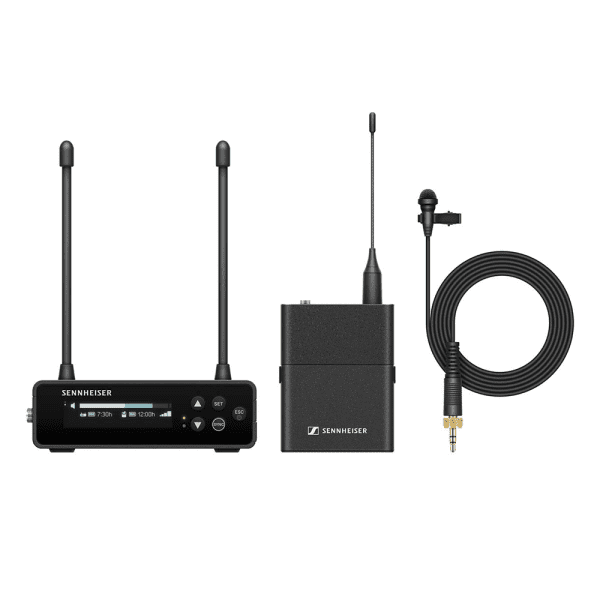

• 1x Sennheiser EW-DP ME2 SET (S4-7) including:
• 1x Digital portable single-channel receiver EW-DP EK
• 1x Digital bodypack transmitter EW-D SK
• 1x ME 2 lavalier microphone (omnidirectional)

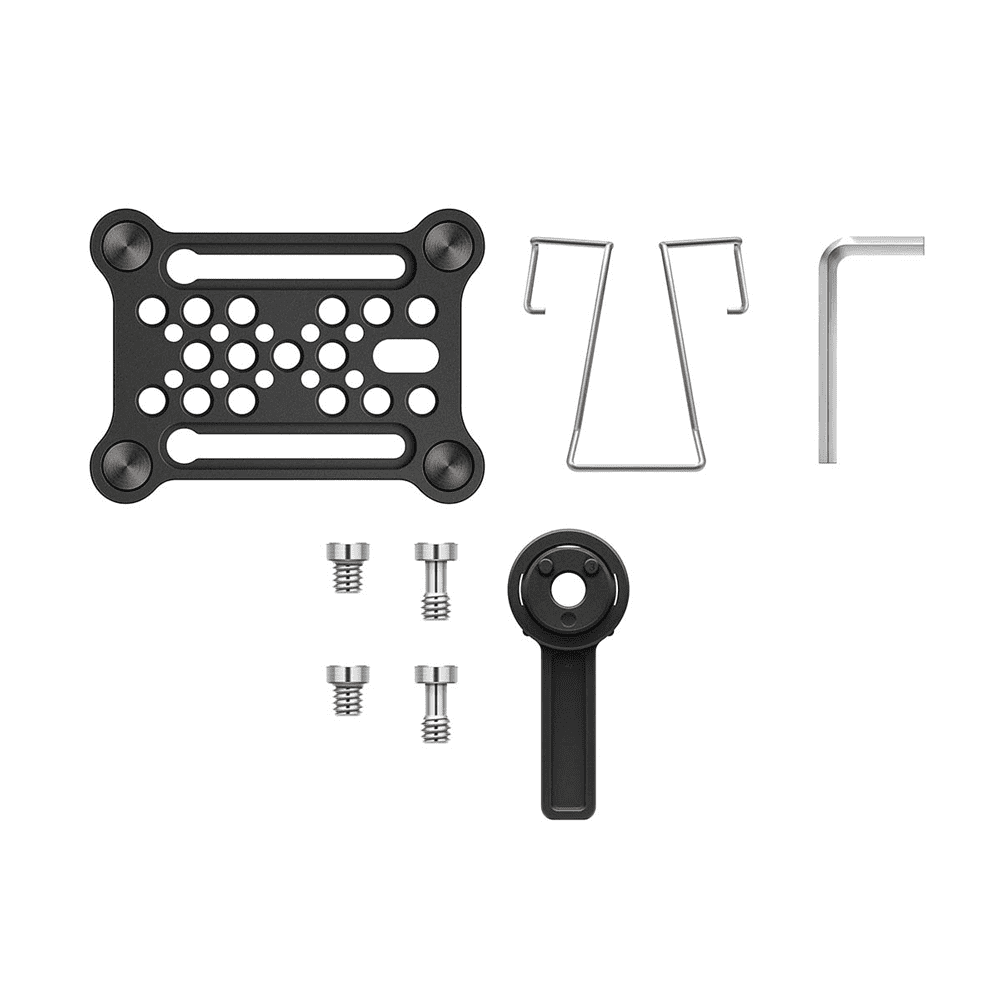

• 1x Mounting set (mounting plate, camera adapter, belt clip, and screws)

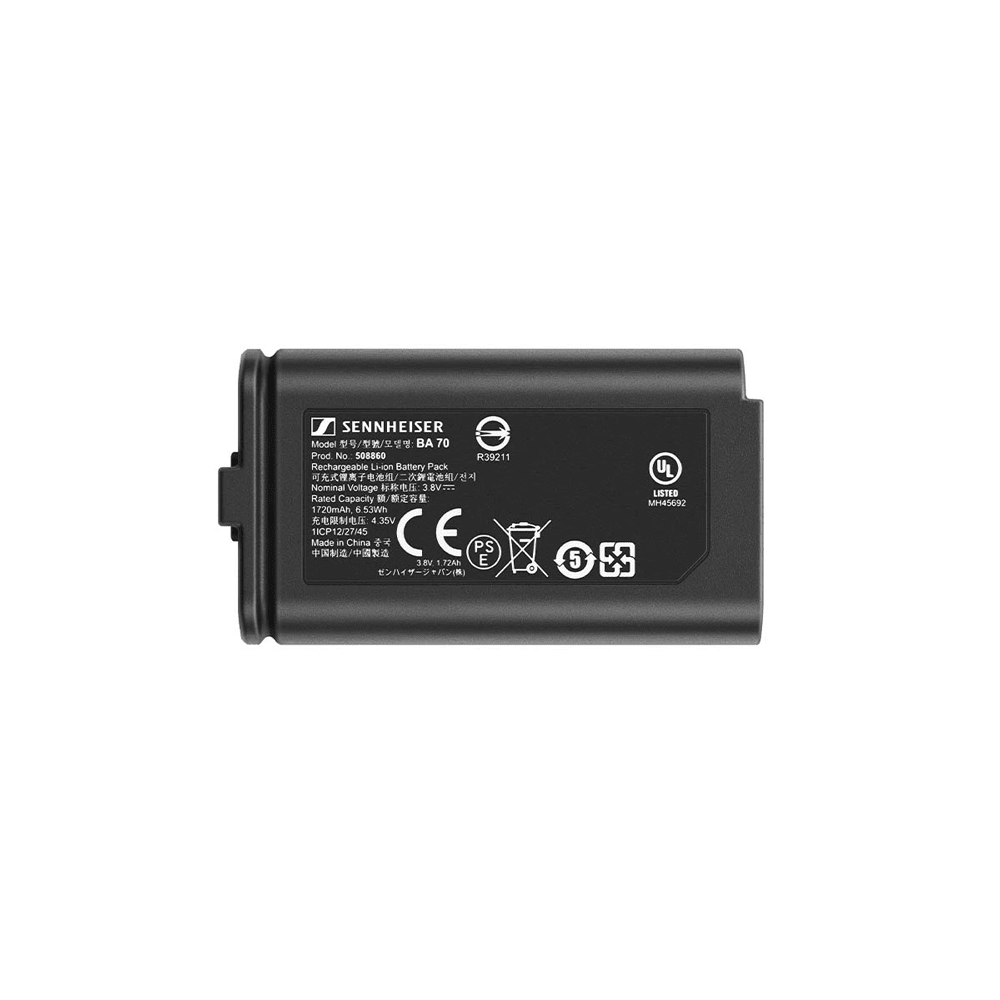

• 1x BA 70 Li-ion battery
• 2x AA batteries

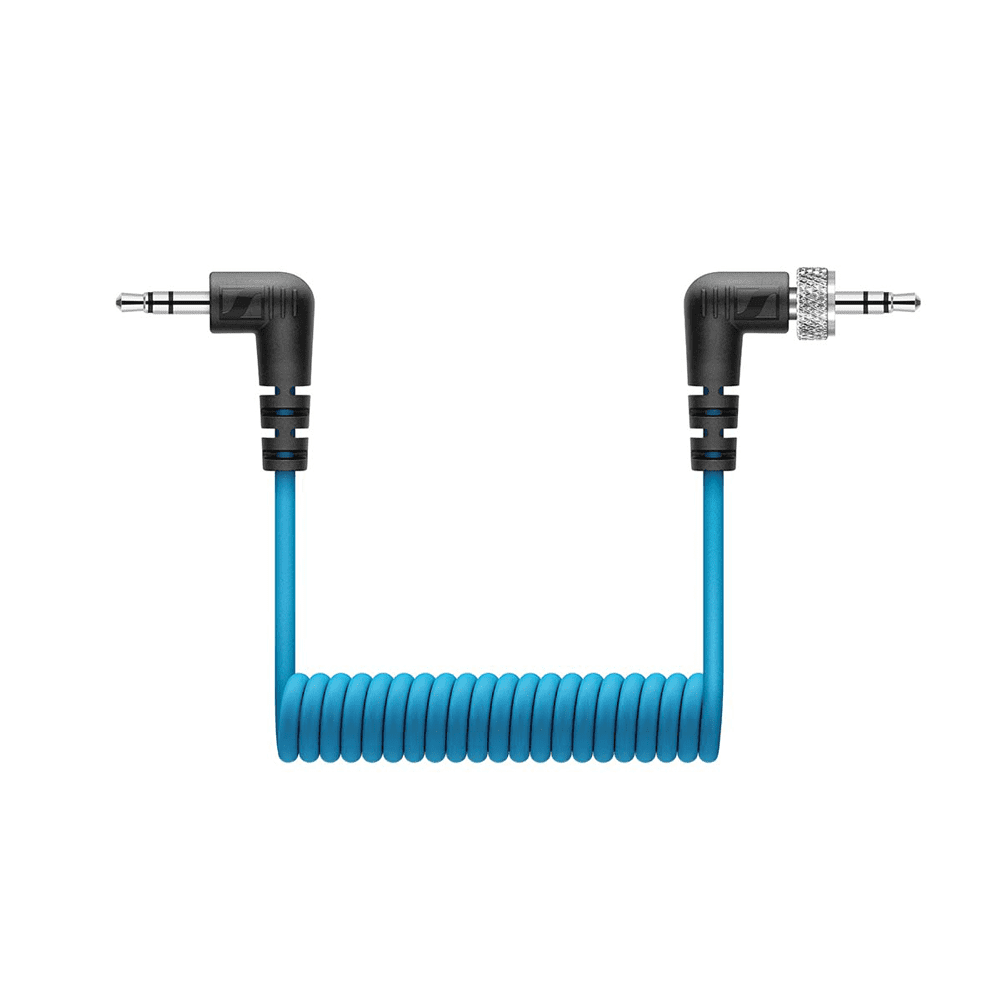

• 1x 3.5 mm TRS to 3.5 mm TRS cable (lockable)
• 1x 3.5 mm TRS to XLR cable (lockable)
• 1x USB-C charging cable
