ARRI ALEXA 35 Base Production Set (LPL, MVF, 19mm)
- Open text field 1: ARRI_K0.0053866
Contact
Our experts are there for you:
Mo. - Fr.: 9am to 6pm
+49 (0) 040/557624-50
Contact form
[email protected]
Company
Properties:
The ALEXA 35 Base Production Sets are designed to suit the workflow of a traditional camera department. The ALEXA 35 Base Prod. Set (LPL, MVF, 19mm) contains an ALEXA 35 camera with a Base License (frame rates up to 60 fps, ProRes recording, basic 16:9 and 2:1 spherical recording formats), LPL Mount (LBUS), PL-to-LPL Adapter, MVF-2 viewfinder, production accessories, and Power Distribution Module PDM-1. Both lightweight 15 mm and studio 19 mm rod standards are supported on the CBP-5 bridge plate and shoulder pad that are part of the Production Support Set - Bottom (19mm). The full-size Center Camera Handle CCH-5 and extendable Viewfinder Mounting Bracket VMB-5 offer rock-solid support and rapid reconfiguration possibilities on set. The ALEXA 35 camera with Base License can be upgraded through the ARRI Shop via temporary or permanent licenses with the following features: frame rates up to 120 fps, ARRIRAW recording, all Open Gate-width and anamorphic recording formats plus in-camera anamorphic de-squeeze, pre-recording, and look (ARRI Textures, ARRI Look Library, Custom Color Management). Each feature license can be purchased individually or all together in the Premium License.
- Base Production Set (LPL, MVF, 19mm)
- ARRI ALEXA 35
- 4.6K Super 35 camera with ALEV 4 CMOS sensor and REVEAL Color Science
- Dynamic range of 17 stops
- Excellent stray light suppression
- Extended sensitivity range (EI 160 to EI 6400)
- 19 recording formats
- Lens metadata

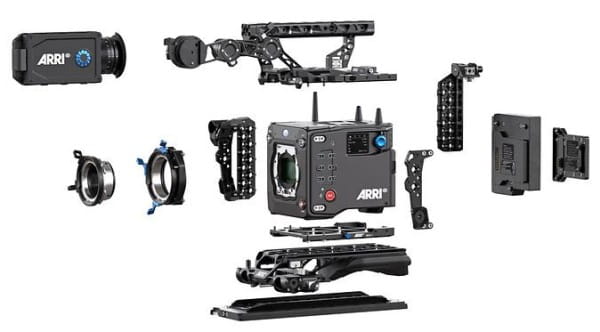

Package Contents:
- ALEXA 35 camera body with Base license (KK.0053845)
- ARRI LPL Mount (LBUS) (K2.0018983)
- ARRI PL-to-LPL Adapter (K2.0016936)
- Balance Utility Dovetail BUD-1 (K2.0034180)
- B-Mount Battery Adapter (K2.0023751)
- Multi Viewfinder MVF-2 (K2.0020916)
- Cable VF Right Angle (0.5m/1.5ft) (K2.0042857)
- AMIRA Power Cable Straight 2m/6.6in KC-50 (K2.75007.0)
- Power Distribution Module PDM-1 (K2.0024101)
- Production Support Set - Top (KK.0041533)
- Production Support Set - Side (KK.0041534)
- Production Support Set - Bottom (19 mm) (KK.0041535)
Technical Specifications:
sensor type | Super 35 format ARRI ALEV 4 CMOS sensor with Bayer matrix color filter array |
| sensor photosites and size | 4608 x 3164 |
| Sensor FPS | 0.75 - 120 fps |
| Project FPS | 23.976, 24, 25, 29.97, 30, 47.952, 48, 50, 59.94, 60 fps |
| Weight | 2.9 kg (camera body with three antennas and LPL mount (LBUS)) |
| Photosite Pitch | 6.075 μm |
| Exposure Index | adjustable from EI 160 - 6400 in 1/3 stops |
| dynamic range | 17 stops |
| Shutter | Electronic shutter, 5.0°- 356° or 1s - 1/8000s |
| recording codecs | MXF/ARRIRAW |
| storage media | Codex Compact Drive 1TB (CA08-1024), Codex Compact Drive 2TB (CB16-2048) |
| storage modes | Standard real-time recording, pre-recording |
| Viewfinder Type | Multi Viewfinder MVF-2 mit OLED Viewfinder Display (1920 x 1080) und 4" LCD flip-out Monitor (800 x 400) |
| Viewfinder Diopter | adjustable from -5 to +5 |
| color output |
|
| look control | ARRI Textures |
| white balance | Manual and auto white balance, adjustable from 2000K to 11000K |
| Filter | Built-in motorized ND filter with four positions: Clear, 0.6, 1.2, 1.8 |
| Squeeze-Faktor |
|
| exposure and focusing tools |
|
| audio recording | 4-Kanal lineares PCM (24 Bit, 48 kHz) |
| image outputs |
|
| interfaces |
|
| Audio inputs |
|
| audio outputs |
|
| Stromeingang |
|
| Leistungsausgabe |
|
| Fernsteuerungsoptionen |
|
| Wireless Schnittstellen |
|
| Objektivfassungen und -adapter |
*separat erhältlich, nicht im Lieferumfang enthalten |
| Flansch Schärfentiefe |
|
| Stromverbrauch | ~ 90 W (Kamera-Body und MVF-2) |
| Abmessungen | 147 x 152.5 x 203 mm (Kamera-Body mit LPL-Objektivanschluss) |
| Betriebstemperatur | -20° C bis +45° C @ 0-95% relativer Luftfeuchtigkeit |
| Lagertemperatur | -30° C bis +70° C |
| IP Schutzklasse | IP 51 |
| Schallpegel | < 20 dB(A) bei 30 fps, Aufnahme in 4K 16:9 - UHD, Apple ProRes 4444 XQ, ≤ +30° Umgebungstemperatur |
| Lizenz | ALEXA 35 Cine |
Sensor Modi
| Sensor Modi | Active image area (dimensions) | Image diagonal (Ø) | Active image area (photosites) | resolution of the recording (pixels) | Max fps* (1TB / 2TB Drive) | |||
| 4.6K 3:2 Open Gate | 28.00 x 19.20 mm 1.102 x 0.756" | 33.96 mm 1.337" | 4608 x 3164 | 4.6K (4608 x 3164) | 35 / 75 fps (ARRIRAW) 60 / 60 fps (Apple ProRes) | |||
| 4.6K 16:9 | 28.00 x 15.70 mm 1.102 x 0.618" | 32.10 mm 1.264" | 4608 x 2592 | 4.6K (4608 x 2592) | 45 / 75 fps (ARRIRAW) | |||
| 4K (4096 x 2304) | 75 / 75 fps (Apple ProRes) | |||||||
| 4K 16:9 | 24.90 x 14.00 mm 0.980 x 0.551" | 28.57 mm 1.125" | 4096 x 2304 | 4K (4096 x 2304) | 55 / 120 fps (ARRIRAW) 100 / 100 fps (Apple ProRes) | |||
| UHD (3840 x 2160) | 120 / 120 fps (Apple ProRes) | |||||||
| 2K (2048 x 1152) | 120 / 120 fps (Apple ProRes) | |||||||
| HD (1920 x 1080) | 120 / 120 fps (Apple ProRes) | |||||||
| 4K 2:1 | 24.90 x 12.40 mm 0.980 x 0.490" | 27.82 mm 1.095" | 4096 x 2048 | 4K (4096 x 2048) | 65 / 120 fps (ARRIRAW) 120 / 120 fps (Apple ProRes) | |||
| 3.3K 6:5 | 20.22 x 16.95 mm 0.796 x 0.693" | 26.38 mm 1.039" | 3328 x 2790 | 3.3K (3328 x 2790) | 55 / 100 fps (ARRIRAW) 75 / 75 fps (Apple ProRes) | |||
| 4K 2.39:1 Ana. 2x (4096 x 1716) | 90 / 90 fps (Apple ProRes) | |||||||
| 3K 1:1 | 18.70 x 18.70 mm 0.737 x 0.737 | 26.45 mm 1.041" | 3072 x 3072 | 3K (3072 x 3072) | 55 / 100 fps (ARRIRAW) 90 / 90 fps (Apple ProRes) | |||
| 3.8K 2:1 Ana. 2x (3840 x 1920) | 100 / 100 fps (Apple ProRes) | |||||||
| 2.7K 8:9 | 16.70 x 18.70 mm 0.656 x 0.738" | 25.09 mm 0.988" | 2743 x 3086 | UHD 16:9 Ana. 2x (3840 x 2160) | 100 / 100 fps (Apple ProRes) | |||
| 2K 16:9 S16 | 12.40 x 7.00 mm 0.490 x 0.276" | 14.24 mm 0.561" | 2048 x 1152 | 2K (2048 x 1152) | 120 / 120 fps (Apple ProRes) | |||
*Some Apple ProRes 4444 XQ formats have a slightly lower maximum fps
