ARRI ALEXA 35 Live - Multicam System Standard

Properties:

The ALEXA 35 Live Multicam System Standard offers a complete solution for live entertainment production. It includes the ALEXA 35 Live camera with a 4K Super35 sensor, HDR capability, and a new level of creative control in a dockable multicam setup. The standard system consists of the 4K ALEXA 35 Live camera, the Live Production system with the LPS-1 Fiber Camera Adapter and the FBS-1 Fiber Base Station, the Multicam Support Set, the TLM-1 Tally Light Module, the RIA-1 mount and cables. The system supports omni-directional audio and enables recordings with up to 17 stops of dynamic range for optimal results in SDR and HDR. With a range of up to 160 meters, it additionally provides a wide selection of creative looks and seamless integration into multicamera environments.

• Solution for live entertainment production
• Dockable multicam setup
• ALEXA 35 Live Camera with 4K Super35 sensor, Live Production System with the LPS-1 Fiber Camera Adapter and FBS-1 Fiber Base Station, Multicam Support Set, TLM-1 Tally Light Module, RIA-1 mount and cable
• Omni-directional audio
• Recordings with up to 17 stops of dynamic range
• SDR and HDR capabilities
• Range of up to 160 meters
• Selection of creative looks
• Easy integration into multicamera environments

Technical Specifications:

• Lens Mount: ARRI PL-Mount
• Sensor: 24.88 x 14 mm CMOS
• Image Stabilization: No
• ISO Sensitivity Range: 160 to 6400
Internal Recording Modes:
• MXF/ProRes 422 HQ/ProRes 4444/ProRes 4444XQ 4:4:4/4:2:2
• 4096 x 2304 60 fps
• 4096 x 2048 60 fps
• 3840 x 2160 60 fps
• 2048 x 1152 60 fps
• 1920 x 1080 60 fps
External Recording Modes:
• 4:4:4/4:2:2 via SDI/BNC
• 4096 x 2304 60 fps
• 4096 x 2048 60 fps
• 3840 x 2160 60 fps
• 2048 x 1152 60 fps
• 1920 x 1080 60 fps
• Media/Storage Slot: Codex Compact Drive
• Mobile App: iOS and watchOS
• Battery Type: B-Mount
• Lens Communication: Yes
• Built-in ND Filter: Mechanical filter wheel with clear, 2-stage (1/4), 4-stage (1/16), and 6-stage (1/64) ND filters
• Recording Type: Video
• Shutter Type: Electronic Rolling Shutter
• Shutter Speed: 1/8000 to 1 Second
• Shutter Angle: 5 to 356°
• Dynamic Range: 17 stops
• White Balance: 2000 to 11000 K
• Presets: Auto, Manual
• Fast/Slow Motion Support: Yes
• Gamma Curve: ARRI Log C4, Rec 2100 HLG, Rec 2100 PQ, Rec709, Rec2020
• Built-in Microphone: Stereo
• Audio Recording: 4-channel 24-bit 48 kHz LPCM audio
• IP Streaming: Yes
• Wireless: Wi-Fi (701.11 b/g)
• Global Positioning (GPS etc.): No
• Display Type: Fixed LCD display, non-touchscreen
• PoE Support: Yes
• Power Consumption: 90 W

Data Links:

• 1x 6-pin LEMO Line Input
• 1x 8-pin LEMO Power Input

• 2x 12G-SDI BNC Video Output
• 1x Fischer 3-pin, 24 V DC Output
• 1x LEMO 2-pin, 1 V DC Output
• 1x LEMO 10-pin, 24 V DC Output

• 1x LEMO 4-pin (LBUS)
• 1x LEMO 4-pin (Serial)
• 1x LEMO 5-pin (Timecode) Input/Output
• 1x LEMO 10-pin (Ethernet) Control
• 1x BNC Return (shared with Video Output)
• 1x USB-C
• 1x Pogo 18-pin

General Product Information:

• Dimensions (W x H x D): 203 x 152.5 x 147 mm
• Weight: 2.9 kg (body only)
• Operating Temperature: -20 to 45 °C
• Storage Temperature: -30 to 70 °C
• Operating Humidity: Max. 95%
• Tripod Mount: 3/8"-16 female thread

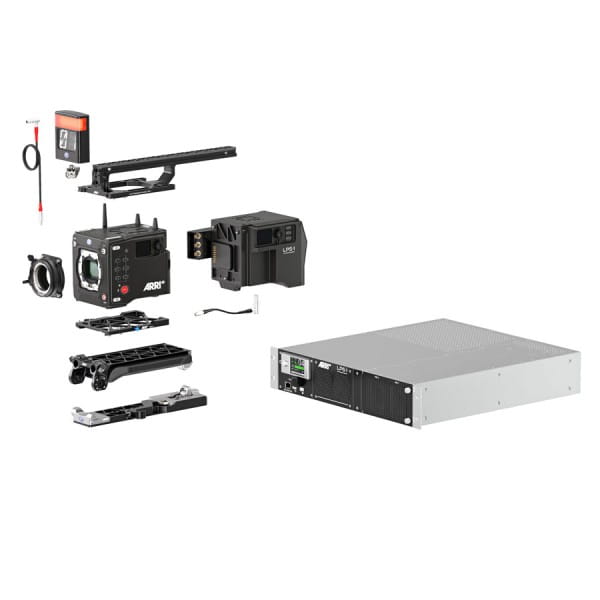

Scope of Delivery:

• 1x ALEXA 35 Live camera body (KK.0051068)
• 1x ARRI PL Mount (Hirose) (K2.0042652)
• 1x ARRI Balance Utility Dovetail BUD-1 (K2.0034180)
• 1x LPS-1 Fiber Camera Adapter FCA-1 (K2.0051089)
• 1x LPS-1 Fiber Base Station FBS-1 (K2.0051088)
• 1x Camera to FCA Ethernet Cable (K2.0051067)
• 1x ALEXA 35 Multicam Support Set (KK.0051232)
• 1x Tally Light Module TLM-1 (K2.0050656)
• 1x RIA-1 Bracket (K2.0039465)
• 1x Cable LBUS - LBUS (0.5 m/1.5 ft) (K2.0006751)
