Properties:

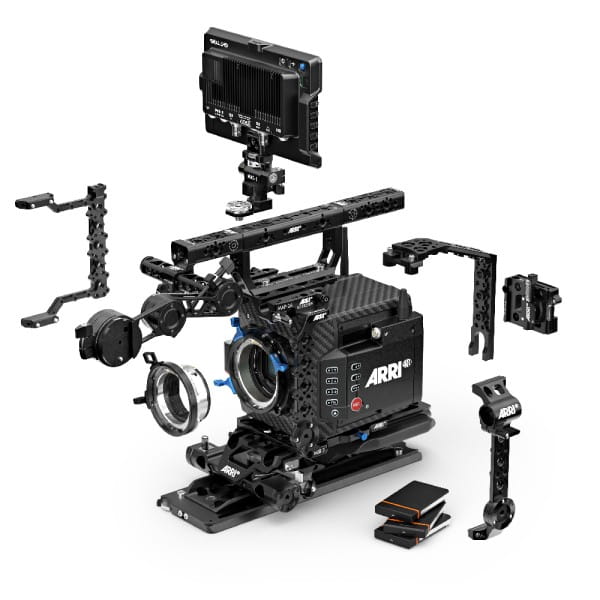

The ARRI K0.0049868 ALEXA Mini LF Production Set 15 - CCM-1 offers comprehensive equipment for professional film productions. The ALEXA Mini LF combines the compactness of the ALEXA Mini with the large-format ALEXA LF sensor, providing outstanding image quality and flexibility for extensive shoots. Equipped with three motorized FSND filters, 12 V power supply, additional power outputs, and a Codex Compact Drive, it is perfectly suited for demanding production environments. The ARRI Camera Control Monitor CCM-1 is a 7" camera control monitor for the ALEXA 35 and ALEXA Mini LF, offering full camera control and menu access. The IPS LCD screen with 1300 nits brightness ensures clear visibility in daylight and is connected via SDI In, SDI In/Out, USB-C, and Audio mini-jack. The set includes accessories such as a monitor arm, foldable sunshade, protective cover, three Codec Compact Drives with 1 TB each, Balance Utility Dovetail BUD-3, Mini Adapter Plate, camera handle with extensions, compact Bridge Plate, Bottom Plate, side brackets, and cables.
- ALEXA Mini LF and Camera Control Monitor CCM-1
- ALEXA LF sensor
- Outstanding image quality and flexibility
- Three motorized FSND filters, 12 V power supply, and power outputs
- 7" camera control monitor
- IPS LCD screen with 1300 nits
- SDI In, SDI In/Out, USB-C, and Audio mini-jack
- Monitor arm, foldable sunshade, protective cover, three Codec Compact Drives with 1 TB each, Balance Utility Dovetail BUD-3, Mini Adapter Plate, camera handle with extensions, compact Bridge Plate, Bottom Plate, side brackets, and cables
Scope of Delivery:
- 1x ARRI K1.0024074 ALEXA Mini LF Camera Body

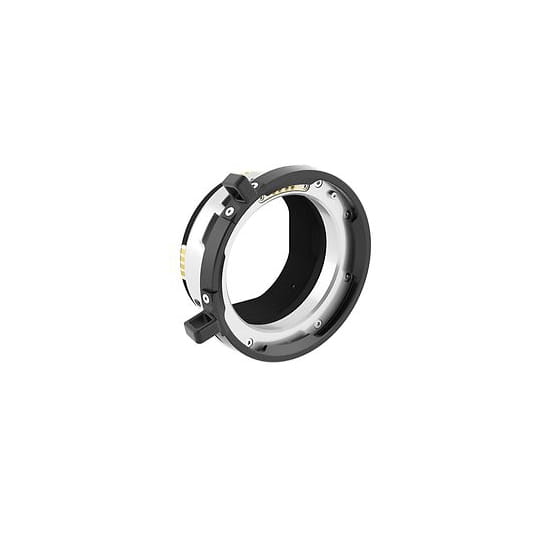

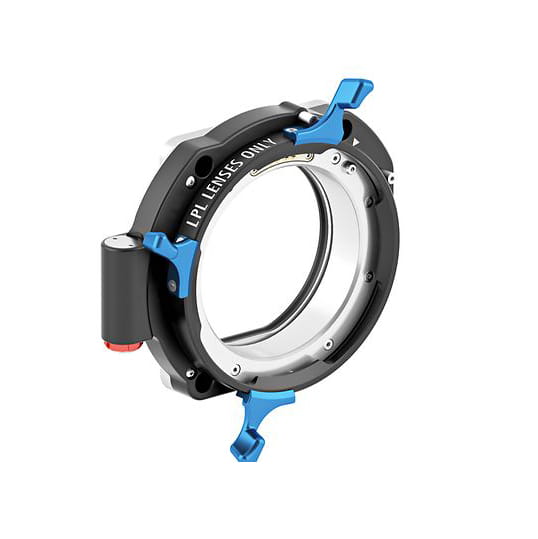

- 1x ARRI K2.0018983 ARRI LPL Lens Mount ALEXA Mini/AMIRA
- 1x ARRI K2.0016936 PL-to-LPL Adapter
- 3x ARRI K2.0024130 Codex Compact Drive 1 TB (CA08-1024)
- 1x ARRI KK.0048851 Camera Control Monitor CCM-1 Set
- 1x ARRI K2.0023915 Cable VF 0.35 m
- 1x ARRI K2.0048463 Balance Utility Dovetail BUD-3
- 1x ARRI K2.0023839 Mini Adapter Plate MAP-2A

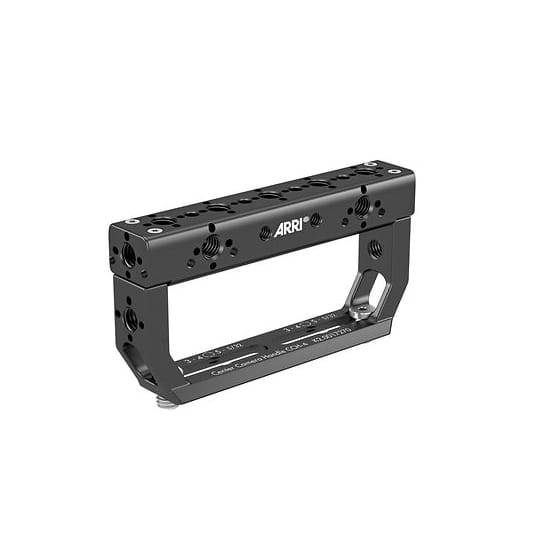

- 1x ARRI K2.0017270 Center Camera Handle CCH-4

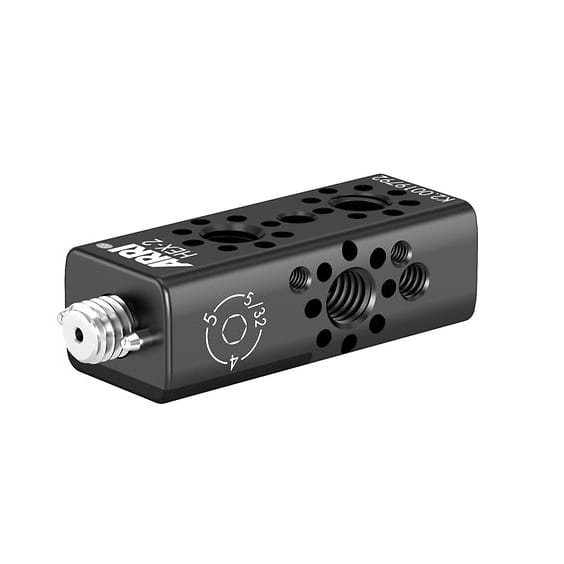

- 1x ARRI K2.0019792 Handle Extension HEX-2
- 1x ARRI K2.0019797 Handle Extension HEX-3
- 1x ARRI K2.0012692 Side Accessory Bracket SAB-1
- 1x ARRI K2.0023546 Mini Side Bracket MSB-3
- 1x ARRI K2.0014957 Mini Side Bracket MSB-2
- 1x ARRI K2.0023836 Compact Bridge Plate CBP-6 (15 mm)
- 1x ARRI K2.0049215 Rear Accessory Bracket RAB-3
- 1x ARRI K2.0023406 Clamp 2 for RAB-1

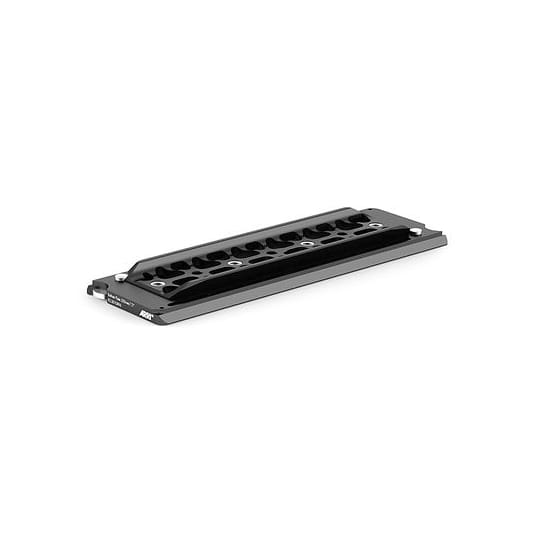

- 1x ARRI K2.0015896 Bottom Plate 300 mm/12"
- 1x ARRI K2.75007.0 Power Cable Straight KC-50 2 m
Technical Data ALEXA Mini LF:
| Sensor type | Large Format ARRI ALEV III (A2X) CMOS-Sensor mit Bayer Pattern Farbfilter Array |
| Sensor size | 36.70 x 25.54 mm / 4448 x 3096 (average 44.71 mm) |
| Sensor frame rate | 0,75 - 90 fps |
| Pixelabstand | 8,25 µm |
| Sensor Active image area (pixels) |
|
| Sensor Active Image Area (Size) |
|
| Recording File Container Size (Pixels) |
|
| Recording File Image Content (Pixel) |
|
| Dynamic range |
|
| Exposure Index |
|
| Shutter | Electronic shutter, 5.0°- 356° or 1s - 1/8000s |
| Recording formats |
|
| Recording media | Codex Compact Drives |
| Recording - Frame rates |
|
| Recording modes |
|
| Viewfindertyp | Multi Viewfinder MVF-2 with fold-out 4" touchscreen monitor |
| Viewfinder technology |
|
| Viewfinder resolution (pixels) | 1920 x 1080 |
| Viewfinder Diopter | adjustable from -5 to +5 |
| Color output |
|
| Look Control |
|
| White balance |
|
| Filter |
|
| Image output |
"Clean" is an image without surround view or overlays (status, false colors, zebra, framelines, etc.) |
| Lens Squeeze Faktor |
|
| Exposure and focusing tools |
|
| Audio input | 1x LEMO 6pin balanced stereo cable with 12V output (line input max. level +24dBu correlating with 0dBFS) Two integrated microphones for scratch audio |
| Audio output |
|
| Audio recording | 2-Kanal lineares PCM, 24 Bit 48 kHz |
| Remote control options |
|
| Interfaces |
|
| Wireless interfaces |
|
| Lens mounts |
Note: Not included, sold separately. |
| Flange Depth of Field |
|
| Power input | 1x LEMO 8pin (11-34V DC) |
| Power consumption | Approx. 65 W when recording ARRIRAW @ 24 fps with MVF-2 attached (preliminary information) |
| Power outputs |
|
| operating temperatur |
|
| Storage temperature |
|
| Sound level | < 20 dB(A) bei 24fps |
| Dimensions | 140 x 143 x 188 mm (Kamera Body mit LPL Lens-Mount) |
| Weight |
|
Technical Data CCM-1:
| compatibility | full menu control: ALEXA 35, ALEXA Mini LF |
| Software requirements | from ALEXA 35 SUP 1.2 from ALEXA Mini LF SUP 7.3 if MVF-2 and CCM-1 are used simultaneously via the two VF connectors of the ALEXA 35, ALEXA 35 SUP 1.2.1 is required |
| Keys |
|
| Control options |
|
| connections |
|
| SDI input | 3G-SDI Input Types
HD-SDI input types
SD-SDI Input Types
|
| SDI output | 3G-SDI Output Types
HD-SDI output types
SD-SDI Output Types
|
| Power consumption | PWR and VF connection |
| Power consumption range | 10 - 34 V |
| Display-Typ | TFT LCD with LED backlight |
| resolution | 1920 x 1200 |
| Pixel density | 322 dpi |
| Active screen size | 151,20 x 94,50 mm |
| Aspect ratio | 16:10 |
| reaction time | 25 ms |
| Screen brightness | 1300 nits |
| Colors (typically) | DCI-P3 / Rec. 709 |
| Angle of view | 160 ° all axes |
| Display orientation | Landscape format, 180 ° rotation |
| Material | anodized aluminum housing with replaceable steel base |
| Mechanical interfaces | 4x ARRI Pin-Lock 1/4" (1x bottom, 1x rear, 1x right side, 1x top) |
| operating temperatur | 0 °C to 45 °C |
| Storage temperature | -18 °C to 49 °C |
| Humidity (during operation) | 0% to 95%, non-condensing |
| Humidity (in stock) | 0% to 95%, non-condensing |
| Dimensions | 187 x 120 x 29 mm |
| Weight | 594 g |
