ARRI K0.0049868 ALEXA Mini LF Production Set 19 - CCM-1
- Open text field 1: ARRI_K0.0049870
Contact
Our experts are there for you:
Mo. - Fr.: 9am to 6pm
+49 (0) 040/557624-50
Contact form
[email protected]
Company
Properties:

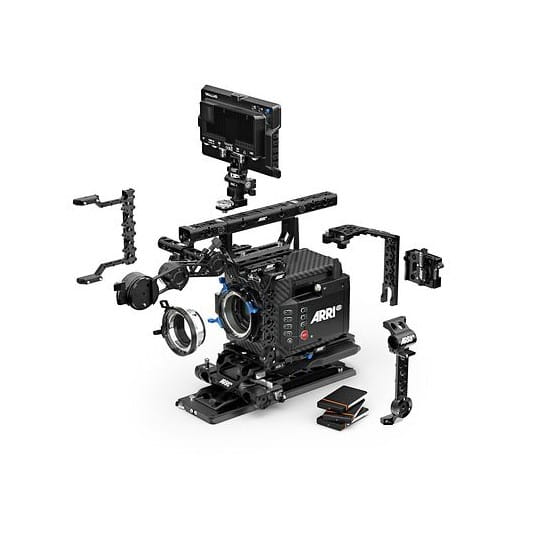

The ARRI K0.0049868 ALEXA Mini LF Production Set 19 - CCM-1 provides a comprehensive solution for professional film productions with the ALEXA Mini LF and the Camera Control Monitor CCM-1. The ALEXA Mini LF combines the compact design of the ALEXA Mini with the large-format ALEXA LF sensor, ensuring outstanding image quality and flexibility for extensive shooting scenarios. Equipped with three motorized FSND filters, 12 V power supply, additional power outputs, and a Codex Compact Drive, it is ideal for demanding production environments. The ARRI CCM-1 is a 7" camera control monitor for the ALEXA 35 and ALEXA Mini LF, offering full camera control and menu access, with a brightness of 1300 Nits for clear visibility in daylight. The monitor features SDI In, SDI In/Out, USB-C, and audio mini-jack interfaces, and can be connected to the camera via the VF port. The set also includes a monitor arm, collapsible sunshade and protective cover, three 1 TB Codec Compact Drives, Balance Utility Dovetail BUD-3, mini adapter plate, camera handle with extensions, compact bridge plate, bottom plate, side brackets, and cables.
- ALEXA Mini LF and the Camera Control Monitor CCM-1
- ALEXA LF sensor
- Outstanding image quality and flexibility
- Three motorized FSND filters, 12 V power supply, and additional power outputs
- 7" camera control monitor
- Brightness of 1300 Nits
- SDI In, SDI In/Out, USB-C, and audio mini-jack interfaces
- Monitor arm, collapsible sunshade and protective cover, three 1 TB Codec Compact Drives, Balance Utility Dovetail BUD-3, mini adapter plate, camera handle with extensions, compact bridge plate, bottom plate, side brackets, and cables
Scope of Delivery:
- 1x ARRI K1.0024074 ALEXA Mini LF Camera Body

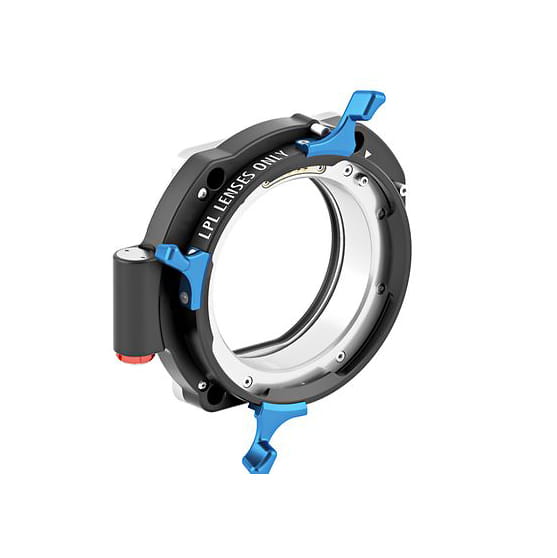

- 1x ARRI K2.0018983 ARRI LPL Lens Mount ALEXA Mini/AMIRA

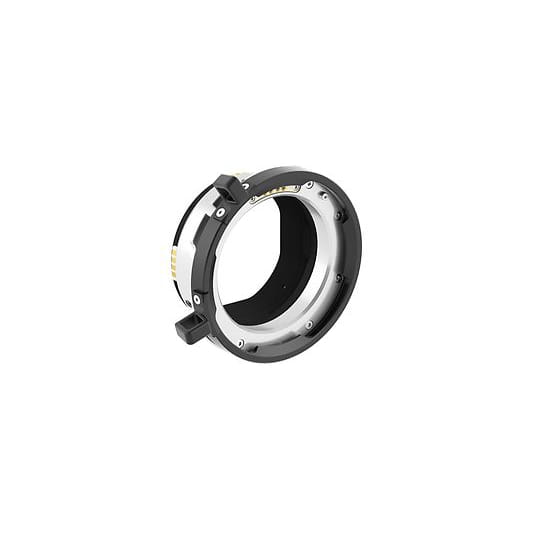

- 1x ARRI K2.0016936 PL-to-LPL Adapter
- 3x ARRI K2.0024130 Codex Compact Drive 1TB (CA08-1024)
- 1x ARRI KK.0048851 Camera Control Monitor CCM-1 Set
- 1x ARRI K2.0023915 Cable VF (0.35m/1.15ft)
- 1x ARRI K2.0048463 Balance Utility Dovetail BUD-3
- 1x ARRI K2.0023839 Mini Adapter Plate MAP-2A

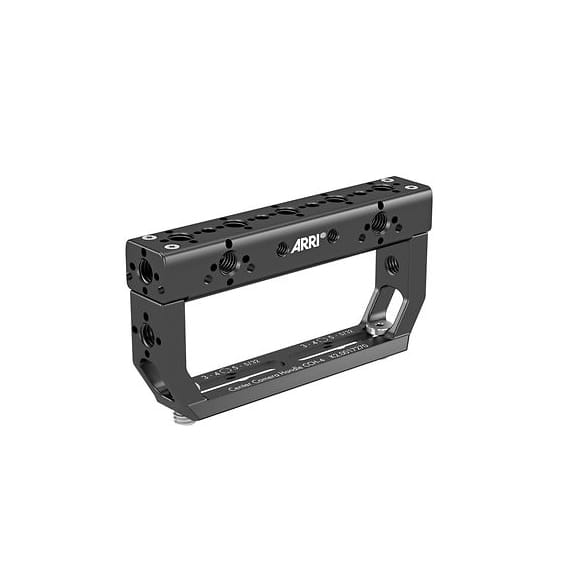

- 1x ARRI K2.0017270 Center Camera Handle CCH-4
- 1x ARRI K2.0019792 Handle Extension HEX-2

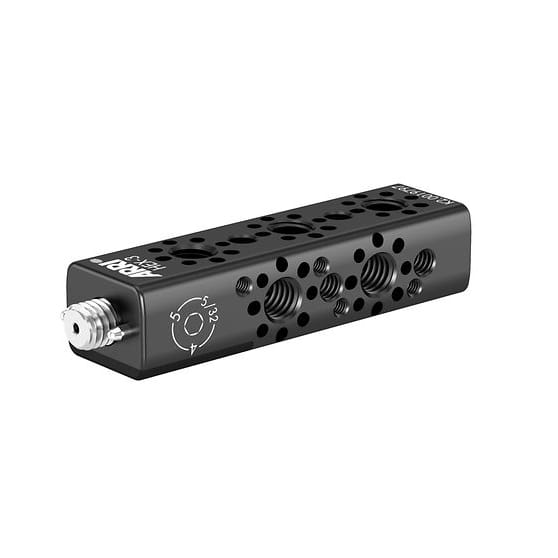

- 1x ARRI K2.0019797 Handle Extension HEX-3
- 1x ARRI K2.0012692 Side Accessory Bracket SAB-1

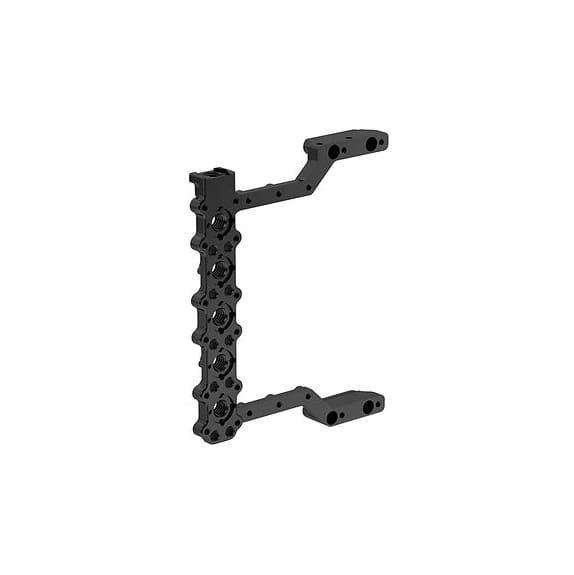

- 1x ARRI K2.0023546 Mini Side Bracket MSB-3
- 1x ARRI K2.0014957 Mini Side Bracket MSB-2
- 1x ARRI K2.0023549 Compact Bridge Plate CBP-5 (19mm)

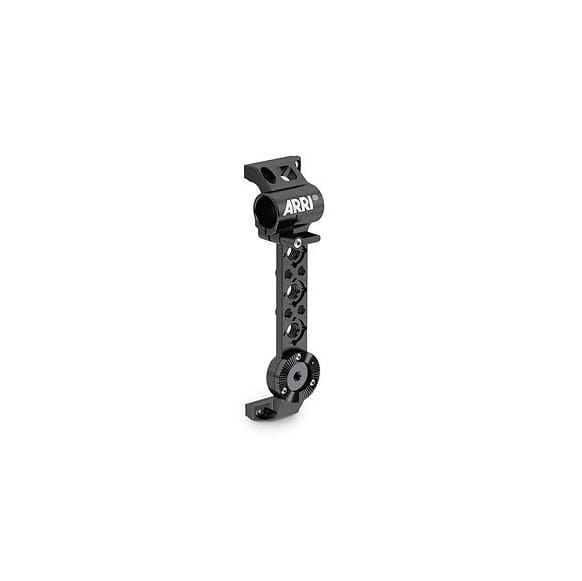

- 1x ARRI K2.0049215 Rear Accessory Bracket RAB-3
- 1x ARRI K2.0023406 Clamp 2 for RAB-1

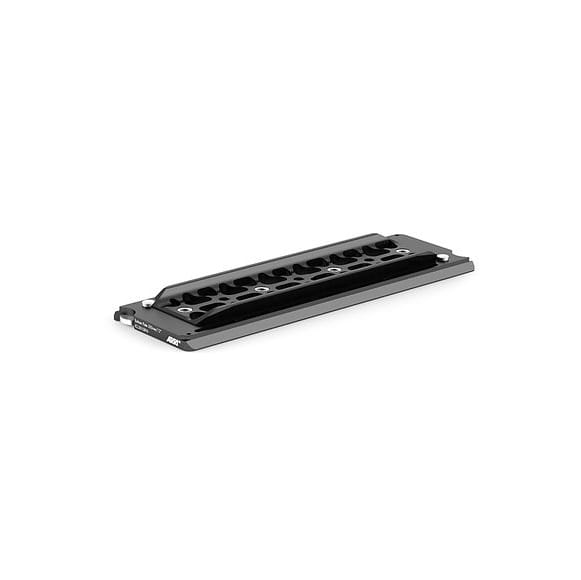

- 1x ARRI K2.0015896 Bottom Plate 300mm/12"
- 1x ARRI K2.75007.0 Power Cable Straight KC-50 2m
Technical Data ALEXA Mini LF:
| Sensor type | Large Format ARRI ALEV III (A2X) CMOS-Sensor mit Bayer Pattern Farbfilter Array |
| Sensor size | 36.70 x 25.54 mm / 4448 x 3096 (average 44.71 mm) |
| Sensor frame rate | 0,75 - 90 fps |
| Pixelabstand | 8,25 µm |
| Sensor Active image area (pixels) |
|
| Sensor Active Image Area (Size) |
|
| Recording File Container Size (Pixels) |
|
| Recording File Image Content (Pixel) |
|
| Dynamic range |
|
| Exposure Index |
|
| Shutter | Electronic shutter, 5.0°- 356° or 1s - 1/8000s |
| Recording formats |
|
| Recording media | Codex Compact Drives |
| Recording - Frame rates |
|
| Recording modes |
|
| Viewfindertyp | Multi Viewfinder MVF-2 with fold-out 4" touchscreen monitor |
| Viewfinder technology |
|
| Viewfinder resolution (pixels) | 1920 x 1080 |
| Viewfinder Diopter | adjustable from -5 to +5 |
| Color output |
|
| Look Control |
|
| White balance |
|
| Filter |
|
| Image output |
"Clean" is an image without surround view or overlays (status, false colors, zebra, framelines, etc.) |
| Lens Squeeze Faktor |
|
| Exposure and focusing tools |
|
| Audio input | 1x LEMO 6pin balanced stereo cable with 12V output (line input max. level +24dBu correlating with 0dBFS) Two integrated microphones for scratch audio |
| Audio output |
|
| Audio recording | 2-Kanal lineares PCM, 24 Bit 48 kHz |
| Remote control options |
|
| Interfaces |
|
| Wireless interfaces |
|
| Lens mounts |
Note: Not included, sold separately. |
| Flange Depth of Field |
|
| Power input | 1x LEMO 8pin (11-34V DC) |
| Power consumption | Approx. 65 W when recording ARRIRAW @ 24 fps with MVF-2 attached (preliminary information) |
| Power outputs |
|
| operating temperatur |
|
| Storage temperature |
|
| Sound level | < 20 dB(A) bei 24fps |
| Dimensions | 140 x 143 x 188 mm (Kamera Body mit LPL Lens-Mount) |
| Weight |
|
Technical Data CCM-1:
| compatibility | full menu control: ALEXA 35, ALEXA Mini LF |
| Software requirements | from ALEXA 35 SUP 1.2 from ALEXA Mini LF SUP 7.3 if MVF-2 and CCM-1 are used simultaneously via the two VF connectors of the ALEXA 35, ALEXA 35 SUP 1.2.1 is required |
| Keys |
|
| Control options |
|
| connections |
|
| SDI input | 3G-SDI Input Types
HD-SDI input types
SD-SDI Input Types
|
| SDI output | 3G-SDI Output Types
HD-SDI output types
SD-SDI Output Types
|
| Power consumption | PWR and VF connection |
| Power consumption range | 10 - 34 V |
| Display-Typ | TFT LCD with LED backlight |
| resolution | 1920 x 1200 |
| Pixel density | 322 dpi |
| Active screen size | 151,20 x 94,50 mm |
| Aspect ratio | 16:10 |
| reaction time | 25 ms |
| Screen brightness | 1300 nits |
| Colors (typically) | DCI-P3 / Rec. 709 |
| Angle of view | 160 ° all axes |
| Display orientation | Landscape format, 180 ° rotation |
| Material | anodized aluminum housing with replaceable steel base |
| Mechanical interfaces | 4x ARRI Pin-Lock 1/4" (1x bottom, 1x rear, 1x right side, 1x top) |
| operating temperatur | 0 °C to 45 °C |
| Storage temperature | -18 °C to 49 °C |
| Humidity (during operation) | 0% to 95%, non-condensing |
| Humidity (in stock) | 0% to 95%, non-condensing |
| Dimensions | 187 x 120 x 29 mm |
| Weight | 594 g |
