Canon EOS C300 Mark III + EU-V2 Expansion

Package consists of:

• Canon EOS C300 Mark III Cinema Camera
• Canon EU-V2 Expansion Unit

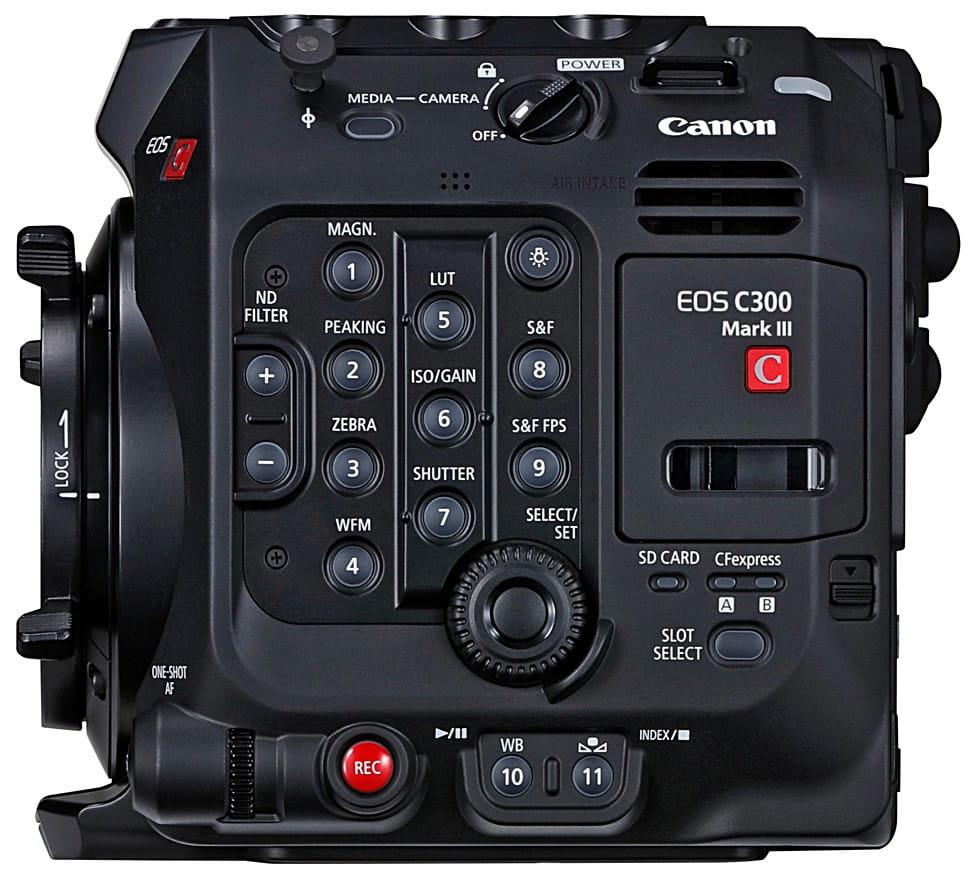

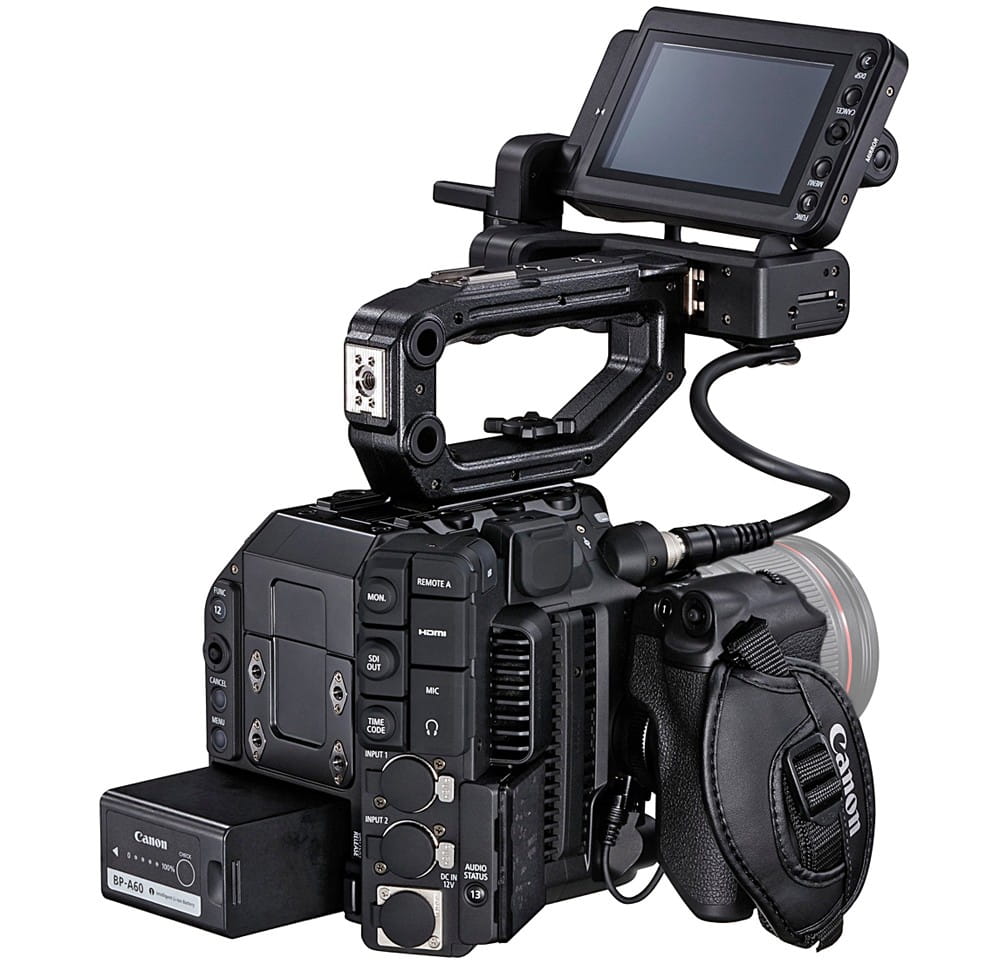

Properties EOS C300 Mark III Cinema Camera:

The EOS C300 Mark III is a 4K cine camera equipped with a new 4K Super 35 mm CMOS sensor with Dual Gain Output and the DIGIC DV7 image processor. This allows internal RAW recording as 4K DCI with up to 120 fps on up to two CFexpress cards. The Dual Gain Output allows a dynamic range of 16+ f-stops. The EOS C300 Mark III also uses the modular system of the EOS C500 Mark II, making it compatible with the EU-V1 and EU-V2 expansion units, which offer several additional connectors and power supply options, and the EVF-V50 OLED colour viewfinder. The camera is powered either by the supplied rechargeable battery or the supplied AC adapter.

• Quiet Super 35 mm CMOS sensor for recording up to 4K at 120 fps
• Dual Gain Output with a dynamic range of 16+ f-stops
• Can be upgraded with modular accessories, such as two expansion units with additional connections
• HDR support with SMPTE ST 2084 and ITU-R BT.2100 (HLG)
• Internal recording in 4K Cinema RAW Light on CFexpress cards possible
• Built-in ND filter system with 10 steps
• 4K recording in 4:2:2 10 bit with up to 810 Mbps and support of all ALL-I and Long GOP formats
• Dual Pixel CMOS AF for fast focusing

Technical Specifications:

• Sensor: Super 35 mm CMOS DOG
• System: RGB primary colour filter (Bayer Array)
• Sensor Modes: Super 35 mm / Super 16 mm (Crop)
• Image Processor: DIGIC DV7
• Total Pixels: approx. 9.6 MP (4,206 x 2,280)
• Effective Pixels: approx. 8.85 MP (at 4K DCI or 2K DCI) / approx. 8.29 MP (at Ultra HD or Full HD)
• Effective Sensor Display Size: 26.2 x 13.8 mm; 26.9 mm diagonal (at 4K DCI or 2K DCI) / 24.6 x 13.8 mm; 28.2 mm diagonal (at Ultra HD or Full HD)
• Dynamic Range:
  Canon Log 2: 1,600 % / 16+ f-stops (at ISO 800 and Dual Gain Output ON)
  Canon Log 3: 1,600 % / 14 f-stops (at ISO 800 and Dual Gain Output ON)
  Wide DR: 800 % (at ISO 400)
• Peripheral Exposure Compensation: Yes (depending on used lens)
• ND Filter: built-in, up to 10 steps
• Autofocus System: Dual Pixel CMOS AF, Contrast AF
• ISO Sensitivity: 100 - 102,400 (with ISO expansion)
• Shutter Speed: 1 - 1/2,000 (depending on frame rate and shutter speed mode, 39 setting options)
• Integrated Colour Spaces: BT.709 (Wide DR / BT.709 Gamut), LOG2 (Canon Log 2 / Cinema Gamut), LOG3 (Canon Log 3 / Cinema Gamut), PQ (PQ / BT.2020 Gamut), HLG (HLG / BT.2020 Gamut)
• Image Stabilization: Digital 5-axis IS for non-IS lenses, combination of optical IS and digital IS to a combined 5-axis IS
• Supported Audio Formats: Linear PCM (24-bit / 48 kHz), 4 channels
• Supported Video Formats: 4K DCI, Ultra HD, 2K DCI, Full HD)
• System Frequencies / Frame Rates:
  59.94 Hz Mode (59.94p / 59.94i / 29.97p / 23.98p)
  50.00 Hz Mode (50.00p / 50.00i / 25.00p)
  24.00 Hz Mode (24.00p)
• Recording Formats: Cinema RAW Light (CRM), XF-AVC (MXF) ALL-I or Long GOP
• Slow / Fast Motion: Cinema RAW Light 12 - 120 fps, XF-AVC 12 - 120 fps (12 - 180 fps at 2K DCI or Full HD)
• Compatible Storage Media: 2x CFexpress card, 1x SD card (proxy, photos)
• Pre-Record: 3 seconds (cache)
• Functions: Waveform, False Colour, Colour Bars, Peaking, Zebra, Markers
• Lens Mount: Canon EF (changeable to EF-mount with Cinema Lock or PL-mount)

Data Links:

Input

• 2x Audio via 3-pin XLR
• 1x Audio via 3.5 mm mini jack
• 1x USB via USB-A (for GP-E2)
• 1x Remote control via 2.5 mm stereo mini jack
• 2x Storage media via CFexpress card
• 1x Storage media via SD card
• 1x Power supply DC via battery
• 1x Power supply DC via AC adapter

Output

• 1x 12G-SDI via BNC
• 1x HDMI via HDMI-A
• 1x Video Monitor via BNC
• 1x Headphone via 3.5 mm mini jack
• 1x Sync / Genlock via BNC

Others

• 1x Timecode via BNC
• 1x Lens Terminal via 23-pin connector
• 1x Canon Monitor via 12-pin connector (for LM-V2, EVF-V70 or LM-V1)

General Product Information:

• Dimensions (W x H x D): 153 x 148 x 168 mm
• Weight (body only): approx. 1.75 kg
• Operating Temperature: approx. 0° to +40° C
• Relative Air Humidity: max. 85 %, non-condensing
• Operating Voltage: 11 - 20 V DC (via included battery / AC adapter)
• Power Consumption: max. 63 W

Scope of Delivery:

• 1x Camera body
• 1x Camera grip GR-V1
• 1x Thumb rest
• 1x Microphone holder (with 4 screws)
• 1x LCD monitor LM-V2
• 1x Monitor bracket LA-V2
• 1x Handle unit
• 1x Shoulder strap SS-1200
• 1x Battery BP-A60
• 1x Battery charger CG-A20
• 1x AC adapter CA-CP200B
• 1x Power cord
• 1x Bracket for expansion unit
• 1x Cable UN-5
• 1x Instruction manual

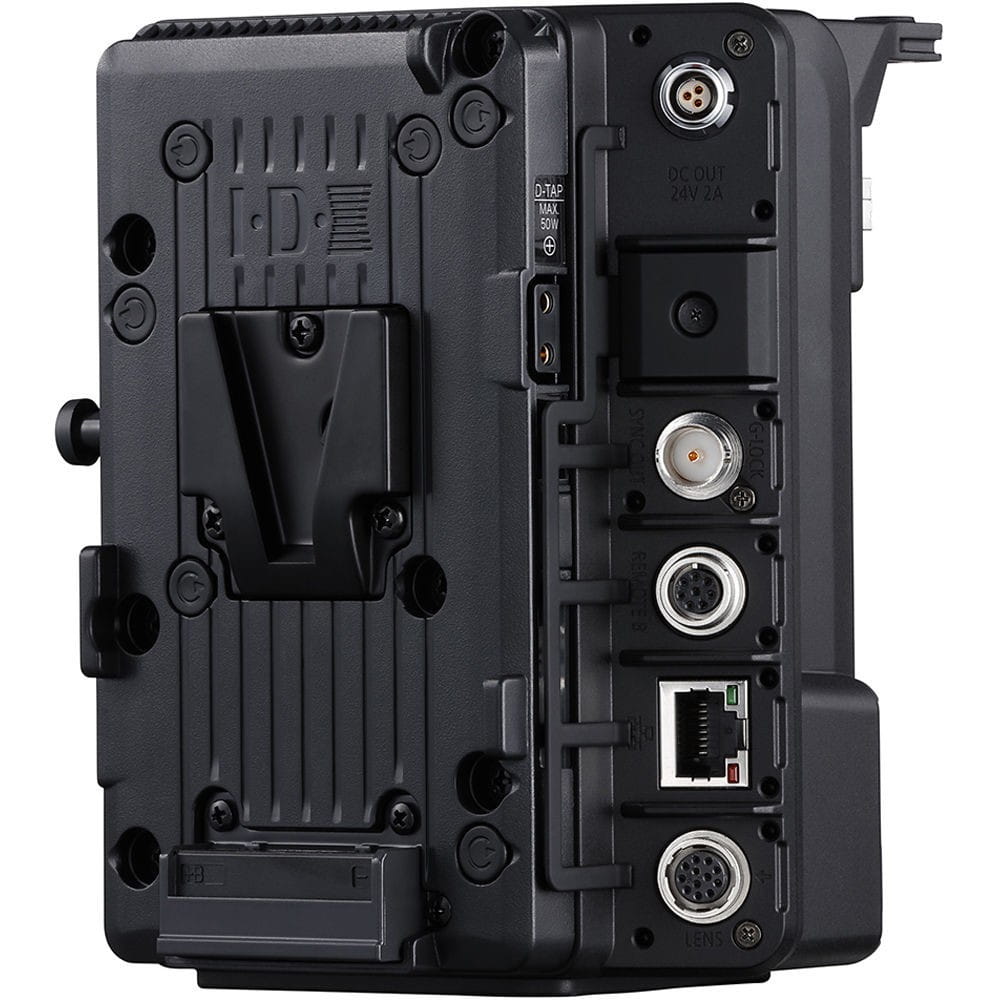

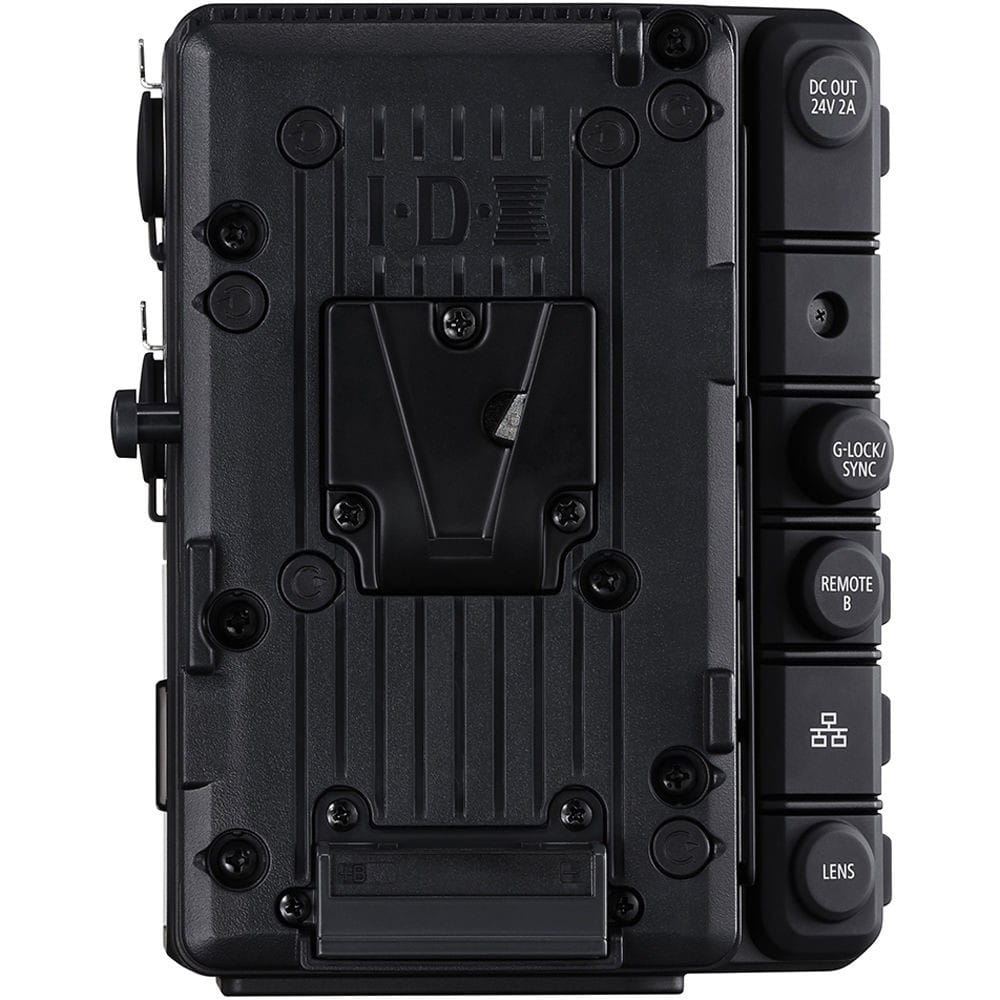

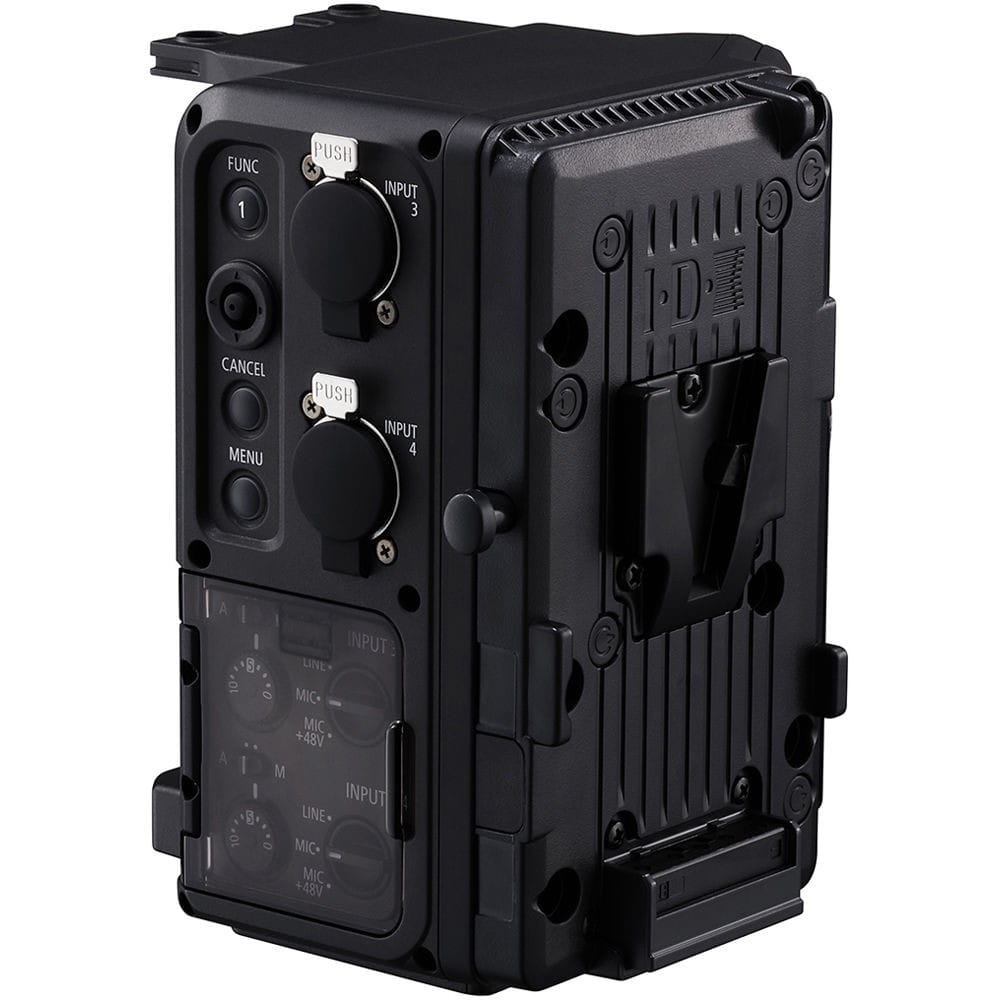

Properties EU-V2 Expansion Unit:

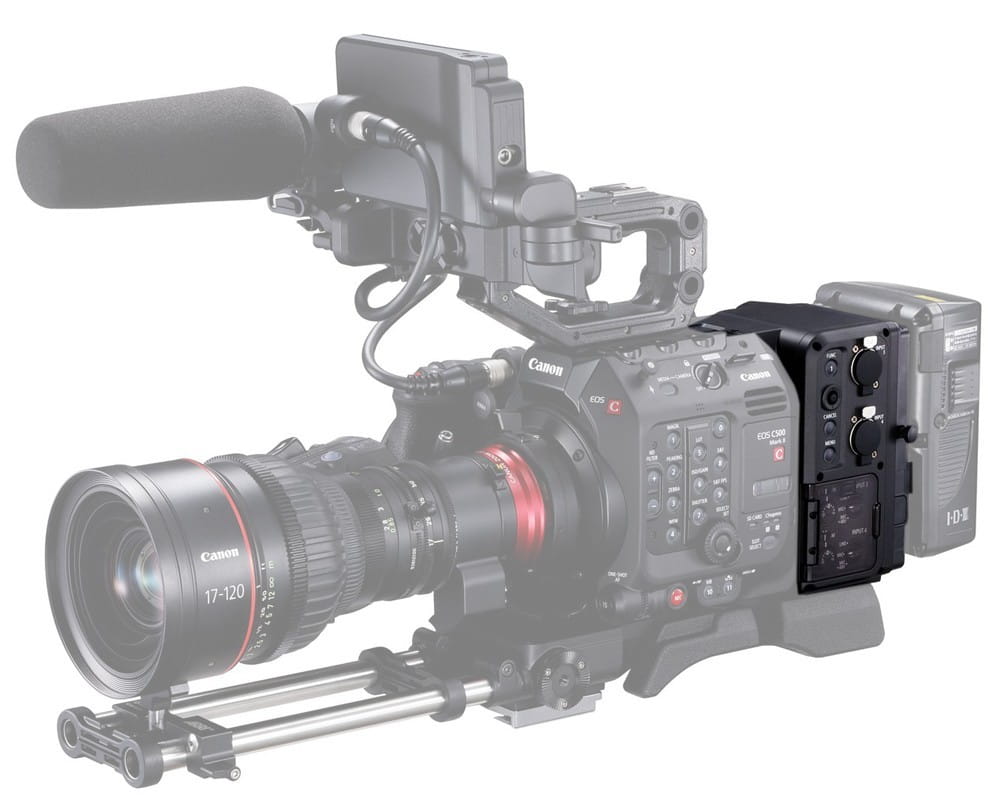

The EU-V2 is an expansion unit for the 5.9K full-frame camera EOS C500 Mark II by Canon. In addition to a V-mount battery plate with D-tap output, the unit adds a genlock / sync output, a remote control port (RS-422), an Ethernet port, two 3-pin XLR audio inputs, a 12-pin lens mount and a 24 V DC output. The EU-V2 is attached to the back of the EOS C500 Mark II and fixed easily and securely with screws.

• Compatible with the EOS C500 Mark II by Canon

Data Links:

Input

• 2x Audio via 3-pin XLR
• 1x Power supply DC via V-mount battery

Output

• 1x Genlock / Sync via BNC
• 1x Power supply DC via 2-pin D-Tap (max. 50 W)
• 1x Power supply DC via 3-pin connection (24 V, 2 A)

Others

• 1x Remote B via 8-pin connection
• 1x Ethernet via RJ-45
• 1x Lens via 12-pin connection
