Properties:
The Panasonic LUMIX DC-GH5M2E is a state-of-the-art DSLM camera designed specifically for demanding photographers and videographers. With its improved 20.3 MP MOS sensor featuring anti-reflection coating and the powerful Venus Engine processor, it delivers stunning image quality and detail. The integrated 6.5-stop dual image stabilizer ensures smooth and shake-free images even when using lenses without optical image stabilization. A highlight of the GH5 Mark II is the unlimited 4K 60p video recording in 10-bit, both internally and externally. The high-resolution, free-swiveling 3" LC display with a wide color gamut makes operation easier and allows for flexible shooting angles. The camera features improved autofocus performance with face, eye, head, body, and animal detection, making it an ideal choice for dynamic and demanding shooting situations. Thanks to wireless live streaming via RTMP/RTMPS and user-friendly settings via the LUMIX Sync App, streaming content is a breeze. USB-PD (Power Delivery) ensures continuous power supply and simultaneous battery charging, providing unlimited recording time (depending on the memory card and power supply used). Additionally, the camera supports the Active Track function of DJI gimbals DJI RS 2 and DJI RSC 2, offering additional creative possibilities.
- 20.3 MP MOS sensor with anti-reflection coating
- Improved Venus Engine processor
- Improved autofocus performance
- 4K 60p/50p 10-bit internal/external recording
- 4K 60 fps / FullHD 180 fps (VFR)
- 6.5-stop dual image stabilizer in 5-axis

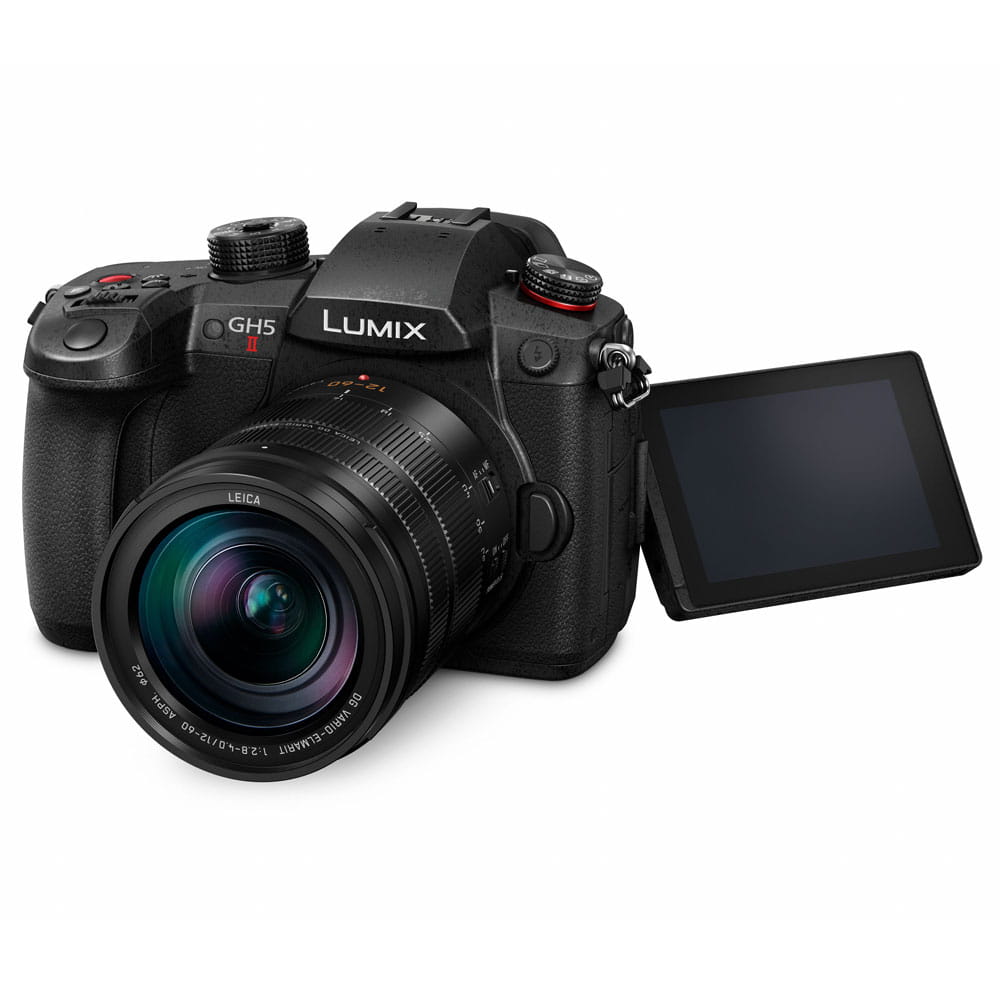

- Free-swiveling touch display
- V-Log L pre-installed
- Face, eye, head, body, and animal detection
- Anamorphic recording
- Wireless live streaming
- Unlimited video recording (depending on memory card and power supply used)
- Continuous power/charging via USB-PD
- Cinelike D2 / V2
- Tally function on display for recording (red) and streaming (blue)
- Vertical video recognition in vertical orientation
- Dust, splash, and freeze protection
- Live streaming via USB tethering & RTP/RTSP wired IP streaming (future firmware update required)
- Supports Active Track function of DJI gimbals DJI RS 2 and DJI RSC 2
Package Includes:
- 1x Panasonic Lumix DMC-GH5 II Body black
- 1x Panasonic DMW-BLK22 2200 mAh battery
- 1x Panasonic DMW-BTC15 battery charger (with USB-AC adapter)
- 1x USB cable (C-C)
- 1x USB cable (A-C)
- 1x Cable holder
- 1x Shoulder strap with GH5 II logo
- 1x Body cap
- 1x Leica 12-60 mm DG Vario-Elmarit
Technical Specifications:
Type | |
| Type | DSLM camera (Digital Single Lens Mirrorless) |
| Recording media | SD memory card / SDHC memory card* / SDXC memory card* *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC memory cards and UHS-II Video Speed Class 90 standard SDXC memory cards. |
| Lens mount | Micro Four Thirds (MFT) |
Image Sensor | |
| Type | Live MOS sensor (17.3 x 13.0 mm) |
| Effective pixels/Total pixels | 20.33 megapixels / 21.77 megapixels |
| AR coating (anti-reflection) | Yes |
| Aspect ratio/color filter | 4:3/Primary color filter |
| Dust reduction system | Image sensor shift type |
Exposure Range | |
| Exposure range | 12 stops (V-Log L) |
Still Image | |
| Recording file format | Still Image: JPEG (DCF, Exif 2.31), RAW 6K PHOTO (*¹) / 4K PHOTO (*¹): 6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2-channel)) 4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2-channel)) Extracted still images: JPEG (DCF, Exif 2.31) |
| Image aspect ratio | 4:3 / 3:2 / 16:9 / 1:1 |
| File size (pixels) | 4:3 5184 x 3888 (L)/3712 x 2784 (M)/2624 x 1968 (S)/4992 x 3744 (6K PHOTO)/3328 x 2496 (4K PHOTO) 3:2 5184 x 3456 (L)/3712 x 2480 (M)/2624 x 1752 (S)/5184 x 3456 (6K PHOTO)/3504 x 2336 (4K PHOTO) 16:9 5184 x 2920 (L)/3840 x 2160 (M)/1920 x 1080 (S)/3840 x 2160 (4K PHOTO) 1:1 3888 x 3888 (L)/2784 x 2784 (M)/1968 x 1968 (S)/2880 x 2880 (4K PHOTO) |
| Image quality | RAW/RAW+Fine / RAW+Standard / Fine / Standard |
| Color space | sRGB, AdobeRGB |
Video Recording | |
| Recording file format | MOV: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: LPCM (2-channel 48 kHz/16 bit, 48 kHz/24 bit*, 96 kHz/24 bit*)) * When DMW-XLR1 (sold separately) is attached. MP4: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: AAC (2-channel)) |
| System frequency | 59.94 Hz / 50.00 Hz / 24.00 Hz |
| Image area in videos | Full / Pixel for Pixel |
| MOV (*¹) High-res audio only with DMW-XLR1 (sold separately). | 59.94 Hz [C4K] 4096 x 2160 59.94 p, 200 Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, high-res audio) * HLG selectable. 59.94 Hz [Anamorphic 6K mode] 4992 x 3744 (4:3) 59.94 Hz [FHD] 1920 x 1080 59.94 p, 200 Mbps (4:2:2 10-bit ALL-Intra)* / 100 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, high-res audio) * HLG selectable. 50.00 Hz [C4K] 4096 x 2160
50.00 p, 200 Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, high-res audio) * HLG selectable. 50.00 Hz [4K] 3840 x 2160 50.00 p, 200 Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, high-res audio) * HLG selectable. 50.00 Hz [Anamorphic 6K mode] 4992 x 3744 (4:3) 25 p, 200 Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, high-res audio) * HLG selectable. 50.00 Hz [Anamorphic 4K mode] 3328 x 2496 (4:3) 50.00 p, 200 Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, high-res audio) * HLG selectable. 50.00 Hz [FHD] 1920 x 1080 50.00 p, 200 Mbps (4:2:2 10-bit ALL-Intra)* / 100 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, high-res audio) * HLG selectable. 24.00 Hz [C4K] 4096 x 2160 24.00 p, 400 Mbps (4:2:2 10-bit ALL-Intra)* / 150 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, high-res audio) * HLG selectable. 24.00 Hz [4K] 3840 x 2160 24.00 p, 400 Mbps (4:2:2 10-bit ALL-Intra)* / 150 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, high-res audio) * HLG selectable. 24.00 Hz [Anamorphic 6K mode] 4992 x 3744 (4:3) 24 p, 200 Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, high-res audio) * HLG selectable. 24.00 Hz [Anamorphic 4K mode] 3328 x 2496 (4:3) 24.00 p, 400 Mbps (4:2:2 10-bit ALL-Intra)* / 150 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, high-res audio) * HLG selectable. 24.00 Hz [FHD] 1920 x 1080 24.00 p, 200 Mbps (4:2:2 10-bit ALL-Intra)* / 100 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, high-res audio) * HLG selectable.
|
| MP4 (*¹) | 59.94 Hz [4K] 3840 x 2160 59.94 p, 100 Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) 59.94 Hz [FHD] 1920 x 1080 59.94 p, 28 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 50.00 Hz [4K] 3840 x 2160 50.00 p, 100 Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) 50.00 Hz [FHD] 1920 x 1080 50.00 p, 28 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 24.00 Hz – - |
Variable Frame Rate (VFR) | |
| MOV (*¹) High-res audio only with DMW-XLR1 (sold separately). | 59.94 Hz [C4K] 4096 x 2160 29.97 p (Max. sensor performance 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 59.94 Hz [4K] 3840 x 2160 29.97 p (Max. sensor performance 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 59.94 Hz [Anamorphic 4K mode] 3328 x 2496 (4:3) 29.97 p (Max. sensor performance 50 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 59.94 Hz [FHD] 1920 x 1080 59.94 p (Max. sensor performance 180 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 50.00 Hz [C4K] 4096 x 2160 25.00 p (Max. sensor performance 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 50.00 Hz [4K] 3840 x 2160 25.00 p (Max. sensor performance 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 50.00 Hz [Anamorphic 4K mode] 3328 x 2496 (4:3) 25.00 p (Max. sensor performance 50 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 50.00 Hz [FHD] 1920 x 1080 50.00 p (Max. sensor performance 180 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 24.00 Hz [C4K] 4096 x 2160 24.00 p (Max. sensor performance 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 24.00 Hz [4K] 3840 x 2160 24.00 p (Max. sensor performance 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 24.00 Hz [Anamorphic 4K mode] 3328 x 2496 (4:3) 24.00 p (Max. sensor performance 48 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 24.00 Hz [FHD] 1920 x 1080 24.00 p (Max. sensor performance 180 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) |
Streaming | |
| Protocol | RTMP / RTMPS |
| Streaming quality | NTSC (59.94 Hz) [FHD] 1920 x 1080 59.94 p, 16 Mbps* / 8 Mbps (H.264) * Not selectable when RTMPS is set. NTSC (59.94 Hz) [HD] 1280 x 720 59.94 p, 6 Mbps (H.264) PAL (50.00 Hz) [FHD] 1920 x 1080 50.00 p, 16 Mbps* / 8 Mbps (H.264) *Not selectable when RTMPS is set. PAL (50.00 Hz) [HD] 1280 x 720 50.00 p, 6 Mbps (H.264) |
Viewfinder | |
| Type | OLED Live View Finder |
| Pixels | Approx. 3.68 million pixels |
| Field of view/magnification | Approx. 100% / Approx. 1.52 x / 0.76 x (equivalent to a 35mm camera) with a 50mm lens set to infinity; -1.0 m-1, when 4:3 aspect ratio is set |
| Eyepoint/diopter adjustment | Approx. 21 mm at infinity; -1.0 m-1 / -4.0 to +3.0 (dpt) |
| Eye sensor | Yes |
| Display speed | 120/60 fps |
Rear Monitor | |
| Type | TFT LCD monitor with static touch control |
| Monitor size | Swivel, 7.5 cm, aspect ratio 3:2 |
| Pixels | Approx. 1.84 million dots |
| Field of view | Approx. 100% |
Focus | |
| Type | Contrast AF system |
| DFD technology | Yes |
| Focus mode | AFS (Single) / AFC (Continuous) / MF |
| AF mode | Automatic detection (face, eye, body, animal) / tracking / 225-area / zone (vertical/horizontal) / zone (square) / zone (oval) / 1-area+ / 1-area / pinpoint / manual 1, 2, 3 (Full area touch available) (Scalable AF area size and flexible AF position) |
| AF detection range | EV -4–18 (F2.0, ISO100 equivalent, AFS) |
| Manual AF setting | AF sensitivity, AF area switch sensitivity, moving object prediction |
| AF assist lamp | Yes |
| AF lock | Set the Fn button to AF lock in the custom menu |
| Post Focus/ Focus Stacking | Yes/Yes |
| Focus ring control | Nonlinear / Linear * When using a compatible lens. |
| Others | Focus peaking, 1-area AF movement speed, AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus/Shutter Priority, Focus switching for Vert./Hor., AF/AE lock, AF+MF, MF assist, MF guide, Focus ring lock, AF mode display on/off, AF area position, Shutter AF, half-press release, Quick AF, Continuous AF (in video recording), Eye sensor AF, Loop focus frame, AFC start point (225-area), Touch shutter, Touch AF/AE function, Touchpad AF, Focus resume |
Exposure Compensation | |
| Exposure metering system | 1,728-zone multi-pattern sensing system |
| Light metering mode | Multiple / Center weighted / Spot / Highlight weighted |
| Metering range | EV 0–18 (F2.0 lens, ISO 100 equivalent) |
| Shooting mode | Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure / Creative Video / Manual 1, 2, 3 / Intelligent Auto |
| ISO sensitivity (standard output sensitivity) | Still image: Auto / 100 (extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 (changeable to 1/3 EV step) Creative Video mode: Auto / 100 (extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 (changeable to 1/3 EV step) |
| Exposure compensation | 1/3 EV step, +/-5 EV (+/- 3 EV for video) |
| AE lock | Set the Fn button to AE lock in the custom menu |
Image Stabilization System | |
| Body stabilizer | 5-axis / 6.5 stops* * Based on the CIPA standard [yaw/pitch direction: focusing distance = 60 mm (equivalent to f = 120 mm on a 35mm camera), when H-ES12060 is used. |
| Dual I.S | 6.5 stops* Dual I.S. 2 compatible * Based on the CIPA standard [yaw/pitch direction: focusing distance f = 140 mm (equivalent to f = 280 mm on a 35mm camera), when H-FS14140 is used. |
White Balance | |
| White balance | AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White setting 1, 2, 3, 4 / Color temperature settings 1, 2, 3, 4 |
| White balance setting | Blue/Yellow emphasis, Magenta/Green emphasis |
| Color temperature settings | 2500-10000K in 100K |
Shutter | |
| Type | Focal-plane shutter |
| Shutter speed | Still image: Bulb (max. 30 minutes), 1/8,000–60 Electronic front curtain shutter: Bulb (max. 30 minutes), 1/2,000–60 Electronic shutter: Bulb (Max. 60 minutes), 1/16,000–60 Video: 1/16,000–1/25 Creative Video M mode / MF mode: 1/16,000–1/2 |
| Self-timer | 10 sec., 3 images / 2 sec. / 10 sec. / Manual |
| Remote control | Remote control by DMW-RS2 (sold separately) |
| Silent mode/shutter type | Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic + NR) |
Bracketing | |
| Auto bracketing | 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. +/-3 EV, single/continuous shooting |
| Aperture bracketing | 3, 5 or all positions |
| Focus bracketing | 1 to 999 images, focus steps can be set in 10 levels |
| White balance bracketing | 3 images in the Blue/Yellow axis or in the Magenta/Green axis, color temperature setting |
Continuous Shooting | |
| Continuous shooting speed | Mechanical shutter / Electronic front curtain shutter AFS/MF: H: 12 fps, M: 7 fps (with Live View), L: 2 fps (with Live View) Electronic shutter AFS/MF: H: 12 fps, M: 7 fps (with Live View), L: 2 fps (with Live View) |
| Number of possible recordings | RAW / RAW + JPEG: Over 108 images JPEG: Over 999 images (with an SD memory card of the speed class "UHS-II UHS Speed Class 3 (U3)" in card slot 1.) * When recording is performed under the test conditions specified by Panasonic. |
6K PHOTO (*¹) / 4K PHOTO (*¹) | |
| Continuous shooting speed | 6K PHOTO: 30 fps 4K PHOTO: 60 fps, 30 fps |
| Exif information | Yes (Each JPEG image cropped from the 6K/4K burst file complies with the EXIF standard.) |
Time Lapse Recording | |
| Time lapse recording | Yes |
Stop Motion Animation | |
| Stop motion animation | Yes |
Flash | |
| Flash type | External TTL flash (sold separately) |
| Flash mode | Auto* / Auto/Red-eye reduction* / Forced On / Forced On/Red-eye reduction / Slow Sync. / Slow Sync./Red-eye reduction / Forced Off * Only for iA. |
| Flash synchronization | 1st Sync, 2nd Sync |
| Flash output | 1/3 EV step ±3 EV |
| Sync speed | Less than 1/250 second |
| Wireless control | Yes (when using DMW-FL200L/FL360L/FL580L (sold separately)), wireless channel: 1-channel/2-channel/3-channel/4-channel |
| Flash sync socket | Yes |
Extra Teleconverter | |
| Extra teleconverter | 2.0 x (EX S), 1.4 x (EX M) *For still image recording only. |
Photo Style | |
| Photo style | Standard / Vivid / Natural / L. Classic Neo Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log L / Hybrid Log Gamma / My Photo Style 1- 10 |
| Image adjustment | Contrast / Highlight / Shadow / Saturation / Hue / Color Tone / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / ISO / WB * The settings that can be adjusted depend on the photo style mode. |
Filter | |
| Filter | Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine* *For photos only. |
Video Recording Functions | |
| Master Pedestal Level | 31 steps |
| Luminance | 8-bit: 0-255 / 16-235 / 16-255 10-bit: 0-1023 / 64-940 / 64-1023 |
| Waveform monitor/Vectorscope | Selectable |
| LUT assistant | Monitor / HDMI |
| HLG assistant | Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF) |
| Anamorphic de-squeeze display | 2.0 x / 1.8 x / 1.5 x / 1.33 x / 1.30 x / OFF |
| Synchro scan | Yes |
| Timecode | Count methods: Rec Run/Free Run, Timecode mode: Drop Frame/Non-Drop Frame (when NTSC is set to 59.94 Hz). |
| SS/Gain | Shutter Speed/ISO, Angle/ISO / Shutter Speed/dB |
| Color bars/1 kHz test tone | Yes (SMPTE / EBU / ARIB) / Yes |
| Knee control | Yes (in Like709 mode) |
| Other functions | Red frame display during video recording, Blue frame display during streaming |
Vertical Information | |
| Information | Still Image / Video (ON/OFF) |
Level Gauge | |
| Level gauge | Yes |
Function Button | |
| REC | Exposure compensation / Sensitivity / White balance / Photo style / Metering mode / Aspect ratio / Image quality / Image size / Spot metering with 1-shot / Long exposure NR / Min. shutter speed / 1-shot RAW+JPG / i.Dynamic / Filter effect / One Push AE / Touch AE / Exposure mode / Synchro scan / AF mode / Manual AF setting (Photo) / Manual AF setting (Video) / Focus peaking / Focus peaking sensitivity / 1-area AF movement speed/ Focus ring lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / AF area position / Focus area setting / Flash mode / Flash setting. / Wireless setup (Flash) / Mode selection / 1-shot "6K/4K PHOTO" / Bracket / Silent mode / Image stabilizer / Shutter type / Ex. Tele Conv. / Live View Composite / Video recording format / Recording file format / Video recording quality / Video recording quality (My List) / Variable frame rate / Timecode display / Sound record level display / Mic level limiter / Mic level adjustment / Mic level limiter / XLR Mic Adapter setting / Special Mic Directivity IS / E-Stabilizer (Video) / Boost I.S. (Video) / Image area of video / Focus transition / Live cropping / Q.MENU / Rec./Play switch / Video rec. / LVF/Monitor switch / Operation lock / Dial operation switch / Preview / Constant preview / Aperture effect preview / Level gauge / Histogram / Luminance spot meter / Frame marker / Photo gridline / Live View boost / Monochrome Live View / Night mode / LVF/Monitor display / Video priority display / Zebra pattern / LUT assist (monitor) / LUT assist (HDMI) / LUT selection / HLG View Assist (monitor) / HLG View Assist (HDMI) / Overlay / I.S. Status scope / WFM/Vectorscope / Anamorphic de-squeeze display / Color bars / Focus ring control / Zoom control / Step zoom / Zoom speed / Card slot selection / Off (Hold down disable) / Reset to default |
| PLAYBACK | AF Point Magnifier / LUT assist (monitor) / HLG View Assist (monitor) / Anamorphic de-squeeze display / RAW Processing / 6K/4K PHOTO Bulk saving / Delete single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec./Playback switch / LVF/Monitor switch / Video rec. / Night mode / Card Slot Change / Wi-Fi mode / Send Image (smartphone) / LUT assist (HDMI) / HLG View Assist (HDMI) / 6K/4K photo playback / No setting / Off (Hold down disable) / Reset to default |
Printing | |
| Printing | Compatible with PictBridge |
Connectivity | |
| USB | SuperSpeed USB 3.1 Gen1 Type-C |
| HDMI (*²) | HDMI HDMI Type A Monitor through 4:2:2 10-bit (When [Rec Quality] is set to [4:2:2 10-bit] or [4:2:0 10-bit]) Playback 59.94 Hz: Auto, C4K/60p, C4K/30p, 4K/60p, 4K/30p, 1080p, 1080p, 720p, 480p |
| Remote control input | 2.5 mm diameter |
| Microphone | Stereo, Wind noise filter: OFF/Low*/Standard/High *When DMW-MS2 (sold separately) is attached. |
| External microphone input/external audio device input | 3.5 mm diameter for external microphone/external audio devices Mic (Plug-in Power)/Mic./Line-in selectable. Stereo / Lens auto / Shotgun / Super Shotgun / Manual when attaching DMW-MS2 (sold separately) selectable. |
| XLR microphone | Yes with DMW-XLR1 (sold separately) |
| Speaker | Mono |
| Headphone output | 3.5 mm diameter |
| SD card slot | Slot 1, Slot 2 |
Wireless | |
| Wi-Fi | 2.4 GHz (STA/AP) (IEEE802.11b/g/n) 5 GHz (STA) (IEEE 802.11a/n/ac) *5 GHz Wi-Fi is not available in some countries. |
| Bluetooth | Bluetooth® v4.2 (Bluetooth Low Energy (BLE)) |
Dust and Splash Resistant | |
| Dust and splash resistant | Yes. * Dust and splash resistant does not guarantee that damage will not occur if the camera comes into direct contact with dust or water. |
Power Supply | |
| Battery | Li-ion battery pack (7.2 V, 2200 mAh, 16 Wh) (included) USB power supply, USB charging, USB power delivery |
| Battery life (CIPA standard) | Approx. 400 images, 1200 images (power-saving LVF mode*) with H-ES12060 / DMW-BLK22 Approx. 410 images, 1200 images (power-saving LVF mode*) with H-FS12060 / DMW-BLK22 * Under the test conditions specified by Panasonic based on the CIPA standard. When the time to enter sleep mode is set to 1 sec. |
| Continuous recording time (video recording) (*¹) | MP4 [4K/60p]: Approx. 120 min. with H-ES12060 / H-FS12060 MP4 [FHD/60p]: Approx. 140 min. with H-ES12060 / H-FS12060 |
| Actual recording time (video recording) (*¹) | MP4 [4K/60p]: Approx. 60 min. with H-ES12060 / H-FS12060 MP4 [FHD/60p]: Approx. 70 min. with H-ES12060 / H-FS12060 |
| Battery grip | DMW-BGGH5 (sold separately) |
Operating Environment | |
| Operating temperature (*³) | 10°C to 40°C |
| Operating humidity | 10% RH to 80% RH |
General | |
| Dimensions | Approx. 138.5 x 98.1 x 87.4 mm (excluding protruding parts) |
| Weight | Approx. 727 g (1 SD memory card, battery, body) Approx. 647 g (body only) |
| Note | (*¹) About video recording
(The SD speed class is the standard regarding continuous writing.)
You can continue recording without interruption even if the file size exceeds 4 GB or the duration exceeds 30 minutes. However, the video file will be divided and recorded/played back separately.
The original video cannot be played on a standard TV, Blu-ray Disc™ recorder, or Blu-ray Disc™ player.
(*²) Use an HDMI 2.0 cable with the HDMI logo and described as "4K compatible" for video output with [C4K/60p] [C4K/50p] [4K/60p] [4K/50p]. (*³) The camera may stop recording if the temperature is too high or too low compared to the recommended operating temperature: -10 to 40 degrees Celsius. |
