Panasonic Lumix GH-7 (Body only)

Properties:

The Panasonic LUMIX DC-GH7E is a mirrorless system camera with a 25.2 MP BSI CMOS sensor with phase detection autofocus, which offers a dynamic range with more than 13 f-stops and a dynamic range boost throughout the entire ISO range. The Phase Hybrid AF not only allows you to focus on a subject, but also to prioritize a specific area, such as the front of a vehicle, possible. Additionally, the 7.5-stage 5-axis Dual I.S. Image stabilizer to reduce camera shake, which occur at longer shutter speeds or in the telephoto range. The LUMIX GH7 allows internal Apple ProRes RAW and, for the first time, 32-bit float recording*, so that it is no longer necessary to adjust the sound recording levels during recording. Furthermore, the workflow from recording to post-production has been optimized. This is achieved through the integration of the LUMIX REAL TIME LUT function, proxy recording, support for Adobe's Frame.io as well as open gate recording for flexible framing implemented for social media platforms. With the expansion of the REAL TIME LUT function, the LUT library functionality has also been improved, so that up to 39 LUTs can now be stored in the camera. Automatic identification of the photo style is also implemented. Developing your own LUT color profiles is possible via the LUMIX Lab app. There is also a native camera-to-cloud integration in Frame.io, which allows photos and images to be uploaded to the platform with an internet connection via Wi-Fi or USB tethering and allows immediate access to them. The live streaming is configured via the LUMIX Sync app, which sets up the RTMP/RTMPS stream to various platforms. In addition, a wired LAN connection is also possible via a USB Ethernet adapter**.

• DSLM, MFT interchangeable lens camera
• 25.2 MP BSI CMOS sensor
• 13+ stops of dynamic range
• Improved AF performance with PDAF (Phase Detection Autofocus)
• Image stabilization 5-axis dual I.S. 7.5 levels
• Internal Apple ProRes RAW and 32-bit float recording*
• No need to adjust sound recording levels during recording
• Unlimited recording time when used with CFexpress cards**
• Improved image quality, optimized workflow from recording to post-production
• Advanced LUMIX REAL TIME LUT function: automatic. Identifying the photo style,
• Improved LUT library functionality, stores up to 39 LUTs in camera
• Low bitrate proxy recording
• Adobe's Frame.io support for native camera-to-cloud integration
• Open-gate recording for flexible framing for any social media platform
• Coupling and editing via LUMIX Lab App
• Wireless streaming via LUMIX Sync app or
• Wired via a LAN connection
• Video assistance functions (waveform monitor, frame display, etc.)

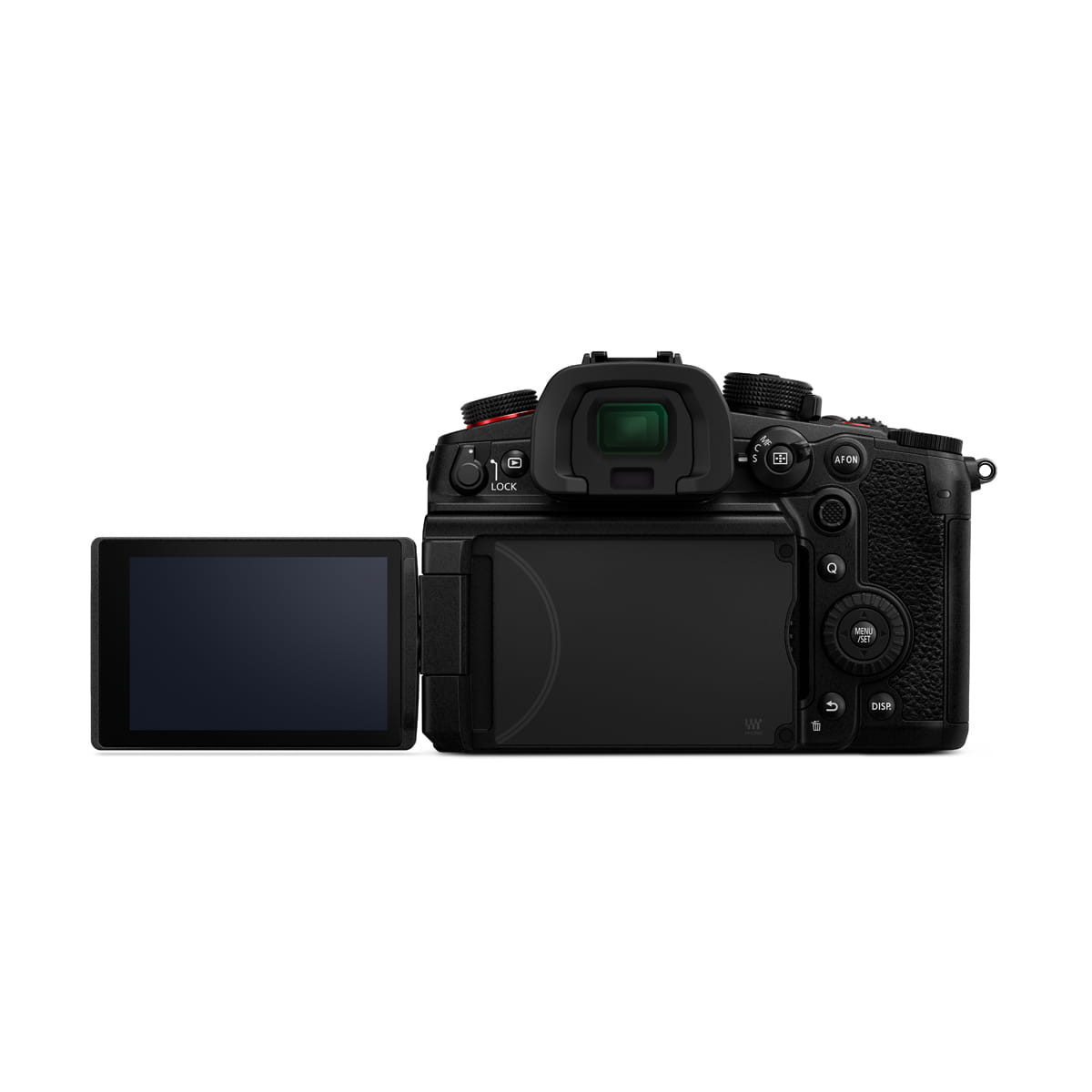

• Swivel and foldable monitor
• Robust design

• *This requires an XLR adapter DMW-XLR2. This is available separately
• **When the resolution and frame rate are set to C4K/60p or lower. The camera may stop recording
• If it exceeds or falls below the recommended operating temperature (-10 to 40 degrees), the resolution is higher than C4K, the frame rate is higher than 60p, or is set to ProRes to protect the camera body.

Scope of Delivery:

• 1x Panasonic LUMIX DC-GH7E (Body only)
• 1x battery (DMW-BLK22)
• 1x charging cradle
• 1x hot shoe cover
• 1x carrying strap
• 1x housing cover
• 1x eyecup
• 1x BNC adapter cable

Technical Specifications:

Sensor
Pixel brutto/netto	26.5/25.2 MP sensor with AR coating and without low-pass filter / 100 MP high-res recording from the hand
Housing stabilizer	5-axis, dual I.S. compatible (7.5 levels)
Recording
File Format	Photo: JPEG (DCF, Exif 2.31), RAW, Video: H.264, H.265/HEVC, Apple ProRes, Apple ProRes RAW
Audioformat	Linear Format: 2ch Stereo 48kHz/24-bit, 96kHz/24-bit*; 4ch Mono 48kHz/24-bit Float Format (mit DMW-XLR2): 2ch Stereo 48kHz/32-bit, 96kHz/32-bit; 4ch monaural 48kHz/32-bit [2] (*Φ3.5mm Microfon or DMW-XLR2)
Aspect ratio	4:3, 3:2, 16:9, 1:1
color space	sRGB, AdobeRGB
Image size photo	Max. 5.776 x 4.336 Pixel, or 11.552 x 8.672 Pixel in HighRes
Image Size Video	[5.8K] 5760x4320 (4:3) / [5.7K] 5728x3024 (17:9) / [4.4K] 4352x3264 (4:3) / [C4K] 4096x2160 / [4K] 3840x2160 / [FHD] 1920x1080
Autofokus
Typ Autofocus	Phasen Detection AF system (779-Points) / Contrast AF System
Types of focusing	AF-S (once), AF-C (continious), MF (man.), Detection: Human (Eye) / Animal (Eye) / Car / Motor Cycle / Train / Airplane
AF Modus	Tracking / Full Area AF / Zone (horizontal/vertikal) / Zone / 1-Area+ / 1-Area / Pinpoint
Exposure control
Light measurement characteristics	Intelligent multi-field / center emphasis integral / spot metering
Model dial	Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Creative Video (P/A/S/M)* / Custom 1, 2, 3, 4 / Intelligent Auto
ISO	Photo: 100-25.600 (Ex50) / Video: 100+12800 (Ex50)
Exposure compensation	± 5 EV in 1/3 EV increments (± 3 EV for video recording)
Auto exposure bracketing	3, 5 or 7 images, in 1/3, 2/3 or 1 EV step
White Balance / Image Styles
Settings	Auto (+warm/cold)/Daylight/Clouds/Shadow/Incandescent/Flash/Manual Balance 1,2,3,4/Color Temperature 1,2,3,4
Image styles/filters	16 including Vivid, Flat, Leica Monochrome, V-Log, Real Time LUT / 8 including Retro, High-Key
LUT library	Format: .vlt, .cube / Vlog_709 / Set 1-39 (Set 1-3: Sample LUT) / REAL TIME LUT
Clasp
shutter speed	mechanic: 1/8.000 – 60 s, Bulb (max. 30 Min.), electric: 1/32.000 s – 60 s, Video: 1/25.000 s – 1/8 s
Self-timer / remote control	10Sek., 3 Pictures / 2Sek / 10Sek / Custom Time; Remote with WiFi or Cable Remote (2,5mm)
Serienbelichtung
Mechanic	14 B/s (AFS); 10 B/s (AFC and Live View) RAW+JPEG; More than 170 Pictures (CF Express Card)
Electronic	75 B/s (AFS); RAW / RAW+JPEG : ca. 190 Pictures
Blitz
Flash	External TTL flash (optionally available) / 7 modes
X-Syncro	less than 1/250 s
Flash exposure compensation	± 3 EV in 1 / 3 EV steps
Hot shoe / synchronous connection	• / •
Video-Functions
Log Recording	V-Log (13+ Steps by Sensor Output ≤ 60fps; 12+ Steps if Sensor Output is > 60fps)
Proxy Video / Frame.io	• / •
Streaming	Wi-Fi / USB Tethering / Wired LAN
ProRes RAW (HQ) [1]	5,7K: 29.97p / 25.00p / 24.00p / 23.98p
Apple ProRes 422 HQ / 422	5,7K: 29.97p / 25.00p / 24.00p / 23.98p
4:2:2 10-bit	C4K/4K: 59.94p / 50.00p/ 47.95p / 29.97p / 25.00p / 24.00p / 23.98p; FHD: 239.76p / 200.00p / 120.00p / 119.88p / 100.00p / 47.95p / 59.94p / 50.00p / 29.97p / 25.00p / 24.00p / 23.98p
4:2:0 10-bit	5,7K: 59.94p / 50.00p / 48.00p / 47.95p / 29.97p / 25.00p / 24.00p / 23.98p; C4K/4K: 120.00p / 119.88p / 100.00p / 59.94p / 50.00p / 29.97p / 25.00p / 24.00p / 23.98p; FHD: 239.76p / 200.00p / 120.00p / 119.88p / 100.00p / 47.95p / 59.94p / 50.00p / 29.97p / 25.00p / 24.00p / 23.98p
Open Gate	5,8K (4:2:0 10-bit): 29.97p / 25.00p / 24.00p / 23.98p; 4,4K (4:2:0 10-bit): 59.94p, 50.00p
Variable Frame Rate	5,7K 1-60fps; C4K/4K: 1-120fps; FHD: 1-300fps
Recording time limit	unlimited (up to 35 degrees, TBC)
Professional video features	System Frequencies (59.94 / 50.00 / 24.00Hz) / Hybrid Log Gamma for 4K HDR Video / V-Log & V-Gamut / 709 Like Gamma & Knee Control / Luminanz-Level 64-1023 / 64-940 / 0-1023 (10bit) / Black Level Level / Time Lapse Video
Supporting video features	Tally Light (Front-&Backside) / Aufnahme-Rahmen / Focus Transition / Waveform & Vectorscope / Farbbalken / Testton / LUT’s mit Vorschau / HLG-Vorschau-Assistent / Anamorph-Entstauchung / Rahmen-Markierung / Safety Zone / lineare Fokussierung mit Einstellung des Drehwinkels / Timecode IN/OUT über mitgel. BNC Adapter / Synchro Scan
Bedienung
Monitor	LCD-Touchscreen, 7,6 cm (3,0˝), 3:2 Format, 1,84 MP, frei schwenkbar und kippbar, 100% Bildfeld
Viewfinder	OLED, 3,68 MP, 0,76x KB, View 100%, 60fps, Eyesensor
WiFi / Bluetooth	WiFi: 2.4GHz, 5GHz Bluetooth: BLE Bluetooth Low Energy
Toughness	Dust/splash water/cold protection; Magnesium housing, built-in fan
Menue language	16, u.a.: German, English, Spanish, Turkish
Record Media	CF Express Typ B Cardslot, SDXC Cardslot UHS-II compatible
Connections	USB Type C (USB 10 Gbps) HDMI Type A Microphon (3,5 mm) Headphone (3,5 mm) DMW-XLR1/2-Adapter Remote (2,5mm) Flash-Synchro
Power Supply
Battery	Li-ion Battery (7.2V, 2200mAh, 16Wh, DMW-BLK22) / USB Power Supply, USB Charging
Generally
Size	13,8 x 10 x 10 cm
Weight	ca. 805 g (Body with battery und SD-Card)
Software	LUMIX Lab, LUMIX Sync, LUMIX Tether, Silkypix (Download)
Remarks	[1] Recording on the SD card is not possible. [2] For a digital camera with an interchangeable lens, from June 5, 2024. When used with the XLR adapter DMW-XLR2 (sold separately). [3] Dynamic Range Boost is not enabled when recording HFR/VFR video at 61 frames per second or higher or using SH burst shooting
