Sony PXW-Z200
- Open text field 1: PXWZ200B.CEC
Contact
Our experts are there for you:
Mo. - Fr.: 9am to 6pm
+49 (0) 040/557624-50
Contact form
[email protected]
Company
Properties:

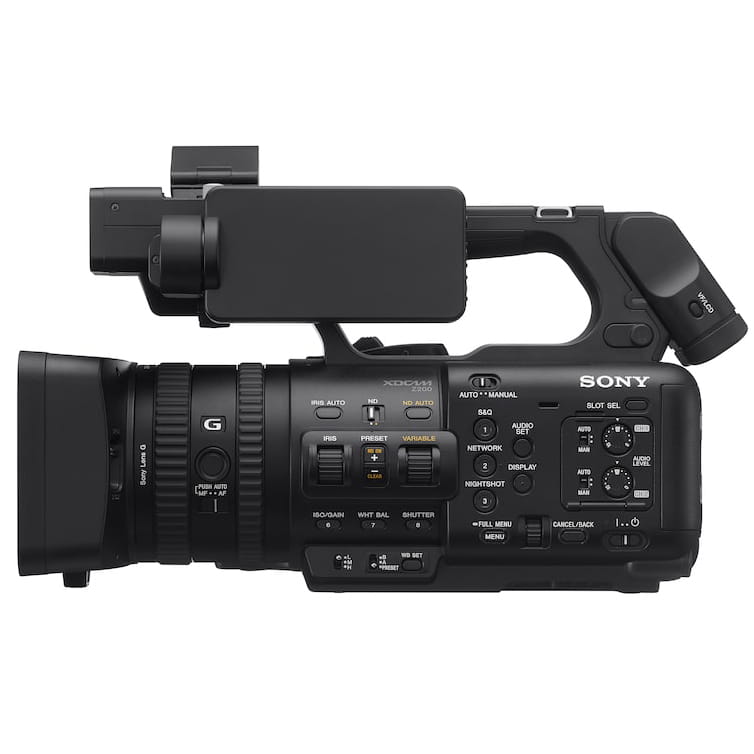

The Sony PXW-Z200 is a compact handheld camcorder equipped with a multi-layer Exmor RS™ CMOS sensor type 1.0 with approximately 14.0 megapixels (effective) and a built-in lens with 20x optical zoom and an integrated image stabilizer. The "Clear Image Zoom" technology allows for an optical zoom of 24-480 mm (equivalent to 35mm full frame), with a 30x zoom achievable for 4K recordings and a 40x zoom for FullHD. The aperture ranges from F2.8 (wide) to F4.5 (telephoto). The Z200 supports the XAVC S-I format (from June 2025), providing 10-bit 4:2:2 recordings in the highest quality for 4K (QFHD) and is ideal for post-production. The camcorder features numerous connections, including 12G-SDI In/Out, TC In/Out for proxy recordings, HDMI (Type A), USB-C, LAN, and Remote Terminal for external devices. The camera is also compatible with the CBK-RPU7 remote production unit (sold separately), which allows high-quality transmission with low latency over SDI. WLAN integration with 2.4 GHz and 5 GHz enables high-quality streaming via the Sony C3 Portal or XDCAM Pocket, supporting RTMP/RTMPS and SRT protocols. Remote control and signal monitoring are possible through the free Monitor&Control app. The camera features an automatic framing function that automatically tracks and keeps detected human subjects in focus. The PXW-Z200 impresses with its user-friendly handling, balanced weight distribution, and lightweight magnesium alloy body. It also includes a precise 3.5-inch LCD monitor and an OLED viewfinder of type 0.39, two independent rings for focus and zoom (aperture control available from June 2025), and two wheels for IRIS and ND variables. Additional features include an automatic ND function, two memory card slots for CFexpress Type A and SD, and support for up to 4-channel audio. The camera is equipped with an internal fan.
- Compact handheld camcorder
- Multi-layer Exmor RS™ CMOS sensor type 1.0 with approximately 14.0 megapixels
- Built-in lens
- 20x optical zoom from 24-480 mm
- Built-in image stabilizer
- "Clear Image Zoom" technology
- 4K recordings with 30x zoom and 40x zoom in FullHD
- Aperture range from F2.8 (wide) to F4.5 (telephoto)
- XAVC S-I format (from June 2025)
- 12G-SDI In/Out, TC In/Out for proxy recordings, HDMI (Type A), USB-C, LAN, and Remote Terminal
- Compatible with CBK-RPU7 remote production unit (sold separately)
- WLAN integration with 2.4 GHz and 5 GHz
- Protocols RTMP/RTMPS and SRT
- Free Monitor&Control app
- Automatic framing function
- 3.5-inch LCD monitor
- OLED viewfinder type 0.39
- Two independent rings for focus and zoom (aperture control available from June 2025)
- Two wheels for IRIS and ND variables
- Automatic ND function
- Two memory card slots
- Support for up to 4-channel audio
- Internal fan
Scope of Delivery:
- 1x Sony PXW-Z200
- 1x Power supply
- 1x Power cable
- 1x Battery charger
- 1x Battery
- 1x LCD sun visor
- 1x Sun visor
- 1x Eyepiece
- 1x Microphone holder
- 1x Cold shoe adapter
Technical Specifications:
lens | |
| Zoom factor | 20-small |
| Aperture | F2.8 - F4.5 |
| Focal length | f = 7.71 - 154.21 mm, f = 24 - 480 mm (equivalent to 35 mm camera) |
| Focus range (from the front of the lens) | ca. 10 mm bis ∞ |
| Filter diameter | 72 mm |
Camera components | |
| Sensor (type) | Exmor RS CMOS-Sensor Typ 1.0 (13,2 mm x 8,8 mm) |
| Number of pixels (effective) [ 1 ] | Film: ca. 14.0 Megapixel max. |
| Number of pixels (total) | ca. 20,9 Megapixel |
| Optical low-pass filter | And |
| Integrated ND filter | linear variable ND (1/4 ND - 1/128 ND) |
| Minimum light intensity | 1.2 lux (typical) (3840 x 2160/29.97 mode, F2.8, +36 dB gain, SS=1/30 s, BaseLook = ITU709) |
| Reinforcement | -3 to 36 dB (every 1 dB) |
| White balance | 2.000 K - 15.000 K |
| Base-Optics | S-Kineton, ITU709, 709tone, s709, 709(800 %), S-Log3, HLG (Live/Mild/Natürlich) |
| Lens compensation | Peripheral shading, chromatic aberrations, distortion |
Recording-System (Film) | |
| Video compression | XAVC S: MPEG-4 AVC/H.264 XAVC HS: MPEG-H HEVC/H.265 |
| Audio recording format | LPCM 4-Kanal (48 kHz 24 Bit) |
| Film function | |
| Slow- & Quick-Motion-Funktion | And |
| Proxy recording | And |
| TC/UB | And |
| RAW output | - |
| Memory card slot | Slot A: Multi Slot for SD (UHS-I/II) memory card / CFexpress Type A card Slot B: Multi Xlot for SD (UHS-I/II) memory card / CFexpress Type A card |
Focus system | |
| Type | Fast Hybrid AF (Phase detection AF/Contrast detection AF) |
| Focus point | Movies: max. 475 points (phase detection AF) |
| Focus detection target | Human |
| Additional features | AF Subj. Shift Sensitivity, AF Transition Speed, AF Assist |
Exposure control | |
| ISO sensitivity | Movies: ISO 250 - 16000 equivalent (with SDR reset look), Auto (ISO 250 - 16000, selectable lower and upper limits) |
Viewfinder | |
| Type | 1.0 cm (0.39 type) electronic viewfinder (XGA OLED) |
| Number of points | 2,359,296 points |
| enlargement | approx. 1.07x (35mm camera equivalent: approx. 0.70x) with 50mm lens at infinity, - 1 m -1 ; |
| Diopteranpassung | -4,0 - +3.0 m-1 |
| Eye Point | approx. 22 mm from the eyepiece lens at - 1 m -1 (CIPA standard) |
| Selecting the frame rate in the Finder | - |
LCD screen | |
| Type | 8.8 cm (3.5-type) TFT type |
| Touchpanel | And |
| Number of points (total) | 2,764,800 points |
| Clear Image Zoom | Film: ca. 1,5x (4K), ca. 2x (HD) |
Shutter | |
| Type | electronic shutter |
| Shutter speed | 1/8000 s bus 64 F |
| Slow motion and time lapse (S&Q) | And |
| Electronic shutter curtain | - |
Image stabilization | |
| Type | Lens shift mechanism and electronic |
| Modus | Film: active / Default: Off |
Interfaces | |
| PC interface | Mass storage / MTP |
| Multi / Micro-USB-Terminal [2] | - |
| USB-C-Terminal | Yes (SuperSpeed USB 5 Gbps (USB 3.2) compatible) |
| NFC | - |
| Sync. Terminal | - |
| Wireless LAN (integrated) | Ja (Wi-Fi kompatibel, IEEE 802.11a/b/g/n/ac (2.4 GHz Band/5 GHz Band)) [3][4] |
| Bluetooth | Ja (Bluetooth Standard Version 5.0 (2,4 GHz-Band) |
| HDMI output | HDMI port (Type A) |
| Multi-Interface-Shoe [5] | Yes, with digital audio interface |
| Built-in microphone | Built-in, Stereo |
| XLR Audioeingang | 3.5 mm Stereo Mini Jack, 2x XLR 3-pin (Female) |
| Headphone jack | Ja, 3,5-mm-Stereo-Klinkenbuchse |
| Remote control (wireless) | Yes, via Bluetooth remote control |
| Remote Terminal | Ja, 2.5-mm-Stereo-Minilinkenstecker |
| SDI output | BNC, 12G-SDI, 6G-SDI, 3G-SDI (Level A/B), HD-SDI |
| DC input | And |
| Timecode input/output | BNC, TC In / Out, switchable |
| WLAN | Ja, 1000BASE-T, 100BASE-TX, 10BASE-T |
| Features | FTP transfer function (wired LAN (USB-LAN), USB tethering, Wi-Fi) |
Network streaming | |
| Video data format | MPEG-4 AVC/H.264 MPEG-H HEVC/H.265 |
| Video resolution | 3840 x 2160 [6] 1920 x 1080 1280 x 720 |
| Audio data format | AAC-LC 2 channels (16-bit 48 kHz) |
| Protocols | RTMP, RTMPS, SRT |
Audio | |
| microphone | integrated, stereo |
| Speakers | integrated, monaural |
Power supply | |
| Battery | BP-U35, BP-U70, BP-U100 |
| Power requirement | DC 19.5V |
| Movies (continuous recording) | approx. 90 min (when used with BP-U35, normal power consumption) |
| Akku Laden Interns | - |
| USB power supply | Yes, with USB-C port. USB-PD compatible |
Power consumption | |
| Normal power consumption | approx. 20 W (main body, XAVC SL 420, QFHD 59.94p, recording with CFexpress Type A memory card, LCD monitor (default), no peripherals connected |
| Maximum power consumption | Approx. 37 W (Main Body, XAVC SI, QFHD 59.94p (S&Q 120 fps), recording with CFexpress Type A memory card (simultaneous recording with 2 cards), LCD monitor (maximum), connected peripherals (SDI, HDMI, USB, wireless devices)) |
| Temperature | in operation: 0 °C to 40 °C in storage: - 20 °C to 60 °C |
| Mass | ca. 175,6 x 201,3 x 371,1 mm |
| Weight | approx. 1.96 kg (body only) approx. 2.4 kg (incl. lens hood, battery (BP-U35), LCD cover, microphone holder, eyecup) |
| Notes | [1] The number of effective pixels depends on the lenses used and the camera settings. [2] Supports Micro USB compatible devices [3] (Configuration method/Access method) WPS or manual /Infrastructure mode. When connecting with smartphones, the camera can always work as a base without a wireless access point. (Security: WEP/WPA-PSK/WPA2-PSK/WPA3-SAE) [4] Models sold in some countries/regions only support IEEE 802.11b/g/n (2.4GHz) wireless LAN. [5] Sony accessory for the hot shoe can be attached. [6] Support only for RTMP/RTMPS |
