ARRI ALEXA 35 - Multicam Extension Set Pro
- Open text field 1: ARRI_K0.0051280
Contact
Our experts are there for you:
Mo. - Fr.: 9am to 6pm
+49 (0) 040/557624-50
Contact form
[email protected]
Company
Properties:
The ARRI Alexa 35 Multicam Extension Set Pro is aimed at existing owners of the ALEXA 35 camera and offers an entry into the live entertainment production market. This set combines the cinematic ARRI look, unrivaled HDR and a new level of creative control in a dockable multicam setup. Included are the FCA-1 Fiber Camera Adapter, the FBS-1 Fiber Base Station, the LLA-1 Large Lens Adapter, the multicam support set with Touchdown baseplate and LPH-1 top handle, a multicamera upgrade license, the TLM-1 tally module and bracket, a camera to adapter cable, and an LBUS cable. The system enables seamless integration into multicamera environments and offers extensive creative options, including 87 predefined looks from the ARRI Look Library. The ALEXA 35 Live also offers specially developed multicam looks for typical live production scenarios. The intuitive operation is via dedicated user interfaces such as the Skaarhoj RCP for maximum creative control and flexibility.
- Dockable Multicam setup
- For owners of the ARRI Alexa 35 camera
- FCA-1 Fiber Camera Adapter, FBS-1 Fiber Base Station, LLA-1 Large Lens Adapter, multicam support set with Touchdown baseplate and LPH-1 top handle, multicamera upgrade license, TLM-1 tally module and bracket, camera to adapter cable, and an LBUS cable
- Seamless integration into Multicam environments
- 87 pre-defined looks from the ARRI Look Library
- Specially developed Multicam looks for typical live production scenarios
Technical Specifications:
- Compatibility: ARRI ALEXA 35 Live camera
- Analog Black Burst, Trilevel In: 1 x BNC
- Passive Reference Loopout: 1 x BNC
- Active Reference Loopout: 1 x BNC
- PoE Support: Yes
- Embedded Audio: Output on all SDI ports
- Mobile App Compatibility: iOS & watchOS
- AC Input Power: 100 to 120 VAC, 50/60 Hz at 7.6 A; 220 to 240 VAC, 50/60 Hz at 3.1 A
Connections:
Input- 3x 12G-SDI BNC
- 4x 3G-SDI BNC
- 2x 3-pin AES3 audio socket, Mini-XLR
- 1x BNC, Timecode
- 5x 12G-SDI BNC
- 1x 12G-SDI BNC Monitor
- 9x 3G-SDI BNC
- 2x HD-SDI BNC
- 1x HD-SDI BNC Monitor
- 1x 3-pin AES3 audio plug, Mini-XLR
- 1x RJ45 1 GB/s
- 1x Neutrik Opticalcon
- 1x 3K Series LEMO (SMPTE)
- 2x RJ45 MGM, Diagnostics
- 1x DB25 GPIO, Intercom/Program Audio/Red/Green Tally
General Product Information:
- Dimensions: 21 x 18 x 14.8 cm (fiber back) / 53.2 x 43.8 x 8.9 cm (base station)
- Weight: 3.36 kg (fiber back), 12.6 kg (base station)
- Operating Temperature: -20 to 45 °C
- Storage Temperature: -30 to 70 °C
- Operating Humidity: 0 to 95%
- Mounting: 1x Proprietary, 1x Rack mount
- Color: Fiber back in Black / Base station in Silver

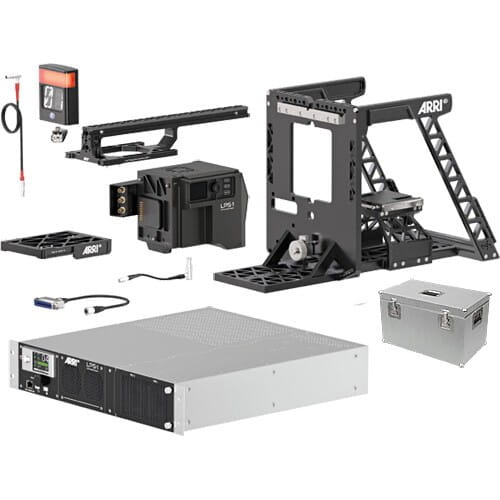

Scope of Delivery:
- 1x LPS-1 Fiber Camera Adapter FCA-1 (KK.0051644)
- 1x LPS-1 Fiber Base Station FBS-1 (K2.0051088)
- 1x Camera to FCA Ethernet Cable (K2.0051067)
- 1x Multicamera Upgrade License
- 1x ALEXA 35 Multicam Support Set (KK.0051232)
- 1x Tally Light Module TLM-1 (K2.0050656)
- 1x RIA-1 Bracket (K2.0039465)
- 1x Cable LBUS - LBUS (0.5 m/1.5 ft) (K2.0006751)
- 1x Large Lens Adapter LLA-1 (K2.0050774)
- 1x LLA-1 Plate for ALEXA 35 (K2.0050777)
- 1x Cable Hirose to Box Lens (K2.0050125)
- 1x Case for LLA-1 (K2.0050793)
