Features:

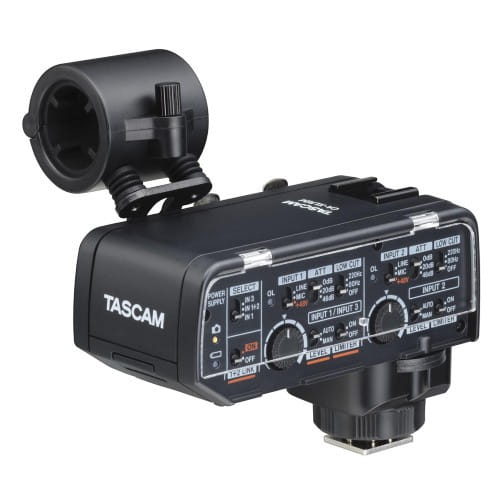

The Tascam XLR-Microphone Adapter for Fujifilm mirrorless cameras is an XLR microphone adapter specifically designed for Fujifilm mirrorless cameras. This high-quality dual-channel microphone adapter and preamplifier allow seamless digital or analog audio transmission, synchronized with the recorded video signal directly via the accessory shoe of the respective compatible camera. With the use of a powerful A/D converter, exceptionally clean, noise-free, and professional sound is ensured. The adapter can connect various microphones or line-level signals, including dynamic and condenser microphones with XLR, standard jack plug, or mini jack. Thanks to convenient switches, operation is user-friendly, while the analog audio output enables direct monitoring with headphones. Additionally, there is the option to attach a battery holder to the bottom of the XLR microphone adapter.
- Adapter for Fujifilm mirrorless cameras with two microphone channels
- No post-synchronization required
- Powerful A/D converter integrated
- Powered via camera accessory shoe (Fujifilm)
- Cold shoe for additional accessories
- Connection options for XLR, jack plug, or mini jack

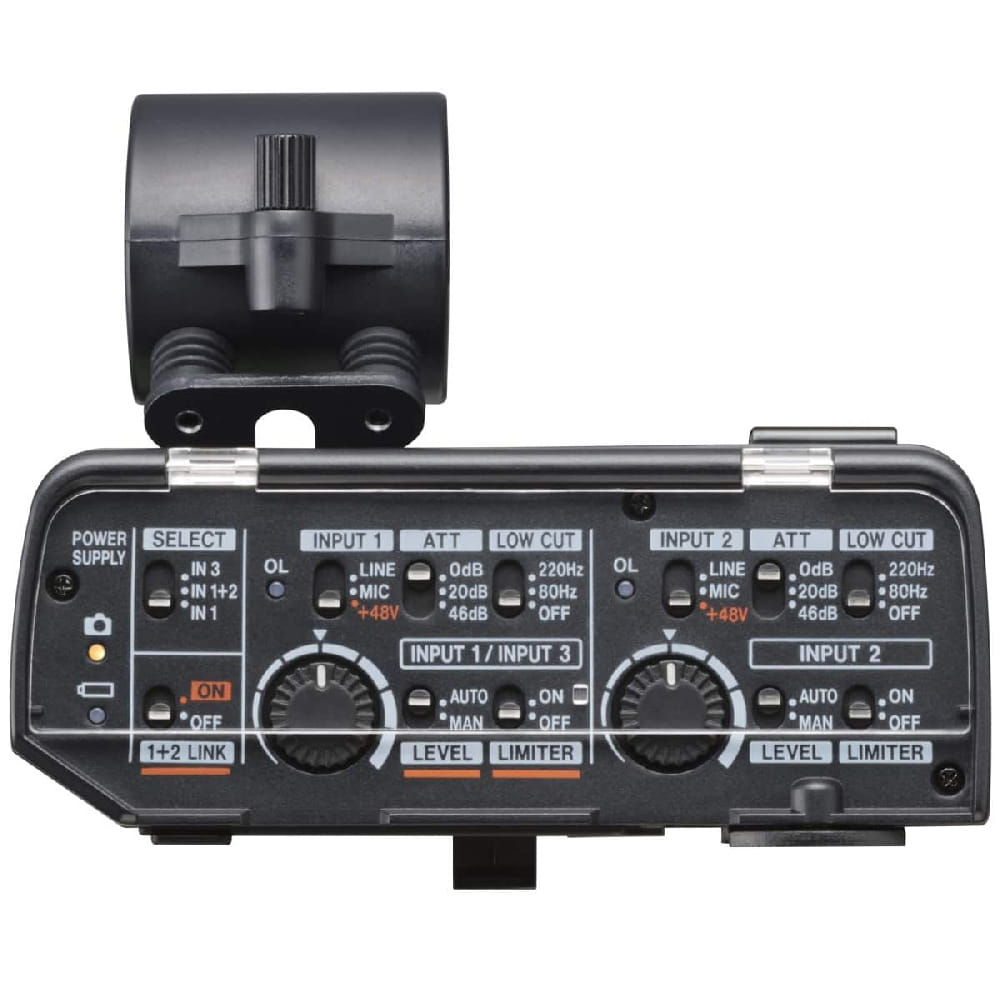

- Auto-level, low-cut filter, and limiter adjustable via switches
- Transparent protective cover included
- Convenient cable holder integrated
Scope of Delivery:
- 1x Tascam XLR-Microphone Adapter for Fujifilm mirrorless cameras
- 1x Adapter for Fujifilm accessory shoe CA-AK1-F (attached to the device)
- 1x Adapter for Analog accessory shoe CA-AK1-AN
- 1x Battery holder
- 1x Microphone holder (attached to the device)
- 1x Stereo mini jack cable (3.5 mm)
Technical Specifications:
A/D Conversion | |
| Sampling Rates | 48 kHz / 96 kHz |
| Bit Depth | 16 Bit, 24 Bit (Sampling rate and bit depth synchronized with the settings of the connected camera) |
| Number of Audio Tracks | 2 |
Analog Audio Inputs | |

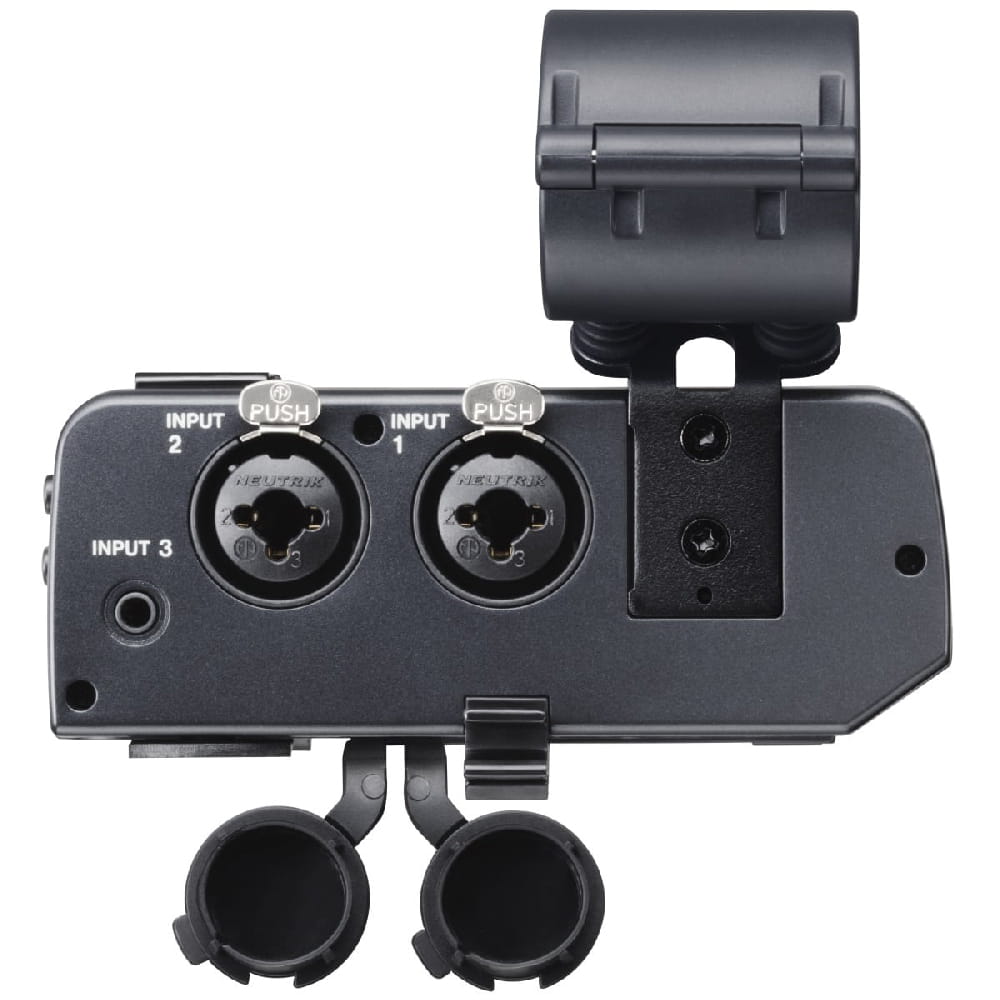

| Microphone Inputs 1, 2 (balanced) | XLR-3-31 (1: Ground, 2: Hot (+), 3: Cold (-)) (Phantom power switchable) |
| Input Impedance | ≥ 2 kΩ |
| Maximum Input Level | +6 dBu (ATT set to 46 dB) |
| Minimum Input Level | -60 dBu (ATT set to 0 dB) |
| Gain Range | 66 dB |
| Line Inputs 1, 2 (balanced) | 6.3 mm TRS jack, 3-pole (Tip: Hot (+), Ring: Cold (-), Sleeve: Ground) (No phantom power) |
| Input Impedance | ≥ 10 kΩ |
| Maximum Input Level | +24 dBu |
| Nominal Input Level | +4 dBu |
| Gain Range | 66 dB |
| Microphone Input 3 (unbalanced) | 3-pole 3.5 mm mini jack (with power supply for small microphones) |
| Input Impedance | ≥ 2 kΩ |
| Maximum Input Level | +6 dBV (ATT set to 46 dB) |
| Minimum Input Level | -60 dBV (ATT set to 0 dB) |
| Gain Range | 66 dB |
| Power Supply for Small Microphones | 2.7 V |
Analog Audio Outputs | |

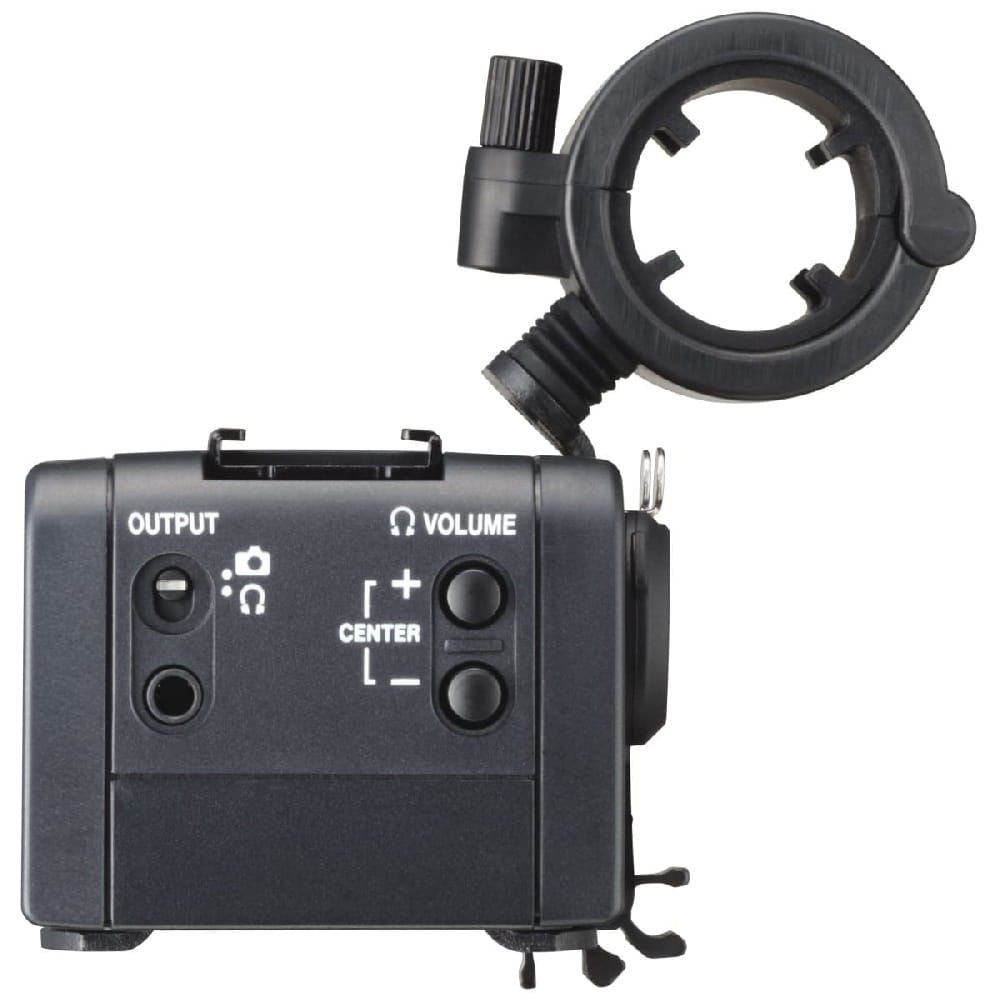

| Headphone/Camera Output | 3.5 mm stereo mini jack |
| Output Voltage | 0.29 Vrms (fixed, headphone setting) 0.5 Vrms (maximum volume setting, camera setting) |
| Headphone Impedance | 16 - 250 Ω |
Audio Performance Specifications | |
| Microphone Preamplifier Equivalent Input Noise | ≤ -120 dBu (150 Ω, GAIN max., A-weighted) |
| Dynamic Range | ≥ 95 dB (22 kHz low-pass filter, A-weighted) |
| Frequency Response (XLR to Digital Input) | 20 Hz – 20 kHz +0.5/−1 dB (Fs 48 kHz) 20 Hz – 40 kHz +0.5/−1 dB (Fs 96 kHz) |
General | |
| Power Supply | 2 AA batteries (Alkaline batteries, NiMH rechargeable batteries, or Lithium batteries) Via the accessory shoe of a compatible camera |
| Power Consumption | 2 W (maximum) |
| Allowable Operating Temperature Range | 0 - 40°C |
| Dimensions (excluding protruding parts) | 88 x 119 x 110 mm |
| Weight | 341 g |
