Properties:

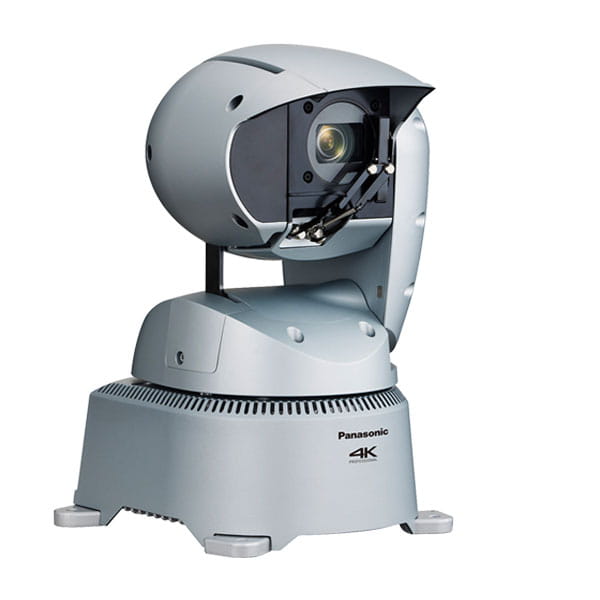

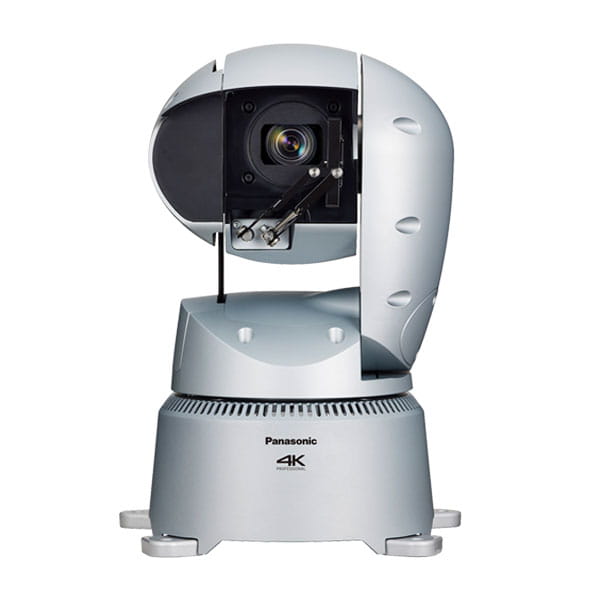

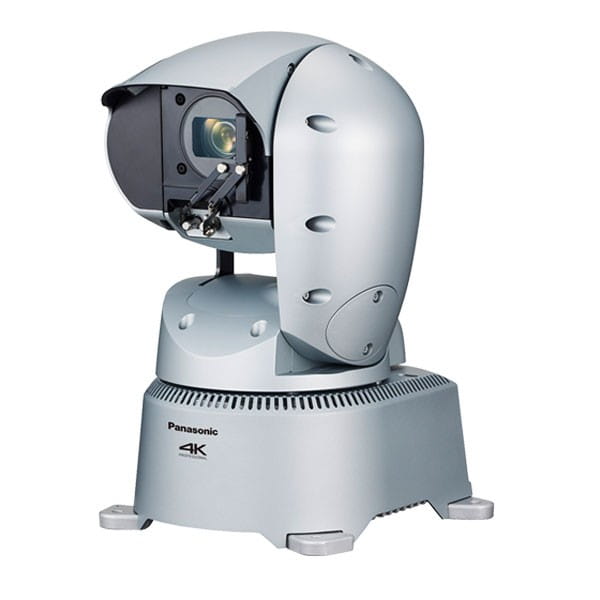

The Panasonic AW-UR100 is a robust 4K pan-tilt camera specifically designed for outdoor use. Equipped with a 1/2.5" MOS sensor and an integrated lens covering a focal length of 4.12 mm to 98.9 mm (equivalent to 25 mm to 600 mm in 35mm format), the camera delivers outstanding image quality under varying lighting conditions. The aperture range extends from F1.8 to F4.0, ensuring optimal results even in low-light conditions. The camera features a 24x optical zoom and an additional 10x digital zoom, making it ideal for capturing detailed shots from a distance. An integrated three-part image stabilization system, consisting of optical image stabilization (OIS), electronic roll correction (E.I.S.), and dynamic pan/tilt image stabilization (D.I.S.S.), ensures sharp images even in challenging conditions. The camera offers comprehensive 4K resolution up to 2160p60 via SDI as well as FullHD up to 1080p60, and is equipped with multiple interfaces, including 3G-SDI, 12G-SDI, and an SFP+ standard (single fiber) output. Various IP protocols such as NDI, SRT, and RTMP are supported, allowing for flexible and efficient data transmission. The camera is also compatible with the FreeD protocol for AR/VR applications. The AW-UR100 is specifically designed for harsh environments and can withstand extreme weather conditions, including corrosive salt air, rain, snow, and intense sunlight. The camera is fully sealed to keep out windblown dust and sand. An integrated defroster ensures that the lens remains free of frost, ice, and condensation even at temperatures as low as -15°C. In addition, the camera is equipped with an integrated wiper for the front lens, ensuring clear visibility in adverse weather conditions. Overall, the Panasonic AW-UR100 offers an ideal combination of ruggedness, advanced technology, and versatility, making it particularly suitable for demanding outdoor shoots.
- 1/2.5" 4K MOS Sensor
- Focal length: 4.12 mm - 98.9 mm (25 mm - 600 mm in 35mm equivalent)
- Aperture range: F1.8 - F4.0
- 24x optical zoom, 10x digital zoom
- Integrated optical filters: 1/4, 1/16, 1/64, IR Through (for night vision)
- Field of view: 74.1° (wide) to 3.3° (tele) horizontal
- Output formats: 4K up to 2160p60, FullHD up to 1080p60 via SDI
- Interfaces: 3G-SDI, 12G-SDI, SFP+ (single fiber), Ethernet for IP control
- IP transmission: Supports NDI, SRT, RTMP, NDI|HX
- Compatible with FreeD protocol for AR/VR
- Integrated cropping function
- Triple image stabilization: OIS, EIS, D.I.S.S.
- Designed for outdoor use with defroster down to -15°C and integrated wiper
Scope of Delivery:
- 1 x Panasonic AW-UR100 Camera
Technical Specifications:
| Sensor | 1/2.5-type (1/2.5") 4K MOS Effective pixels: 3,864×2,196 = approx. 8,490,000 pixels |
| Lens | Motorized optical 24x Zoom F1.8 ~ F4.0 (f=4.12 mm ~ 98.9mm, 35mm equivalent: 25.0mm ~ 600.0mm) i.Zoom(UHD:28x, FullHD:36x) D.Extender (1.4x, 2x) Digital zoom 10x |
| Optical filters | Through, 1/4, 1/16, 1/64, IR-Through (IR Through is used as "Night Mode") |
| Conversion lens | Not supported |
| Viewing angle range | Horizontal: 74.1° (wide) - 3.3° (tele) Vertical: 46.0° (wide) - 1.9° (tele) Diagonal: 81.8° (wide) - 3.8° (tele) |
| Focus distance | Entire zoom range: 1200 mm Wide angle range: 100 mm |
| Optical color separation system | 1MOS |
| Minimum illumination | 3 Lux (F1.8, 59.94p, 50IRE, +42dB, without accumulation) |
| Horizontal resolution | 1,500 TV Type (middle range, UHD mode, wide) |
| Gain selection | Auto, 0dB ~ 36dB *can be set in 1dB increments. (Super Gain function equipped: 37 dB to 42 dB) |
| Frame Mix | Auto, 0dB, 6dB, 12dB, 18dB, 24dB *If the format is set to 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/25p, Frame Mix cannot be set. |
| Synchro Scan |
|
| Gamma | HD/NORMAL/CINEMA1/CINEMA2/Still like *Black Gamma is not supported |
| Electronic shutter speed | 59.94p / 59.94i mode 29.97p mode 23.98p / 24p mode 50p / 50i mode |
| White balance | ATW, 3200K, 5600K AWB-A, AWB-B VAR (selectable between 2000 K and 15000 K by specifying a value) (ATW Speed 3-stage variables.) |
| Chroma value variability | OFF, -99% ~ 99% |
| Output format | [4K Format] [HD Format] |
| Shine file | Full Auto, Scene1, Scene2, Scene3 |
| Synchronization system | Internal/external synchronization (BBS/Tri-Level-Sync) |

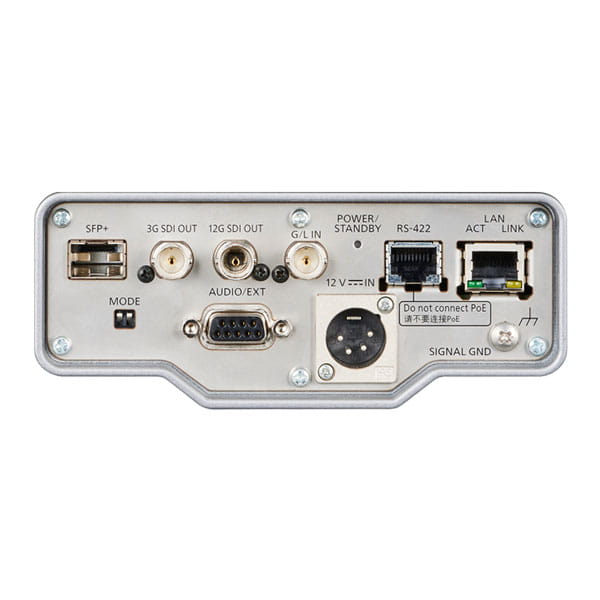

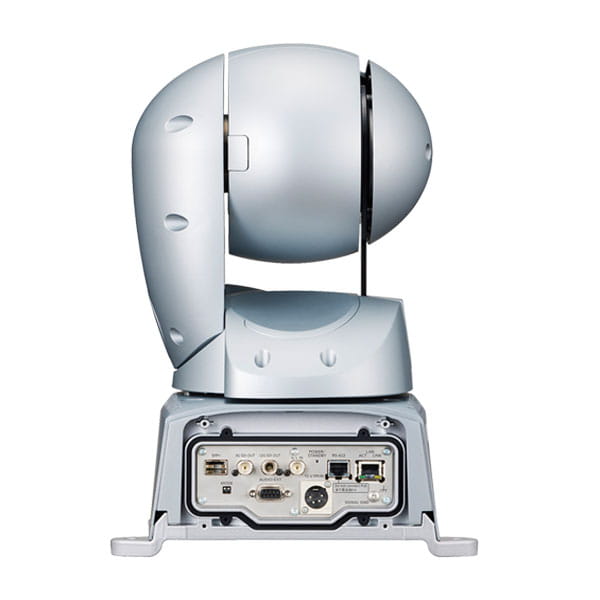

Inputs | |
| Power supply | DC 12 V |
| G/L In | BNC, BBS (Black Burst Sync), supports Tri-Level-Sync) |
Outputs | |
| SFP+ | SFP+ standard (single fiber) *This device does not support input via optical signals |
| 12G SDI OUT | 1x BNC SMPTE2082-1, SMPTE292M / 75 Ω |
| 3G SDI OUT1 | 1x BNC SMPTE424M / SMPTE292M / 75 Ω) |
| LAN | LAN port for IP control (RJ-45) |
| IP connection cable | If you have a PoE++ Ethernet hub LAN cable *1 (Category 5e or higher, straight cable) Max 100 m If you do not have a PoE++ Ethernet hub LAN cable*1 (Category 5e or higher, straight cable) Max 100 m *1 STP (Shielded Twisted Pair) recommended *2 Category 6 or higher used for 4K video transmission. |
| AW protocol connection cable | LAN cable *(Category 5e or higher, straight cable) Max 1000 m *STP (Shielded Twisted Pair) recommended |

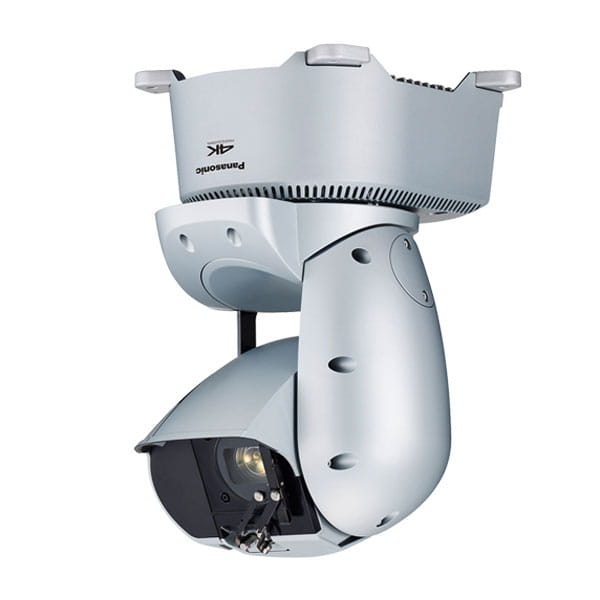

| Mounting method | Free-standing (desktop) or hanging |
| Pan/tilt speed | Speed range: 0.08 °/s ~60°/s Normal mode) *3 speed modes installed Normal: 60°/s, Fast1: 90°/s, Fast2: 180°/s |
| Pan range | ±175° |
| Tilt range | –30° - 210° |
| Vibration correction | D.I.S.S. (Dynamic Image Stabilizing System) |
IP Streaming | |
| Image streaming mode | JPEG (MJPEG), H.264, H.265, NDI/HX, High Bandwidth NDI |
| Streaming resolutions | 3840x2160, 1920x1080, 1280x720, 640x360, 320x180 |
| Image transmission setting (JPEG) | Frame rate: Max 30fps *No bit rate specified |
| Image transmission setting (H.264) | Transmission type: Unicast port (AUTO) Transmission mode: CBR, VBR Frame rate Maximum to minimum bit rate |
| Image transmission setting (H.265) | Transmission type: Unicast port (AUTO) Transmission mode: CBR, VBR Frame rate Maximum to minimum bit rate |
| Supported protocol | Network Protocol: Transmission Protocol: Application Protocol: Video Streaming Protocol: External Device Cooperation Protocol: FreeD, TSL5.0, SNMP |
| Audio compression type | AAC-LC, 48kHz/16bit/2ch |
NDI (High Bandwidth NDI, NDI/HX Ver.2) | |
| Image resolution (NDI|HX Ver.2) |
|
| Output format (NDI with high bandwidth) | [4K Format] [HD Format] |
| Image streaming setting | NDI with high bandwidth NDI/HX: Frame rate: Maximum bitrate |
| Audio compression type 2 | Audio compression type 2 |
| F-number display | Displayed on the sides of the AW-RP150GJ and AW-RP60GJ |
| NDI | High bandwidth NDI, NDI|HX included as standard |
| RS-422 | CONTROL IN RS422A (RJ‑45) |
| Privacy mode | The lens surface is facing backward when standing (ON/OFF) |
| IP menu display | Supported *Not synchronized with SDI-OUT |
| VR (FreeD) (IP/RS422) | Supported |
General | |
| Power requirements | DC12V~21.8±10% (10.8V~24.0V) |
| Operating temperature | -15℃ to 45℃ (Preheating is required if -5 °C or less) |
| PoE++ | IEEE802.3bt compliant: DC42-57V (Software authentication (LLDP) supported)) |
| Storage temperature | –20 °C to +55 °C |
| Operating environment humidity | 10% to 100%, non-condensing |
